Trojan GLIDE CYCLE 220 User Manual

8
10317

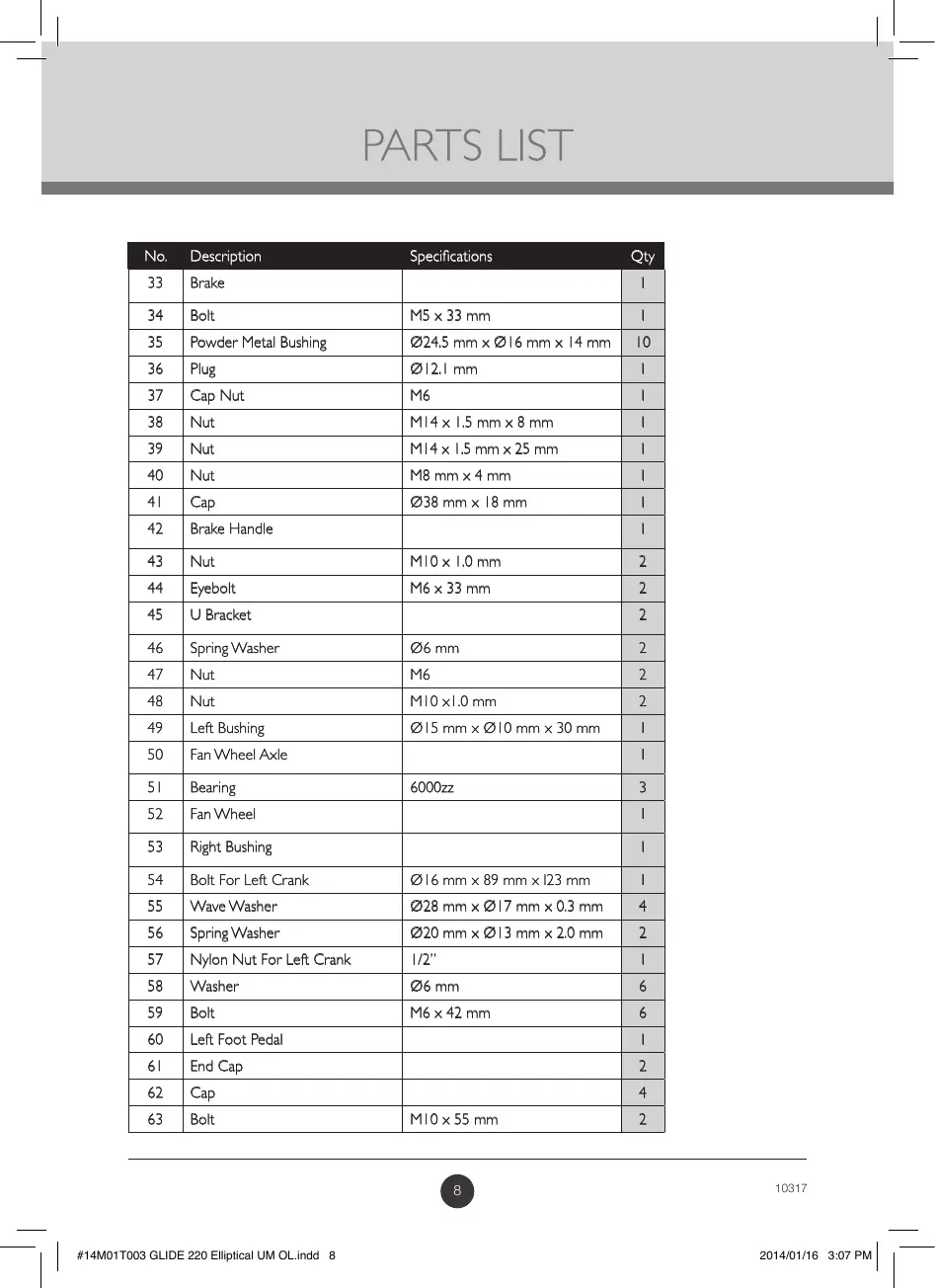

No. Description Specications Qty
33 Brake 1
34 Bolt M5 x 33 mm 1
35 Powder Metal Bushing Ø24.5 mm x Ø16 mm x 14 mm 10
36 Plug Ø12.1 mm 1
37 Cap Nut M6 1
38 Nut M14 x 1.5 mm x 8 mm 1
39 Nut M14 x 1.5 mm x 25 mm 1
40 Nut M8 mm x 4 mm 1
41 Cap Ø38 mm x 18 mm 1
42 Brake Handle 1
43 Nut M10 x 1.0 mm 2
44 Eyebolt M6 x 33 mm 2
45 U Bracket 2
46 Spring Washer Ø6 mm 2
47 Nut M6 2
48 Nut M10 x1.0 mm 2
49 Left Bushing Ø15 mm x Ø10 mm x 30 mm 1
50 Fan Wheel Axle 1
51 Bearing 6000zz 3
52 Fan Wheel 1
53 Right Bushing 1
54 Bolt For Left Crank Ø16 mm x 89 mm x l23 mm 1
55 Wave Washer Ø28 mm x Ø17 mm x 0.3 mm 4
56 Spring Washer Ø20 mm x Ø13 mm x 2.0 mm 2
57 Nylon Nut For Left Crank 1/2” 1
58 Washer Ø6 mm 6
59 Bolt M6 x 42 mm 6
60 Left Foot Pedal 1
61 End Cap 2
62 Cap 4
63 Bolt M10 x 55 mm 2
