Trojan GLIDE CYCLE 220 User Manual

9
10317

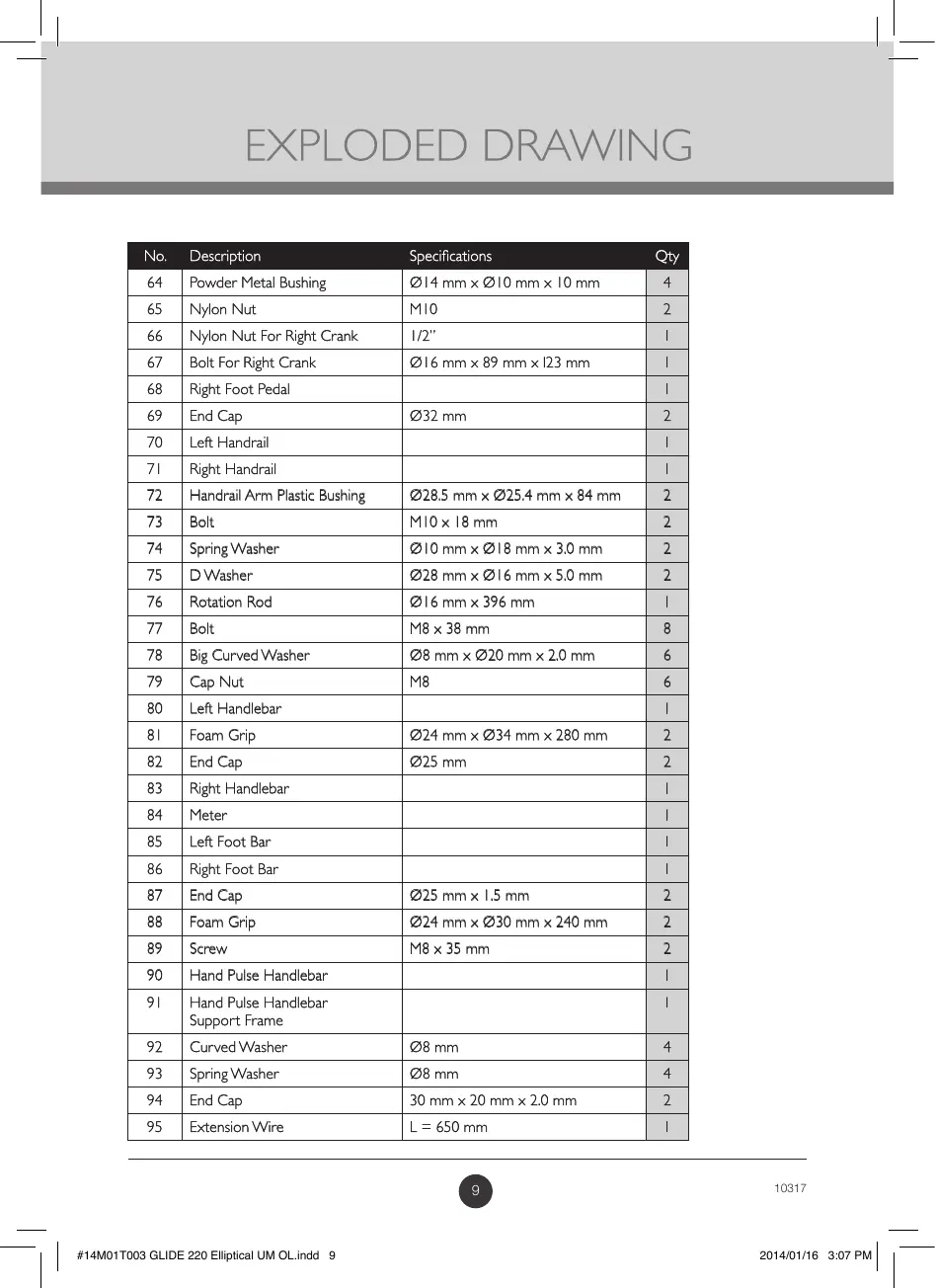

No. Description Specications Qty
64 Powder Metal Bushing Ø14 mm x Ø10 mm x 10 mm 4
65 Nylon Nut M10 2
66 Nylon Nut For Right Crank 1/2” 1
67 Bolt For Right Crank Ø16 mm x 89 mm x l23 mm 1
68 Right Foot Pedal 1
69 End Cap Ø32 mm 2
70 Left Handrail 1
71 Right Handrail 1
72 Handrail Arm Plastic Bushing Ø28.5 mm x Ø25.4 mm x 84 mm 2
73 Bolt M10 x 18 mm 2
74 Spring Washer Ø10 mm x Ø18 mm x 3.0 mm 2
75 D Washer Ø28 mm x Ø16 mm x 5.0 mm 2
76 Rotation Rod Ø16 mm x 396 mm 1
77 Bolt M8 x 38 mm 8
78 Big Curved Washer Ø8 mm x Ø20 mm x 2.0 mm 6
79 Cap Nut M8 6
80 Left Handlebar 1
81 Foam Grip Ø24 mm x Ø34 mm x 280 mm 2
82 End Cap Ø25 mm 2
83 Right Handlebar 1
84 Meter 1
85 Left Foot Bar 1
86 Right Foot Bar 1
87 End Cap Ø25 mm x 1.5 mm 2
88 Foam Grip Ø24 mm x Ø30 mm x 240 mm 2
89 Screw M8 x 35 mm 2
90 Hand Pulse Handlebar 1
91 Hand Pulse Handlebar
Support Frame
1
92 Curved Washer Ø8 mm 4
93 Spring Washer Ø8 mm 4
94 End Cap 30 mm x 20 mm x 2.0 mm 2
95 Extension Wire L = 650 mm 1
#14M01T003 GLIDE 220 Elliptical UM OL.indd 9 2014/01/16 3:07 PM
