ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded drawings
on pages 13 - 16.
• Notice: Some of the smaller parts may be pre-tted to larger components, please ensure you check carefully
before contacting us regarding any missing parts.

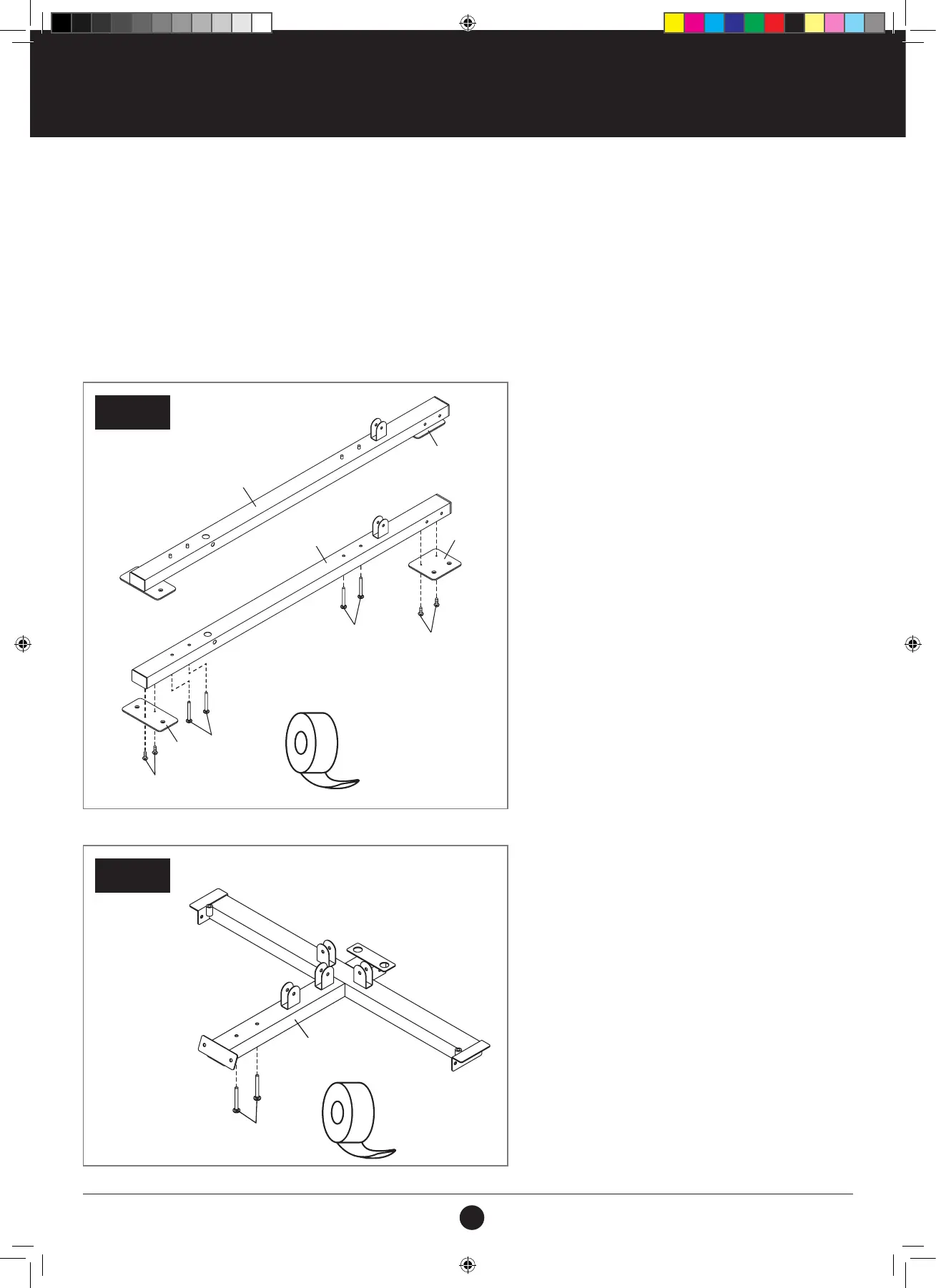

STEP 1:
1. Attach a Stabiliser Foot (50) to a Base (1)
with two M4 x 19 mm Self-tapping Screws
(82).
2. Orient a Large Base Foot (51) as shown.
3. Attach the Large Base Foot (51) to the
Base (1) with two M4 x 19 mm Self-tapping
Screws (82).
4. Then, insert four M10 x 65mm Carriage Bolts
(83) upward through the Base (1). Apply tape
over the bolt heads to hold them in place.
5. Repeat this step with the other Base (1).
6. Make sure that the Large Base Foot (51) is
oriented as shown.
STEP 1
1
1
82
51
51
82
50
83
83
STEP 2
STEP 2:
1. Insert two M10 x 65 mm Carriage Bolts (83)
up through the Centre Base (2).
2. Place tape over the bolt heads to hold them
in place.
83
2
1
1
82
82
50
51
51
82
83 - Tape
83 - Tape
2
