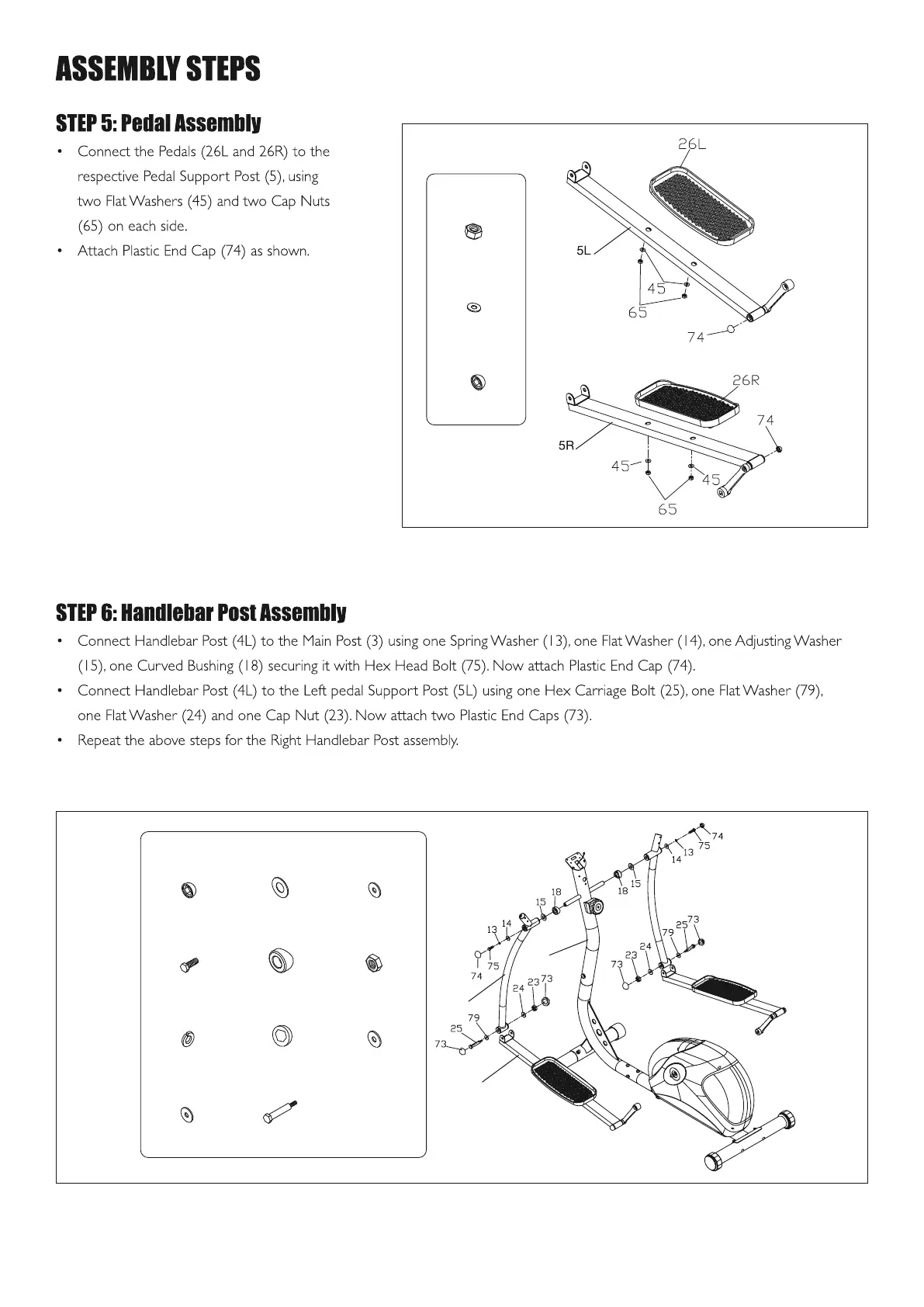

Trojan VERTIGO 250 - Step 5: Pedal Assembly; Step 6: Handlebar Post Assembly

10211-8
Fixings
Part No. 65 x 4
Cap Nut (M6)
Pre-installed
Part No. 45 x 4
Flat Washer (Ø12 x Ø6.5 x 1.5T)
Pre-installed
Part No. 74 x 2
Plastic End Cap (M8)
Fixings
Part No. 74 x 2
Plastic End Cap (M8)
Part No. 75 x 2
Hex Head Bolt (M8 x 15)
Part No. 13 x 2
Spring Washer (M8)
Part No. 14 x 2
Flat Washer (Ø32 x Ø8.4 x 2.0T)
Part No. 15 x 2
Adjusting Washer (Ø32 x Ø19 x 0.5T)
Part No. 18 x 2
Curved Bushing (Ø32 x Ø19 x 13.5H)
Part No. 73 x 4
Plastic End Cap (M10)
Part No. 25 x 2
Hex Carriage Bolt (Ø12 x M10 x 1.5P x 80)
Part No. 79 x 2
Flat Washer (Ø24 x Ø13 x 1.5T)
Part No. 23 x 2
Cap Nut (M10 x 1.5P x 10H)
Part No. 24 x 2
Flat Washer (Ø20 x Ø11 x 2.0T)
Fixings
Part No. 65 x 4
Cap Nut (M6)
Pre-installed
Part No. 45 x 4
Flat Washer (Ø12 x Ø6.5 x 1.5T)
Pre-installed
Part No. 74 x 2
Plastic End Cap (M8)
Fixings
Part No. 74 x 2
Plastic End Cap (M8)
Part No. 75 x 2
Hex Head Bolt (M8 x 15)
Part No. 13 x 2
Spring Washer (M8)
Part No. 14 x 2
Flat Washer (Ø32 x Ø8.4 x 2.0T)
Part No. 15 x 2
Adjusting Washer (Ø32 x Ø19 x 0.5T)
Part No. 18 x 2
Curved Bushing (Ø32 x Ø19 x 13.5H)
Part No. 73 x 4
Plastic End Cap (M10)
Part No. 25 x 2
Hex Carriage Bolt (Ø12 x M10 x 1.5P x 80)
Part No. 79 x 2
Flat Washer (Ø24 x Ø13 x 1.5T)
Part No. 23 x 2
Cap Nut (M10 x 1.5P x 10H)
Part No. 24 x 2
Flat Washer (Ø20 x Ø11 x 2.0T)
5L
4L
3
