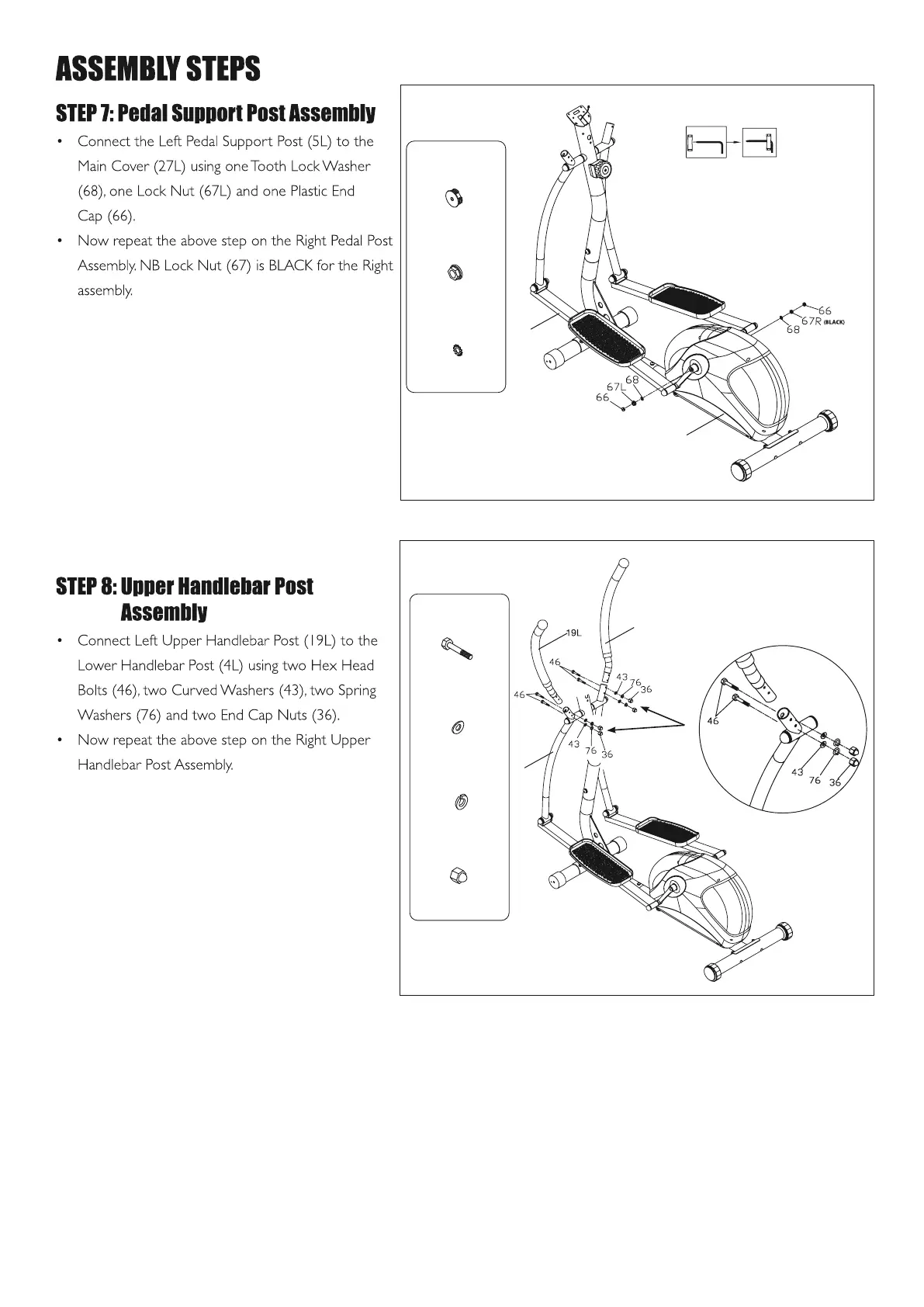

Trojan VERTIGO 250 - Step 7: Pedal Support Post Assembly; Step 8: Upper Handlebar Post Assembly

10211-9
Fixings
Part No. 46 x 4
Hex Head Bolt (M6 x 1.25P x 38)
Part No. 43 x 4
Curved Washer (Ø12 x Ø6.4 x 1.5T)
Part No. 76 x 4
Spring Washer (M6)
Part No. 36 x 4
End Cap Nut (M6)
Fixings
Part No. 66 x 2
Plastic End Cap
Part No. 67 (R-Black / L) x 1 set
Lock Nut (M10 x 1.25P x 7H)
Part No. 68 x 2
Tooth Lock Washer
Fixings
Part No. 46 x 4
Hex Head Bolt (M6 x 1.25P x 38)
Part No. 43 x 4
Curved Washer (Ø12 x Ø6.4 x 1.5T)
Part No. 76 x 4
Spring Washer (M6)
Part No. 36 x 4
End Cap Nut (M6)
Fixings
Part No. 66 x 2
Plastic End Cap
Part No. 67 (R-Black / L) x 1 set
Lock Nut (M10 x 1.25P x 7H)
Part No. 68 x 2
Tooth Lock Washer
27L
5L
4L
19R
