Trolex XD One - Device Components

11
The XD One can be rapidly installed to suit a variety of applications. The particulate sensor is located
inside the main housing that provides isolation and ingress protection between the particle flow path
and control circuits.
The following details highlight the main features of XD One Personal Dust Monitor.

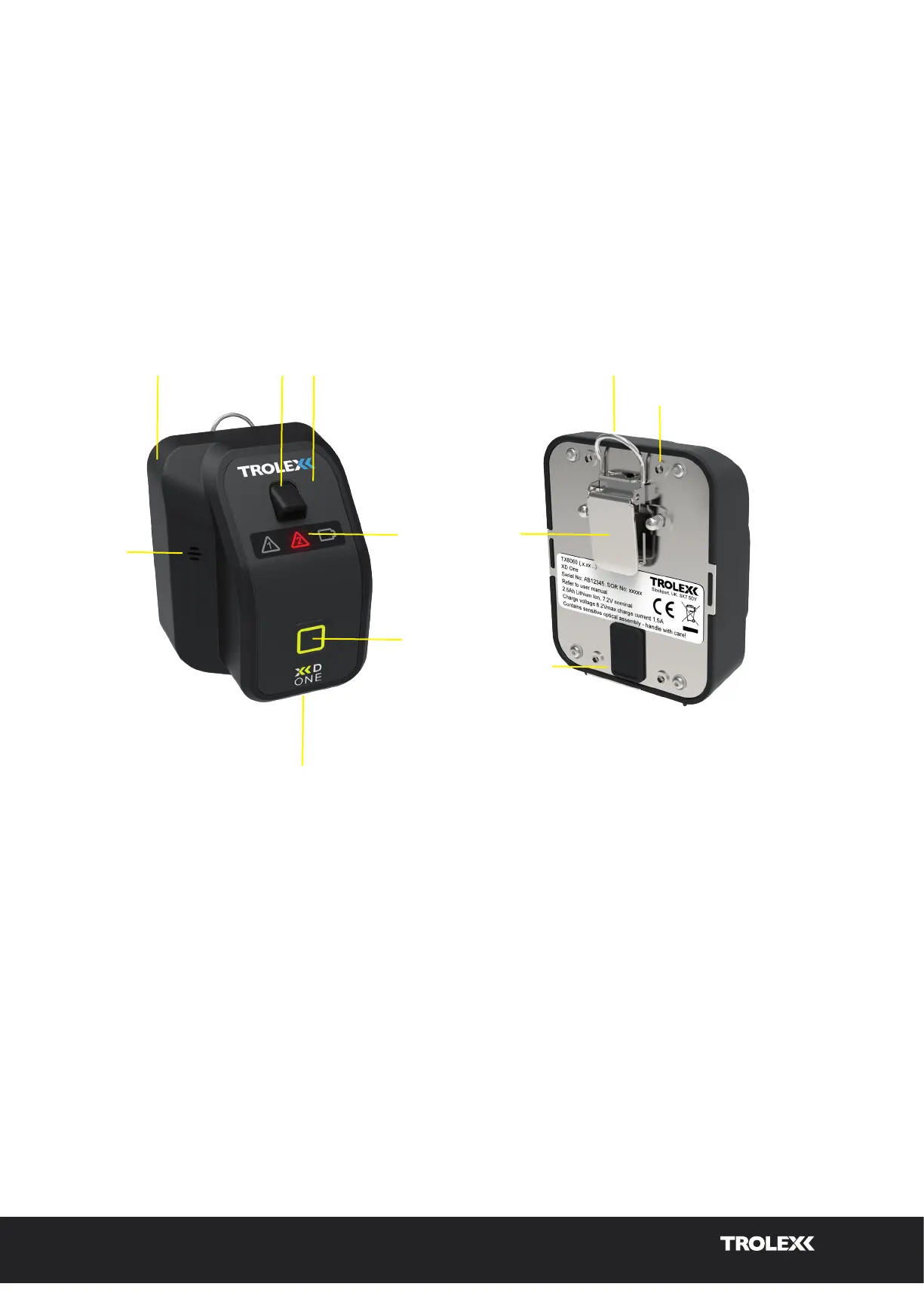

6. DEVICE COMPONENTS
1. Main housing
2. Air inlet
3. Function membrane
4. Sounder outlet
5. LED user interface
6. On/o function switch
7. Air outlet
8. Mounting loop
9. Threaded mounting
10. Aligator clip
11. USB port
1.
2.
3.
5.
7.
6.
4.
8.
9.
10.
11.
