The XD One has been designed around the use of a single press switch and three illumination
icons to indicate on-device warnings, battery levels and operating modes.
User interface icon display

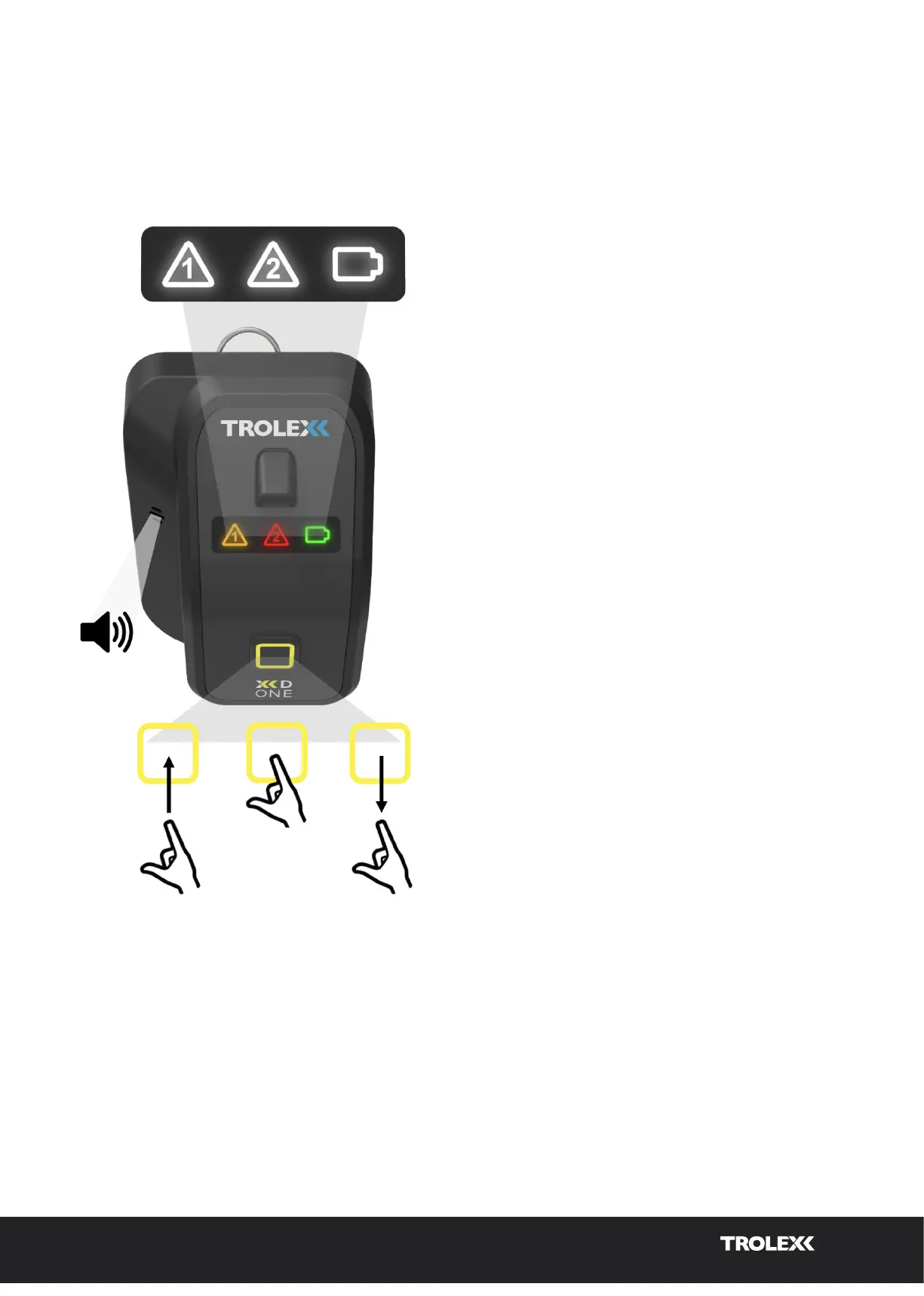

The XD One has a simple tri-icon graphical
interface which is used to communicate on-
device warnings, sampling modes, battery
indication and a device heartbeat.
Audio alarm
The built-in alarm sounder provides audio
warnings at 85 db in conjunction with the
illuminated icons alerting users to alarm
setpoints.
Power/function button
A single power and function button is used
on the XD One for device power on/o, alarm
acknowledgement and device self-test.
