TrolMaster Aqua-X - Installation

03

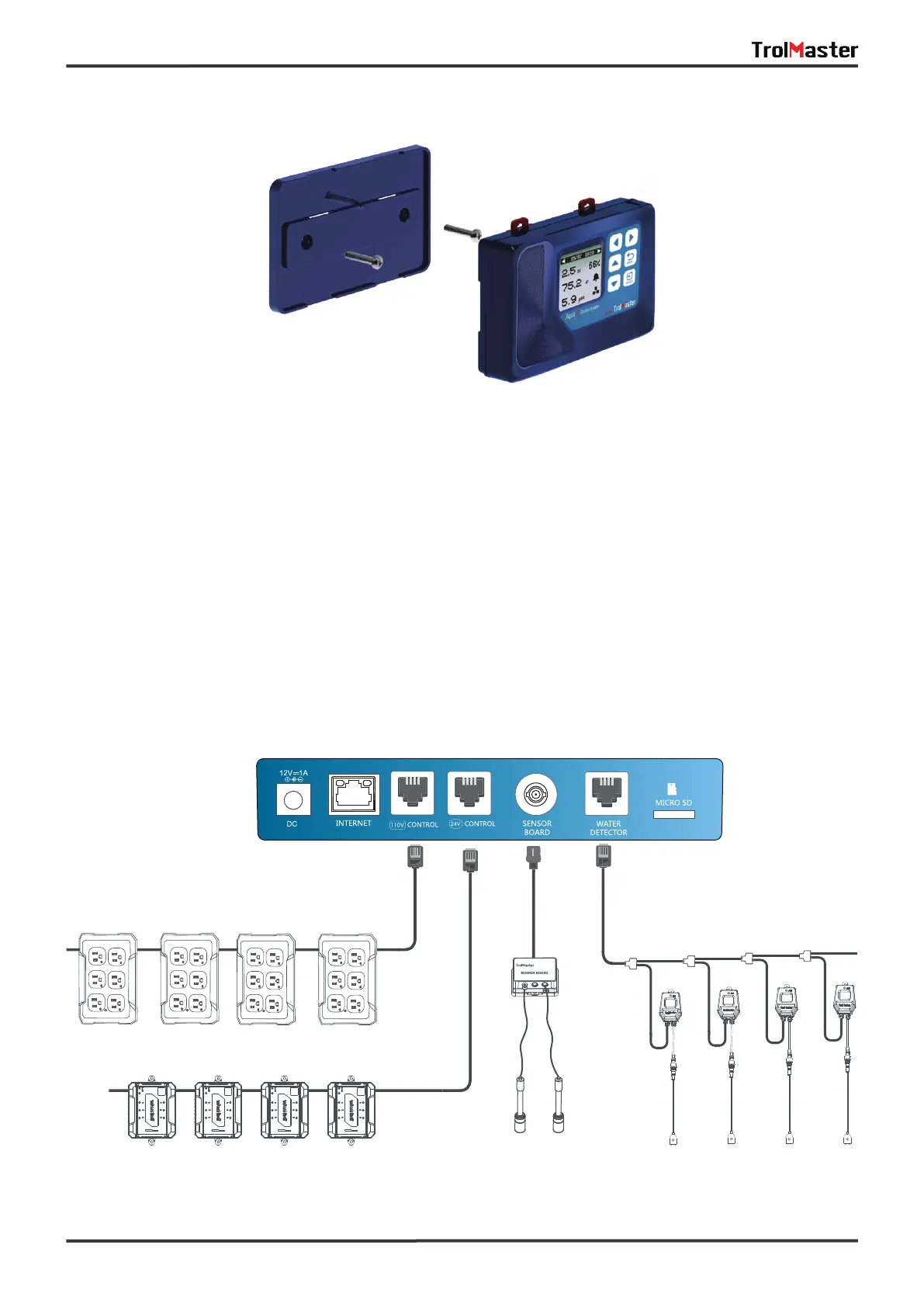

Determine where to locate the main controller. The controller comes with a simple to use DlN type bracket.
Pull the 4 tabs outward to release the bracket from the unit, mount the bracket to a wall or surface, place the
unit back on the bracket and press the 4 tabs back in to lock the unit in place.
INSTALLATION
CONNECTIONS
110V Control Boards
pH
Sensor
EC/TEMP
Sensor
Water Detectons
24V Control Boards
