this process until all ballasts (fixtures) are connected to the LINE 1. Connect
more lights through the LINE 2 port. Same procedures applied for LINE 1.

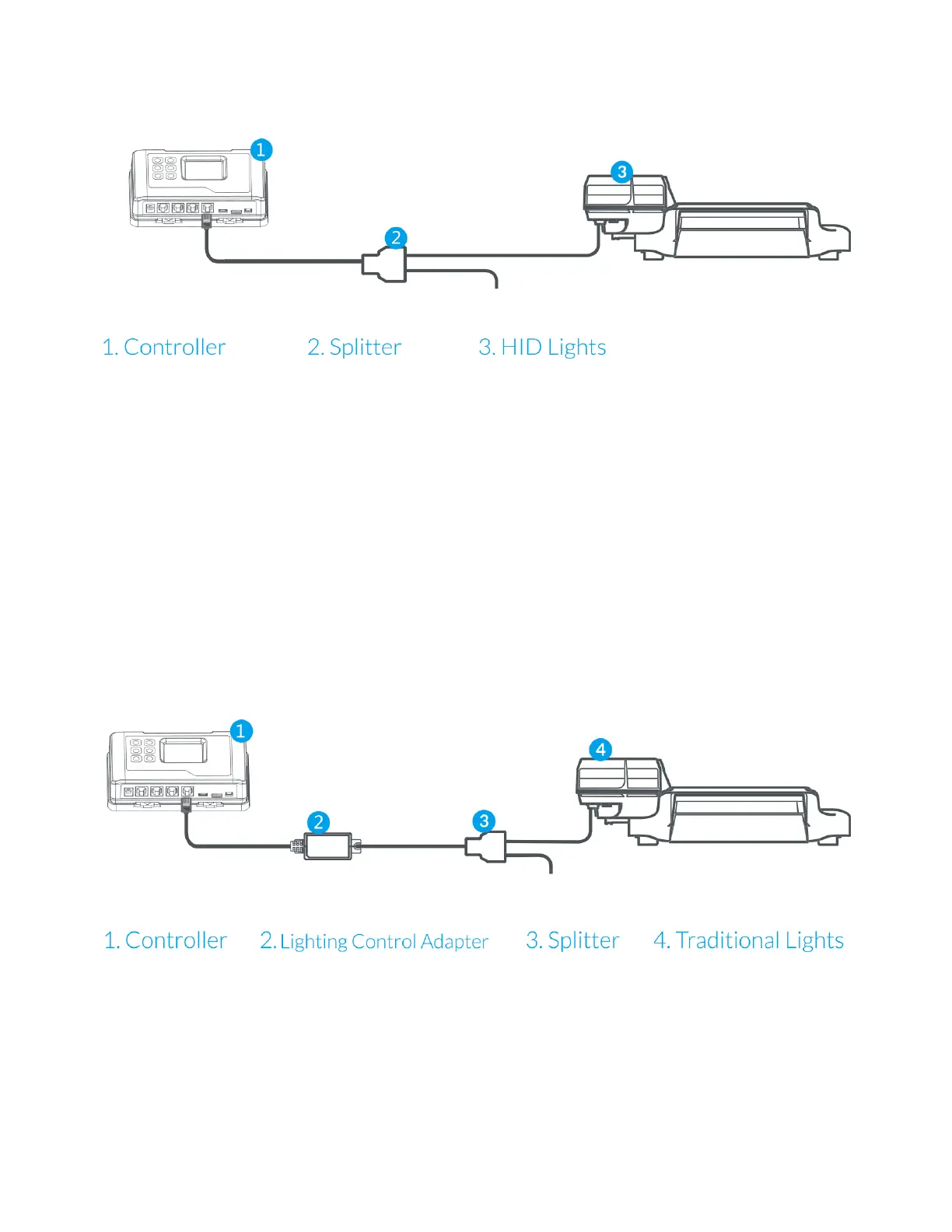

b) For Traditional Lights
If connected to traditional lights which are controlled by analog (0-10v) such as
Gavita fixtures, a lighting control adapter (signal converter) is necessary to
convert the digital signal into analog signal. The connection is similar as above
but with a signed converter connected between ballast and controller. First,
connect the signal converter to the LINE 1 or LINE 2 connector and then
connect to a splitter on the other end. Finally, use another RJ12 cable to
connect between the splitter and the analog ballast. See the connection
diagram.
Each line can be set up to be a "staged" dimming zone. In other words, each
zone has its own independent dimming temperature setting as well as the
dimming actiaon. Having 2 lines allows the user to create multiple lighting
layouts (and dimming sequences) based on their individual preferences. Some
examples are shown below.
