1901 Bay Boat • Owner’s Manual Supplement Chapter 2: Locations

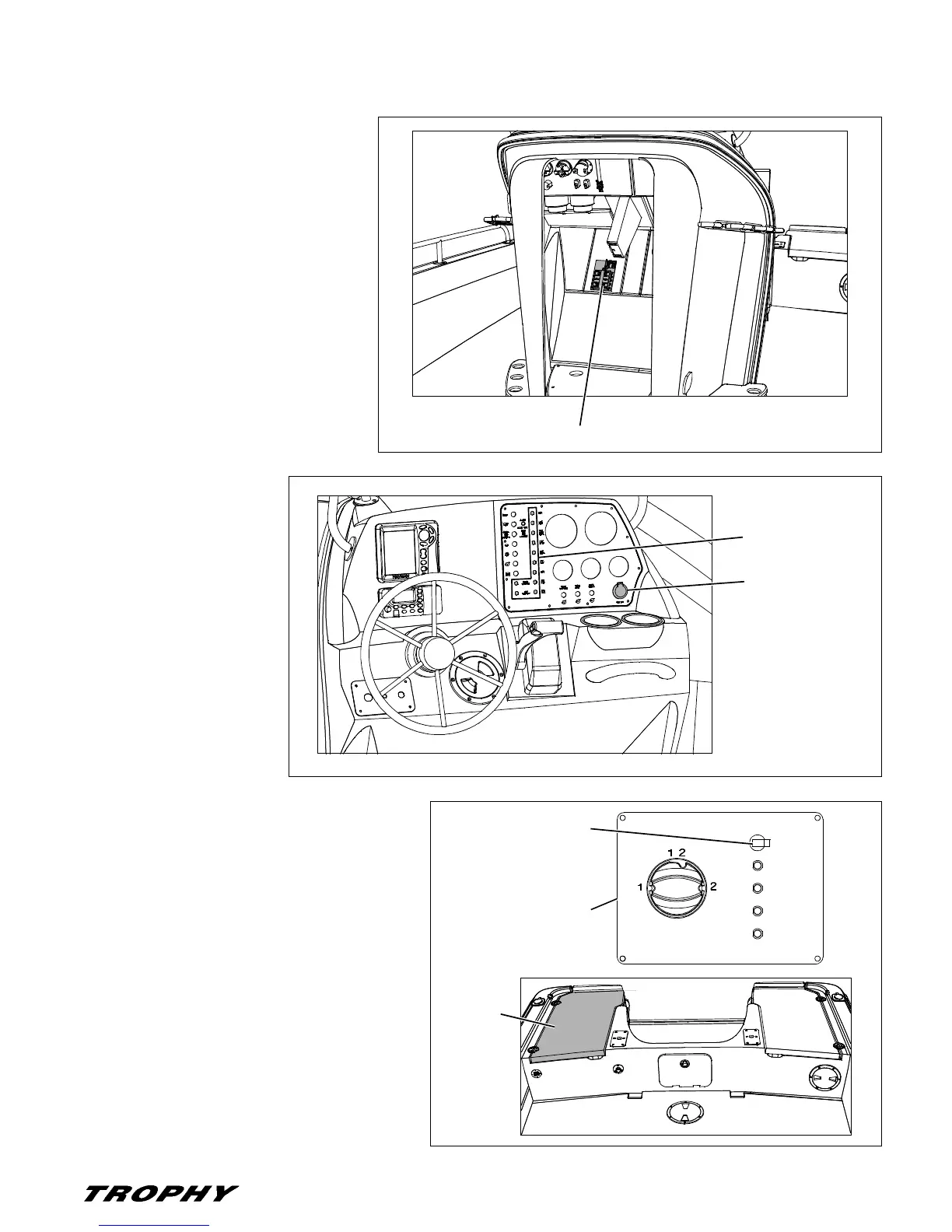

Component Locations
12-Volt DC Accessory Fuse Block:
• Located behind the dash.
• Access through the door on the for-
ward end of the helm console.
12-Volt DC Accessory
Outlet: Located at the helm.
12-Volt DC Push-to-Reset
Circuit Breakers: Located
at the helm.
12-Volt DC Main Circuit Breaker:
• Located on the battery switch panel.
• Access to the battery switch panel is through
the starboard aft deck hatch.
FUSE BLOCK
12-VOLT
DC OUTLET
12-VOLT DC
PUSH-TO-RESET
CIRCUIT BREAKERS
DECK
HATCH
DC MAIN
ACCESSORY
FORWARD BILGE PUMP
AFT BILGE PUMP
CO MONITOR
&
OFF
12-VOLT DC MAIN
CIRCUIT BREAKER
BATTERY SWITCH
PANEL
