1901 Bay Boat • Owner’s Manual Supplement Chapter 9: Electrical System
Electrical Routings

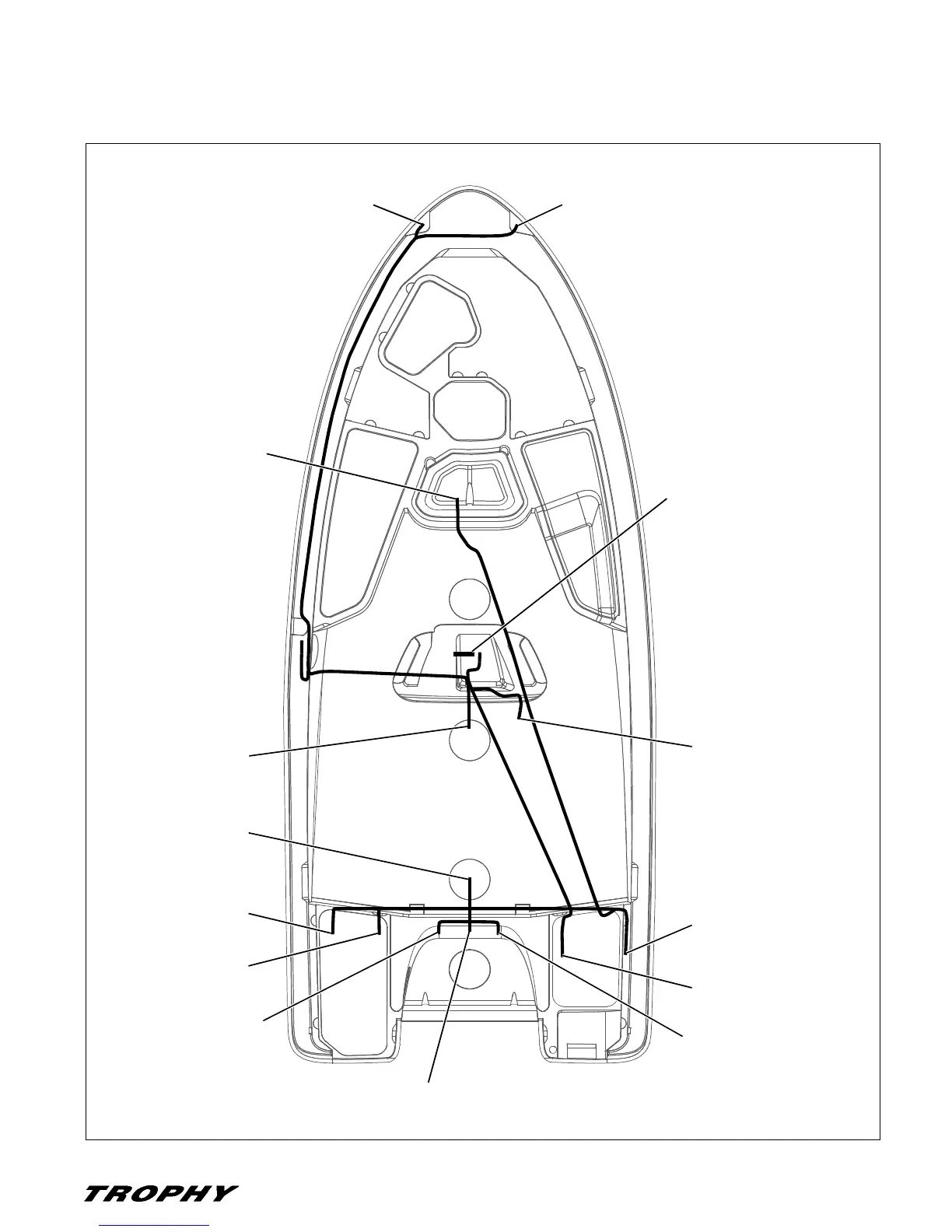

12-Volt DC Deck Harness
BOUNDING BUSS BAR
PORT RUNNING LIGHT
STARBOARD RUNNING LIGHT
FORWARD BAITWELL LIGHT
FUEL SENDER
DASH PLUG
AFT BAITWELL LIGHT
COURTESY LIGHT
BILGE PUMP
AFT BAITWELL PUMP
SEAWATER WASHDOWN PUMP
FORWARD BAITWELL PUMP
COURTESY LIGHT
BATTERY SWITCH
