1901 Bay Boat • Owner’s Manual Supplement Chapter 6: Plumbing

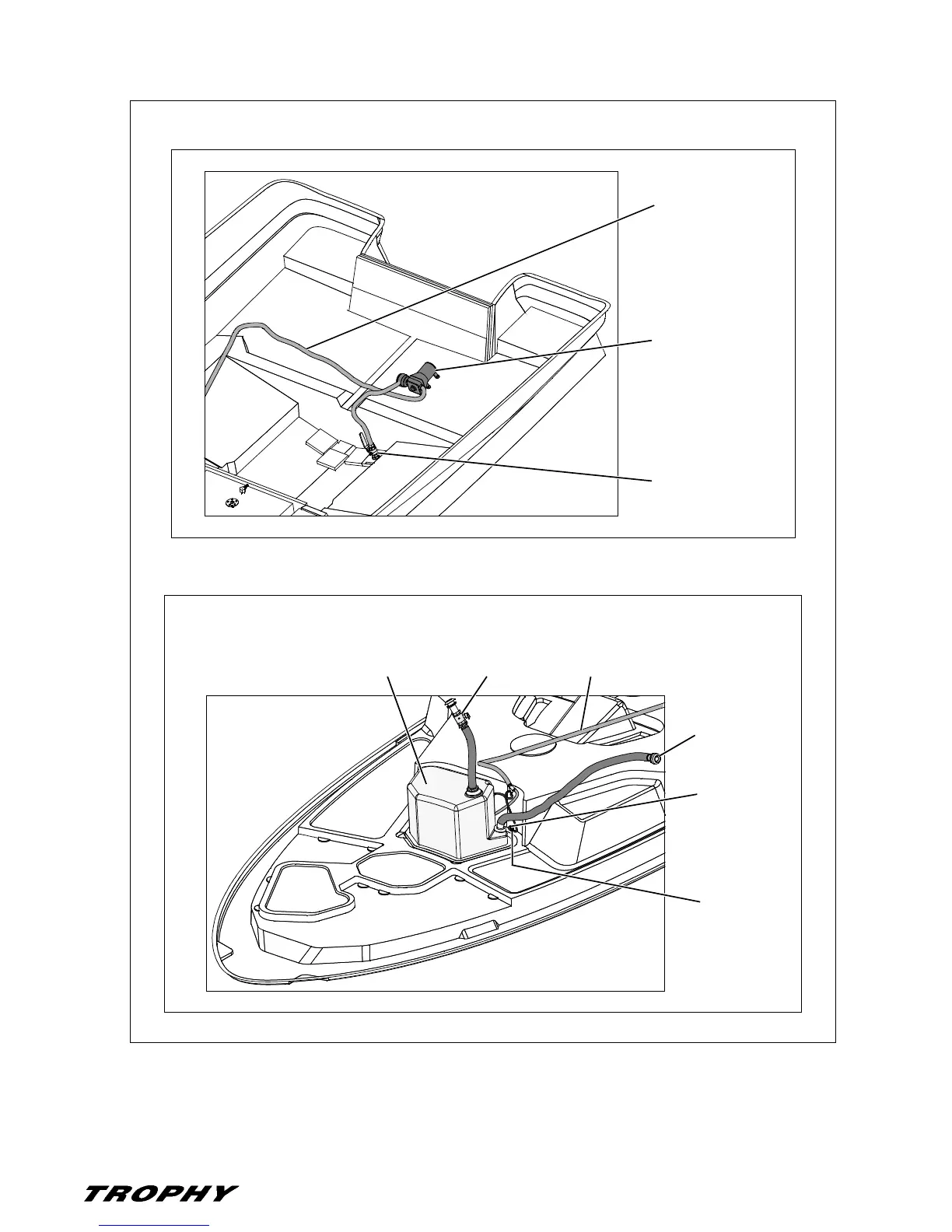

Forward Baitwell Hull & Deck Views
HULL ROUTING
SEAWATER INTAKE
SEACOCK
SEAWATER
INTAKE PUMP
AERATOR
NOTE: VIEW IS UNDERSIDE OF DECK
VENT
DECK ROUTING
DRAIN
SEACOCK
BAITWELL
TANK
OVERFLOW
DRAIN
FROM SEAWATER
INTAKE PUMP
AERATOR
CONTROL
VALVE
TO BAITWELL
