Trotec BM31WP User Manual

10 EN
material moisture measuring device controlled via smartphone BM31WP

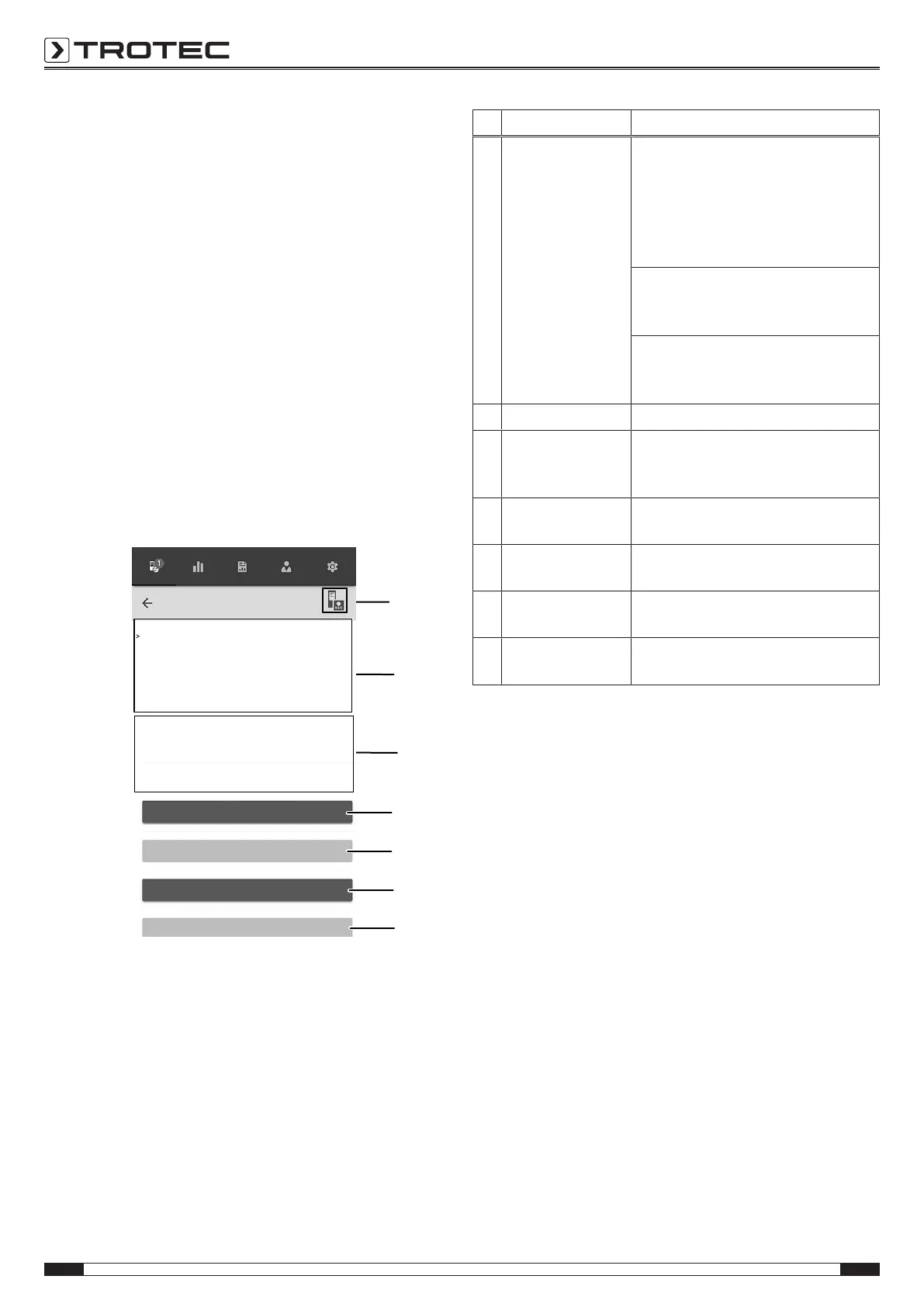

Performing a matrix measurement without background
In case of a matrix measurement an entire series of measuring
points is captured using a grid the size of which has to be
selected.
1. Always start a matrix measurement in the top left corner
(1st row, 1st column).
ð The grid field to be measured flashes.
2. Perform the measurement in the flashing grid field.
3. Confirm the measured value by pressing the Measured
value data loggingbutton(22). You can reset a logged
value by pressing UNDO(23). You can skip the indicated
grid field and continue with the measurement in the next
by pressing the SKIPbutton(24).
ð The displayed measurement grid(21) moves on to the
next line.
4. Perform the next measurement at the given point.
5. Press NEW COLUMN(25) when you have completed the
measurements of all lines in one column so as to move on
to the next.
17
9
21
Sensors MEASUREMEN
TS
Reports
CUSTOMERS SETTINGS
BM31WP
Building moisture cement
M-%
CM-%
54 digits
0,43 %
0,43 %
Measured value for 1.3
Undo
Skip
New column
22
23
24
25
[53 | 55] Ø 54
[0,42 | 0,44] Ø 0,43
[0,42 | 0,44] Ø 0,43
No. Designation Meaning
9 Numeric value
display
Building moisture anhydrite/
cement: Indicates the minimum,
maximum and average values as well
as the current moisture value in digits
without unit (material selection via
sensor settings).
M-%: Indicates the minimum,
maximum and average values as well
as the calculated Mmoisture value.
CM-%: Indicates the minimum,
maximum and average values as well
as the calculated CMmoisture value.
17 RECbutton Opens the context menu for sensors.
21 Measuring field
with grid
Indicates the measurement grid of the
measuring field (grid field to be
measured flashes red).
22 Measured value
data logging button
Saves the measured value for the
flashing grid field.
23 UNDO button Deletes the saved measured value for
the respective grid field.
24 SKIP button Skips the grid field flashing red and
moves on to the next grid field.
25 NEW COLUMN
button
Starts a new column.
