energy consumption measuring device BX50 MID / BX50 MID F / BX50 MID C
Information about the device
Device description
The device BX50 MID can measure the energy demand of a
connected terminal device or the energy production of a power
generator, e.g. a solar module. The device is MID-calibrated and
cannot be manipulated.
The device can display the following values:
• Total counter reading Energy flow (production and
consumption) (kWh, non-resettable)
• Counter reading Energy flow (production and consumption)
(kWh, resettable)
• Total counter reading Production (kWh, non-resettable)
• Counter reading Production (kWh, resettable)
• Total counter reading Consumption (kWh, non-resettable)
• Counter reading Consumption (kWh, resettable)
• Current voltage(V)
• Current amperage(A)
• Current power consumption of the connected device(W)
• Power factor
• Current mains frequency(Hz)
• Highest previously measured power consumption in watts
(resettable)
The device comes with display illumination in order to enhance
the legibility.

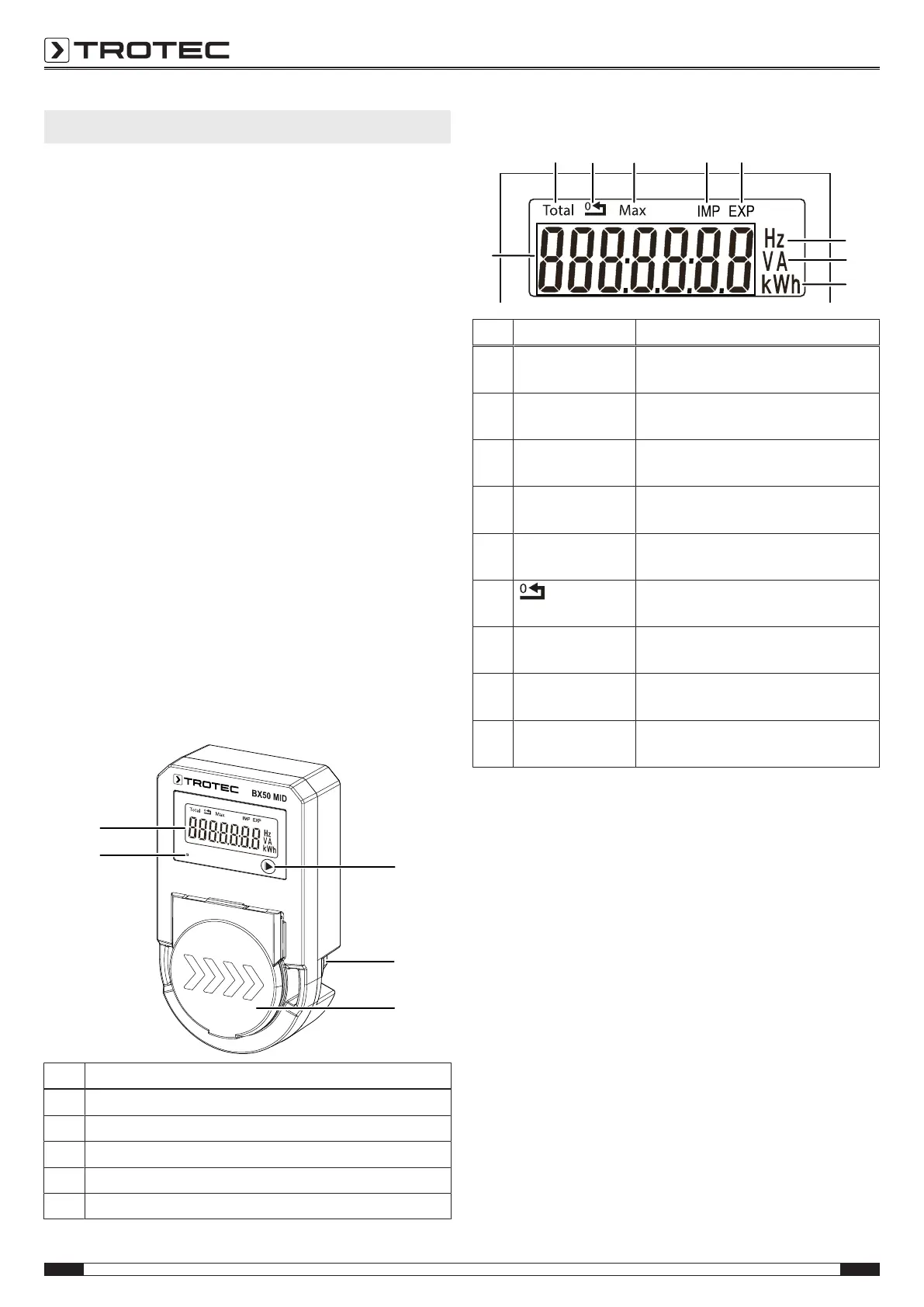

Device depiction
2
3
1
4
5
No. Designation
1 Menu button
2 Connection to socket
3 Connection for the terminal device (plug adapter)
4 LED pulse frequency
5 Display
Display
6
7
8
9
10 11 12 13 14
No. Designation Meaning
6 Hzindication Unit of the displayed alternating
current frequency
7 V/Aindication Unit of the displayed voltage(V)/
amperage(A)
8 W/kWhindication Unit of the displayed consumed/
generated electricity
9 Measured value
display
Current measured value or counter
reading
10 Total indication The counter reading of the energy
flow is displayed.
11
indication
The displayed counter reading can be
reset.
12 Max indication The highest measured consumption
is displayed.
13 IMP indication The production counter reading is
displayed.
14 EXP indication The consumption counter reading is
displayed.
