6 Operating manual – Oil heater IDE 20 / IDE 30 / IDE 50 / IDE 60 / IDE 80 EN
• Check the scope of delivery of your oil heater for
completeness. If an accessory part is missing, please contact
the Trotec customer service or the specialist dealer where
you purchased the device.
• Check the oil heater and its connection parts for potential
damage.
• Mount the support/carry handle and the wheels onto the oil
heater.
• Observe the conditions described in the chapter Installation
conditions.
• Install the exhaust line of the device properly to a chimney or
an outer wall as depicted in the chapter Exhaust system.
• Fill the tank with fuel oil when the device is switched off and
cooled down.
• Check the device for its proper condition prior to start-up and
at regular intervals during application.
• Check whether the characteristics of the power grid conform
to those on the rating plate.
• Each time before you plug the mains plug into the mains
socket and switch on the device, make sure that the fan is
moving freely.
• Connect the mains cable to a properly secured mains socket
(230 V / 50 Hz / 10 A).
On construction sites, there must be an RCD upstream of the
socket according to VDE 0100/0105.
The oil heater is now ready for operation. Use the device in
accordance with the functions described in the chapter Functions
and operation.
• Prior to planning of the exhaust system, inform the
competent chimney sweep according to DIN 18160.
Risk of injury due to poisoning!
An improper installation of the exhaust system can cause
health problems.
Have the system installed by an expert craftsman!
• Ensure an unimpeded and sufficient combustion air supply
(e. g. by means of ventilation openings in doors, ceilings,
windows, walls or via interconnected airways).
• Have the exhaust emission of the burner checked at regular
intervals.

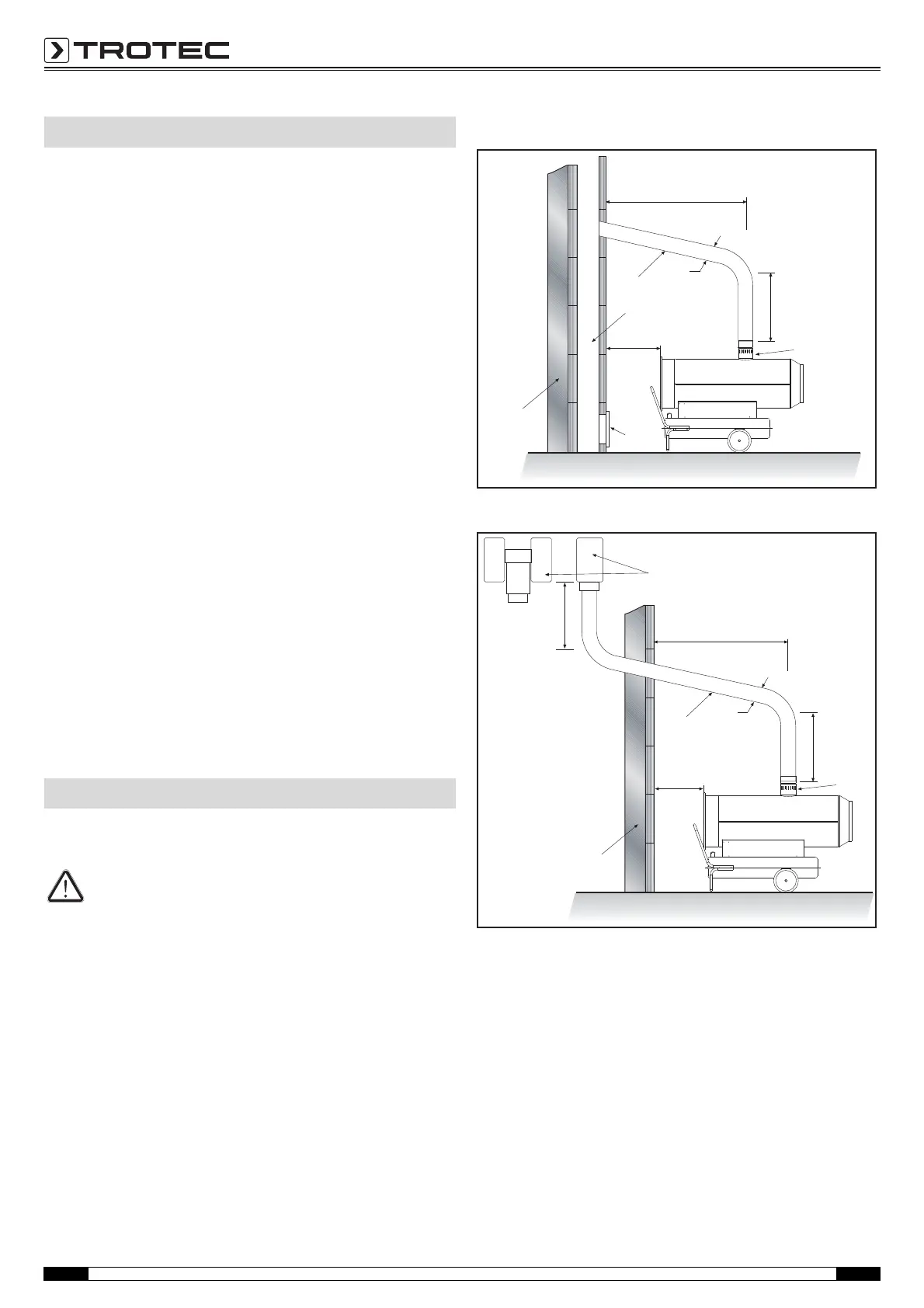

Chimney duct
Wall duct
Installation and start-up
Exhaust system
A min. 2 m 1 chimney connection
B min. 1 m 2 wall duct with elbow min. 5°
C as short as possible
D ≥ ø 120 mm/150 mm 3 chimney - interior min. 20x20
cm
E min. 1 m 4 cleaning opening with
explosion protection flap
5 outer wall
6 draft intensifier H-shaped
B
1
D
2
C
3
A
5
4
