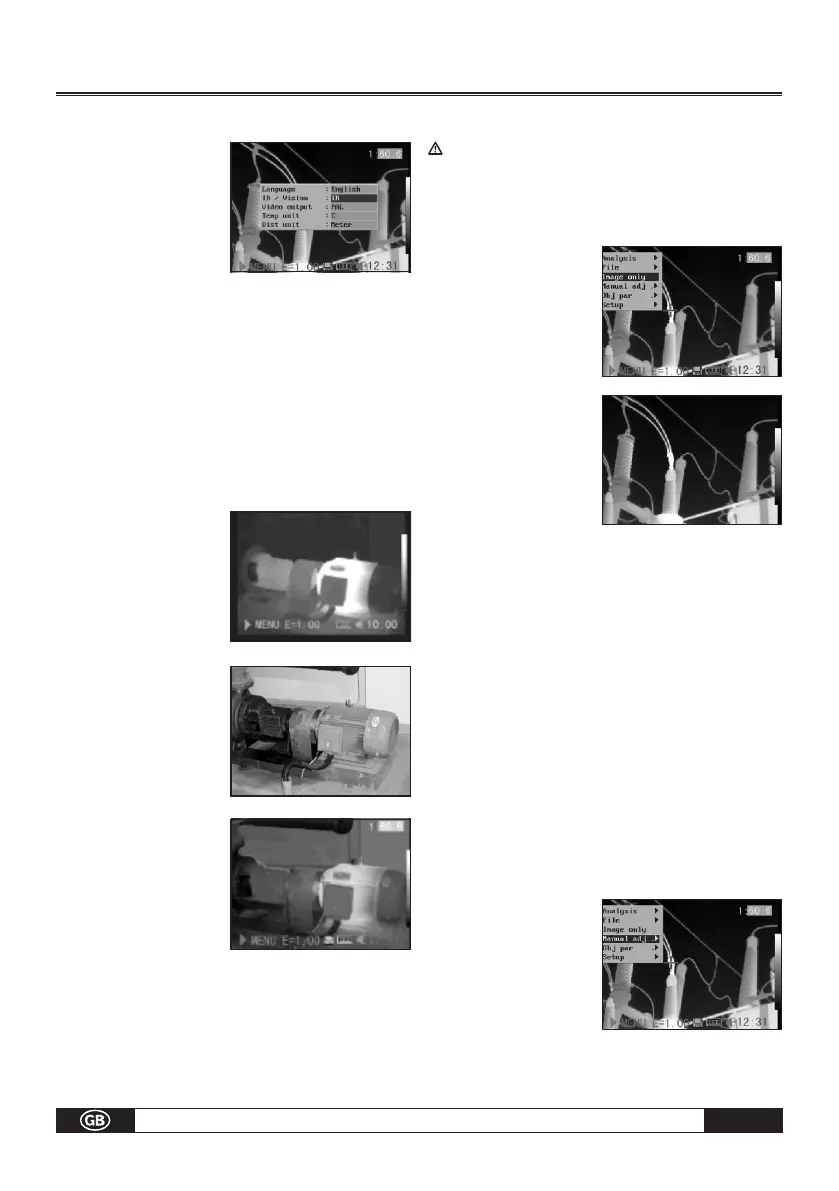

Operating manual – Infrared camera
B - 10
4. Press
Up
and Down arrow on
the omni selector to
select [IR/Vision],
and press 3 Left and
Right 4 to select a
display mode, then
press the MENU / ENTER key.
• IR............................DisplaysIRimage.
Vision . . . . . . . . . . . . . . . . . . . . . . Displays visual image.
DuoVision . . . . . . Displays IR image and visual image
together as overlapping images.
DuoVision
The DuoVision display modes allow thermal and visib-
le images to be displayed as overlapping images.
IR
In this mode, you can use
the analysis tools to ana-
lyze the target. But what
you see is the image
with some pseudo colors.
Vision
In this mode, you can
see the image with full
colors. But you can not
use any analysis tools to
analyze the target.
DuoVision
The IR image and the
real image are displayed
as overlapping images in
this mode. At the same
time you can use any
analysis tools to analyze
the target.
When the CCD offsets the IR image, hold the C key, and
then press the directional keys to have the CCD super-
posed on the IR image.
WARNING: This setting depends on the distance
and only possible in the scope of certain opera-
tions for technical reasons.
Image only
In this mode, analysis
tools and temperature
data do not appear.
1. Press the MENU / EN-
TER key.
2. Press the
Up or
Down arrow on the
omni selector to select
the [Image only]
menu.
•Nokindofinfo
appears.
3. Press any key except the power switch key to
cancel the image-only mode.
Image adjustment
You can adjust the Level (brightness) and Span (cont-
rast) of the image captured by the IR camera manually
or automatically.
Auto adjust
The IR camera will automatically adjust the brightness
and / or contrast when you press the A key.
Manual adjust
You can adjust the Level and Span of the image manu-
ally in the built-in menu system or by pressing arrows
on the omni selector. Press
Up and Down
arrow
to change the span, and press 3Left and Right4 ar-
row to change the level.
1. Press the MENU/EN-
TER key.
2. Press the Up or
Down arrow on the
omni selector to select
the [Manual Adjust]
menu.
3
3
3
3
3
3
3
3
