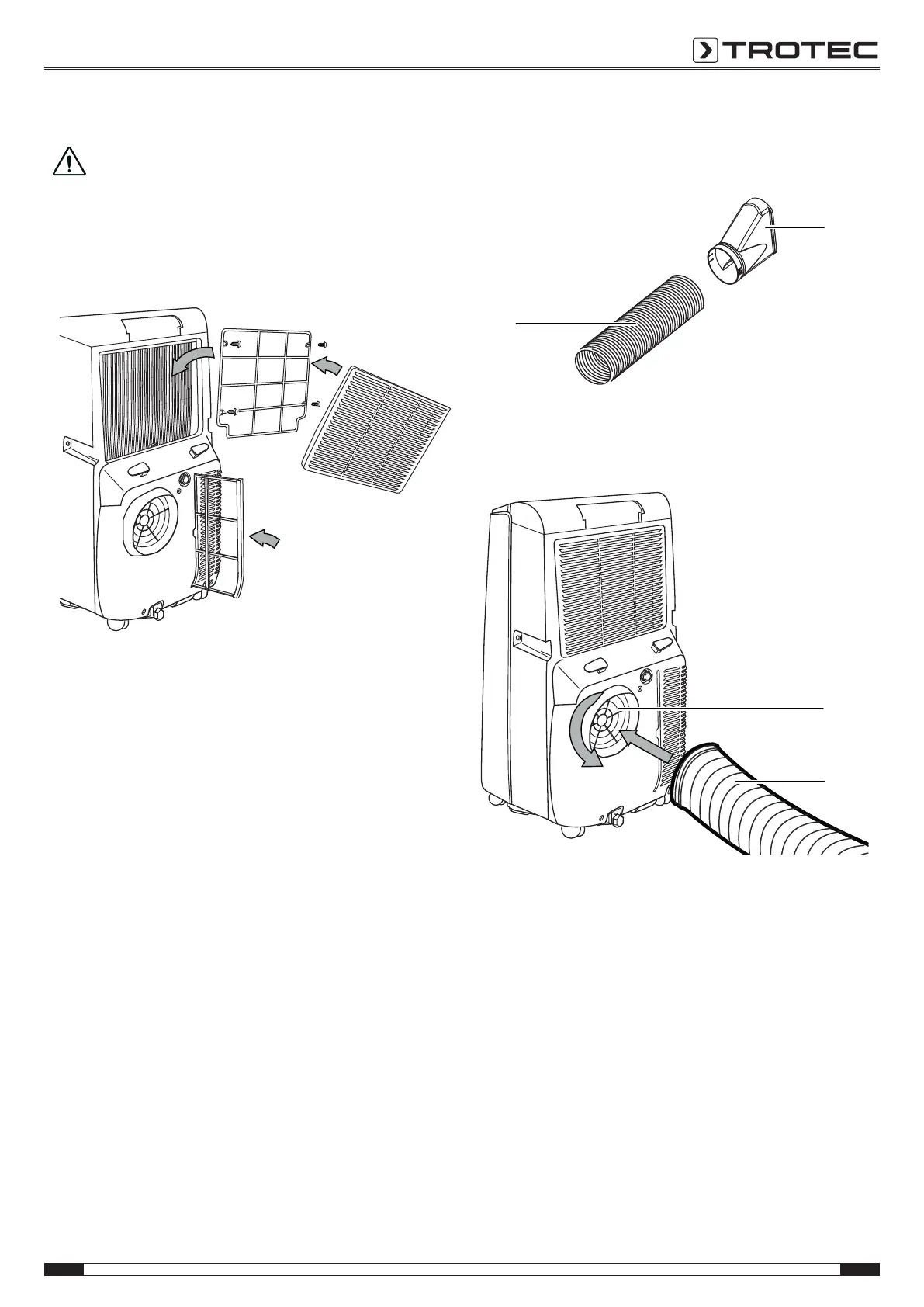

Inserting the air filter
Caution!
Do not operate the device without an inserted air filter!
Without air filter the inside of the device will be heavily
contaminated, this could reduce the dehumidification
performance and result in damage to the device.
• Make sure that the EVA air filter and the CON air filter are
installed before switching the device on.
Connecting the exhaust air hose
1. Connect the flat nozzle(8) to one end of the exhaust air
hose(10).
8
10
2. Screw the other end of the exhaust air hose(10) into the air
conditioner's exhaust air hose connection(13) in the
direction of the arrow (see figure below).
13
10
Discharging exhaust air
• The exhaust air coming from the device contains waste
heat from the room to be cooled. For this reason it is
advisable to discharge the exhaust air outside into the
open air.
• The end of the exhaust air hose can be fed through the
open window. If required, secure the open window with
the corresponding means, so that the end of the exhaust
air hose stays put.
• The end of the exhaust air hose can also be hooked into a
tilted bottom-hung window.
For this purpose, we recommend using a window seal
(optional).
• Install the exhaust air hose inclined with the air direction.
