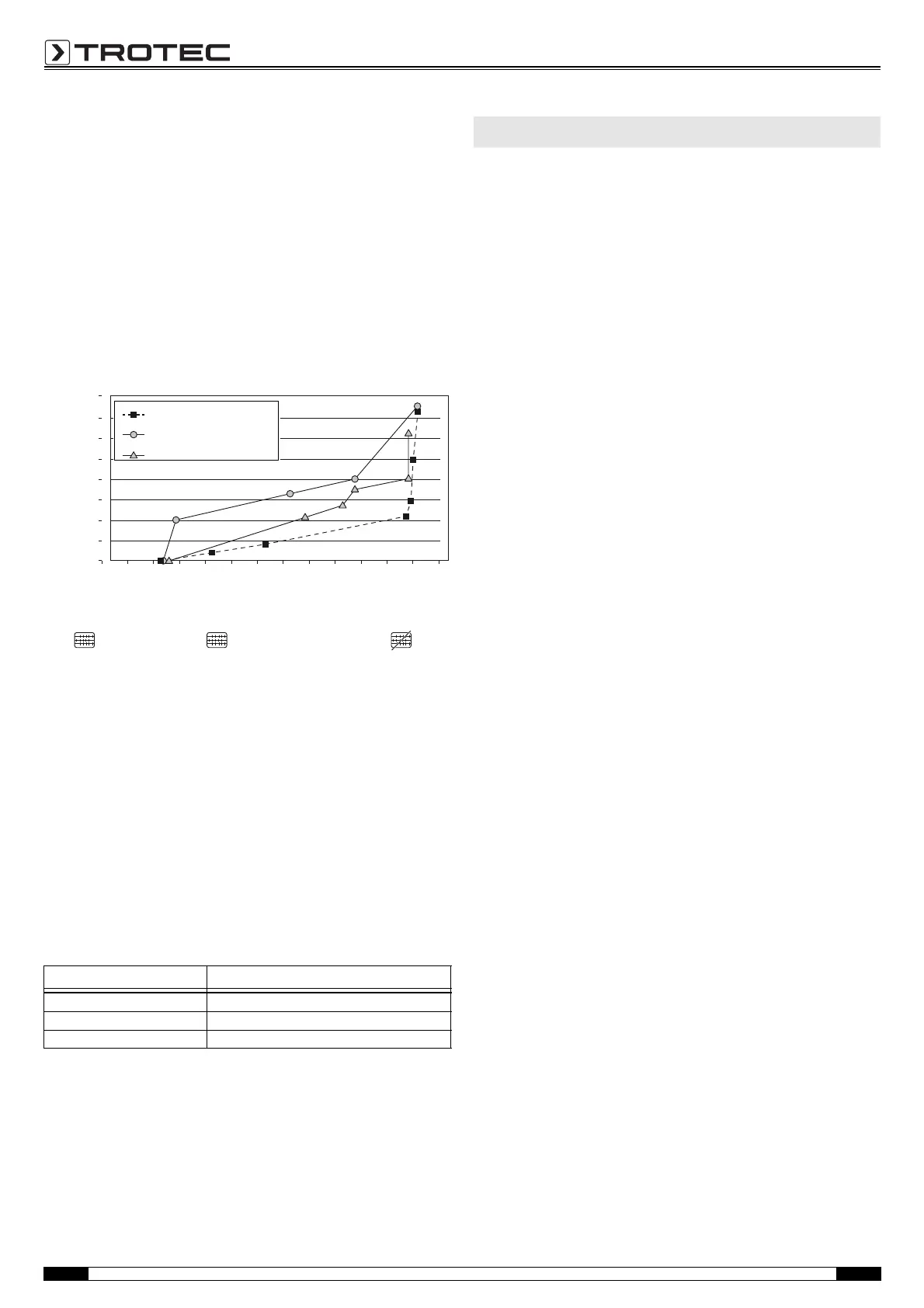

Measured value assessment for building material
For building materials the measurement results of the dielectric
measuring method can only be used as reference for a rough ori-
entation. Conclusions with respect to absolute humidity in
mass % (M%) can only be drawn for measurements, performed
with the exact same marginal conditions and compositions of the
building material as indicated for the test set-up in the chart
below.
This graph was created in collaboration with the Institute of Build-
ing Materials Research of the RWTH Aachen (IBAC) and illustrates
the correlation between the measured value and the
mass-related moisture content of the examined building materi-
als.
The spread of the achieved measurement results for the dielectric
measuring method is clearly higher than for the resistance meas-
uring method.
The dielectric measuring method is not suited for the quantitative,
but only for the qualitative moisture measurement in near-surface
areas.
The indicated measured values are not the result of a qualified
moisture measurement as per VOB (German Construction Con-
tract Procedures) or relevant specialist regulations.
The measured values are only to be interpreted as indicators (dry,
damp, wet).
For building materials the measurement results of the dielectric
measuring method can only be used as reference for a rough ori-
entation.
Use the MultiMeasure Studio Standard PC software (free standard
version) or MultiMeasure Studio Professional (paid professional
version, dongle required) to carry out a detailed analysis and vis-
ualisation of your measured results. You can only use all config-
uration, visualisation and functional options of the device when
using this PC software and a TROTEC
®
USB dongle (professional).
Installation requirements
Ensure that the following minimum requirements for installing the
MultiMeasure Studio Standard or MultiMeasure Studio
Professional PC software are fulfilled:
• Supported operating systems (32 or 64 bit version):
– Windows XP from service pack 3
–Windows Vista
–Windows 7
–Windows 8
• Software requirements:
– Microsoft Excel (to display stored Excel files)
– Microsoft .NET Framework 3.5 SP1 (is otherwise automat-
ically installed during the software installation)
• Hardware requirements:
– Processor speed: min. 1.0 GHz
– USB connection
– Internet connection
– 512 MB RAM, minimum
– 1 GB hard disk space, minimum
– Optional: TROTEC
®
USB dongle (Professional) for using the
professional version of the PC software
Display [digit] Building moisture zone
< 40 digits dry
40 - 80 digits damp
> 80 digits wet
10
[M-% = CM-%],
2
[CM-% = M-% - 1.5...2],
3
20 30 40 50 60 70 80 90 100 110 120 1300
0
1
2
3
4
5
6
7
8
1
Measured value [digits]
anhydrite floating screed (1)
cementitious screed (2)
C 30/37 concrete (3)
M%
PC software

Trotec T660 Specifications

General

Penetration Depth	Up to 40 mm
Operating Temperature	0 °C to +50 °C
Measurement Range	0 to 200 digit
Resolution	0.1 digit
Display	LCD
