Operating manual – convector TCH 20 E / TCH 22 E
Information about the device
Device description
The convectors TCH 20 E / TCH 22 E serve to generate warm air
in interior spaces.
The device generates heat by means of an electric heating
element. The air surrounding the heating element is heated. The
heated air rises through the air outlet and thus enters the room.
The device comes with an integrated thermostat and so
generates a constant flow of warm air.
The device TCH22E comes with an additional turbo function for
a faster distribution of the heated air.
Furthermore, the device TCH22E is equipped with a timer
allowing the operator to select the time for switch-on and
switch-off.

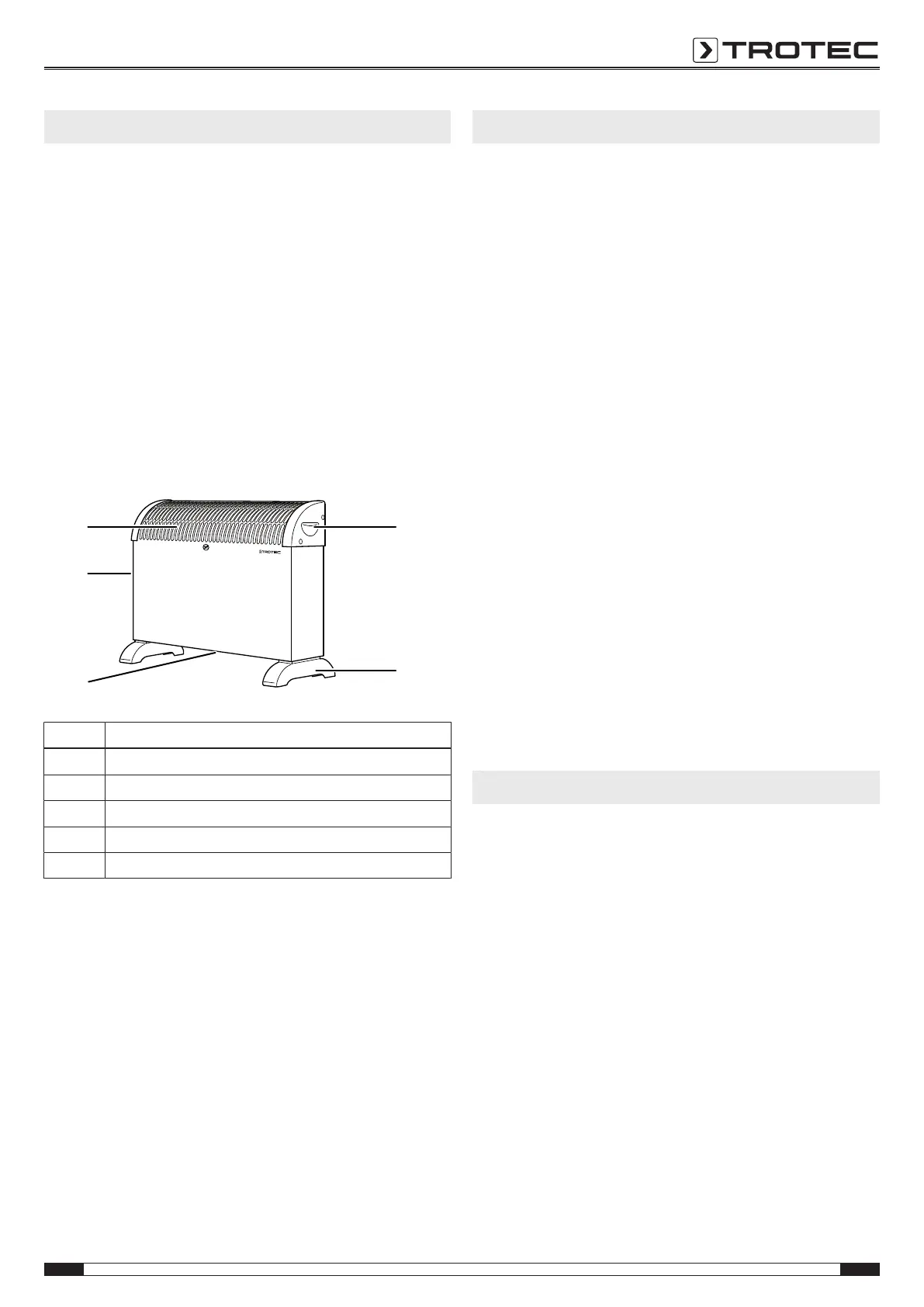

Device depiction
THC 22
E
1
2
3
4
5
No. Designation
1 Carrying handle
2 Foot
3 Air inlet
4 Control panel
5 Air outlet
Transport and storage
Notice
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
To make the device easier to transport, it is fitted with a carry
handle.
Before transporting the device, observe the following:
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Do not use the power cable to drag the device.
• Allow the device to cool down sufficiently.
Storage
Before storing the device, observe the following:
• Allow the device to cool down sufficiently.
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• in an upright position where it is protected from dust and
direct sunlight
• with a cover to protect it from invasive dust if necessary
• Place no further devices or objects on top of the device to
prevent it from being damaged.
Assembly and installation
Scope of delivery
• 1 x Convector
• 2 x Foot
• 4 x Fastening screw
• 1x Manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.
