Trotec TTK 25 E - Base Pan

B - 14 Operating Manual – Dehumidifier TTK 25 E EN

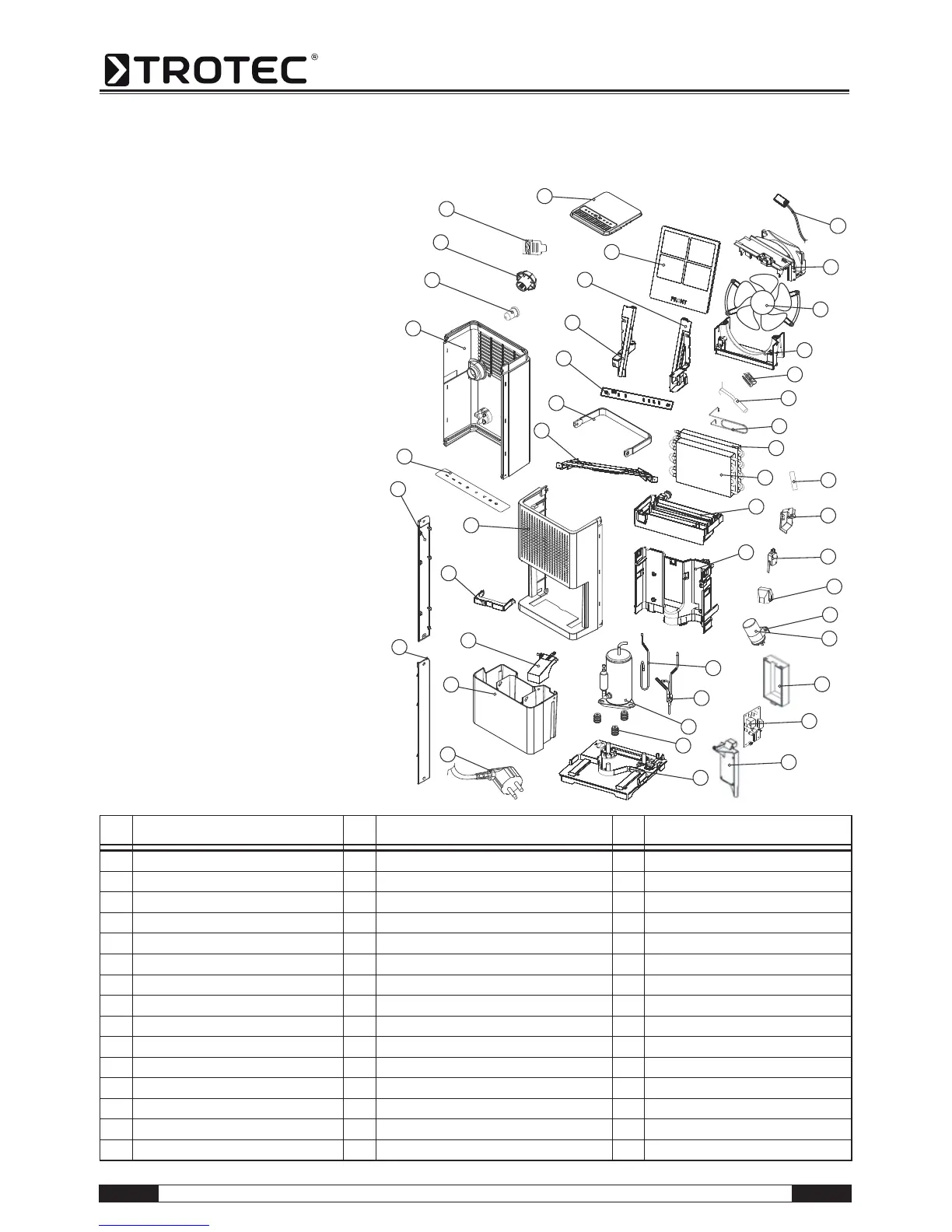

Overview and list of spare parts
No. Spare part No. Spare part No. Spare part
1 Base pan 16 Sensor (for humidity) 31 Strike
2 Rubber 17 Fixture 32 Handle
3 Compressor assembly 18 Control board 33 PC board
4 Discharge pipe 19 Cover 34 Rail
5 Suction pipe 20 Capacitor (8 μF/450 for compressor (3)) 35 Rail
6 Plate 21 Fix metal 36 Air filter
7 Drainage Pan 22 Cover 37 Top cover
8 Evaporator assembly 23 Micro switch 38 Decorating plate
9 Condenser assembly 24 Fixture 39 Decorating plate
10 Capillary tube 25 Bar 40 Control panel
11 Sensor (for evap) 26 Power supply cord complete 41 Rear panel
12 Fix metal 27 Drain bucket 42 Soft cap
13 Fan tank 28 Float 43 Plug
14 Brushless DC fan 29 Handle 44 Fixture
15 Fan tank 30 Front panel
1
2
3
4
5
6
7
8
10
11
12
13
14
15
25
24
23
21
22
20
19
18
17
27
39
28
29
30
40
31
34
33
35
36
32
43
37
42
44
41
9
26
38
16
Note!
The position numbers of the spare parts differ from
those describing the positions of other parts men-
tioned in this operating manual.
