dehumidifier TTK 53 E / TTK 72 E

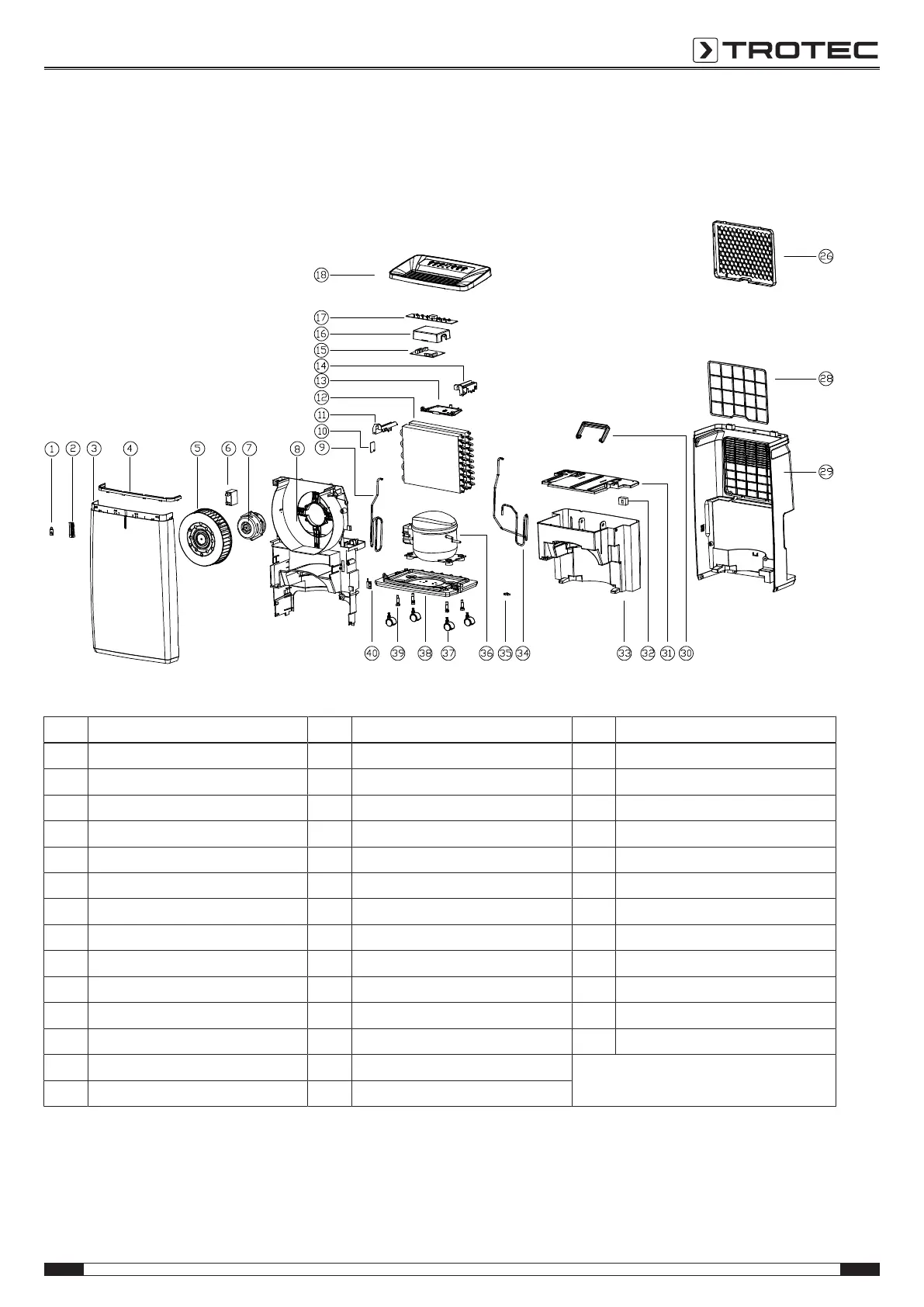

Overview and list of spare parts Note: The position numbers of the spare parts differ from those
describing the positions of the components mentioned in these
instructions.
No. Spare Part No. Spare Part No. Spare Part
1 LED Lamp 15 Main PCB 29 Back Cover
2 Light Guide 16 Electrical Cover 30 Handle
3 Front Shell 17 Control PCB 31 Tank Cover
4 Decorative Article 18 Top Cover 32 Float
5 Wind Wheel 19 - 33 Water Tank
6 Capacitance 20 - 34 Exhaust Pipe
7 Motor 21 - 35 Block
8 Main Body 22 - 36 Compressor
9 Return Pipe 23 - 37 Universal Wheel
10 Senser 24 - 38 Base
11 Fixed Mount (L) 25 - 39 Screw Arbor
12 Condenser & Evaporator 26 Inlet Frame 40 Reed Pipe
13 Electrical Box 27 -
14 Fixed Mount (R) 28 Filter Frame
