Operating manual – dehumidifier TTK 54 E / TTK 66 E
Information about the device
Description of the device
The device has an ionization function that can be switched on in
any operating mode. The released ions remove pollen, dust,
viruses and bacteria from the room air. Thanks to this air
purification method, the quality of the room air can be
additionally improved.
The device uses the principle of condensation to automatically
dehumidify rooms.
The fan sucks damp room air through the air inlet, the air filter,
the evaporator and to the condenser located behind it. The air is
cooled at the cold evaporator until it is below the dew point.
Water vapour contained in the room air precipitates on the
evaporator fins as condensation or rime. The dehumidified,
cooled air is slightly warmed at the condenser and blown out
again. The drier air thus conditioned mixes with the air in the
room. The humidity in the room where the device is positioned
is reduced as air constantly circulates through the device.
Depending on the air temperature and the relative humidity, the
condensed water either drops continuously or only during the
defrost phase through the integrated drain nozzle into the
condensation tank below. It is fitted with a float to measure the
filling level.
The device has a control panel for operating and controlling the
functions.
Once the maximum filling level of the condensation tank is
reached or if the tank is not installed correctly, the condensation
tank indicator light on the control panel will be illuminated and
an error code will be displayed as well (see chapter Operating
elements). The device switches off. The indications only
disappear once the emptied condensation tank is reinserted.
Optionally, the condensed water can be drained by attaching a
hose at the condensation connection.
The device can reduce the relative humidity of a room to approx.
35%.
In addition, the device may also be used as a kind of clothes
dryer to dry wet laundry in living or working spaces.
Because of the heat radiation generated during operation, the
room temperature may rise slightly.

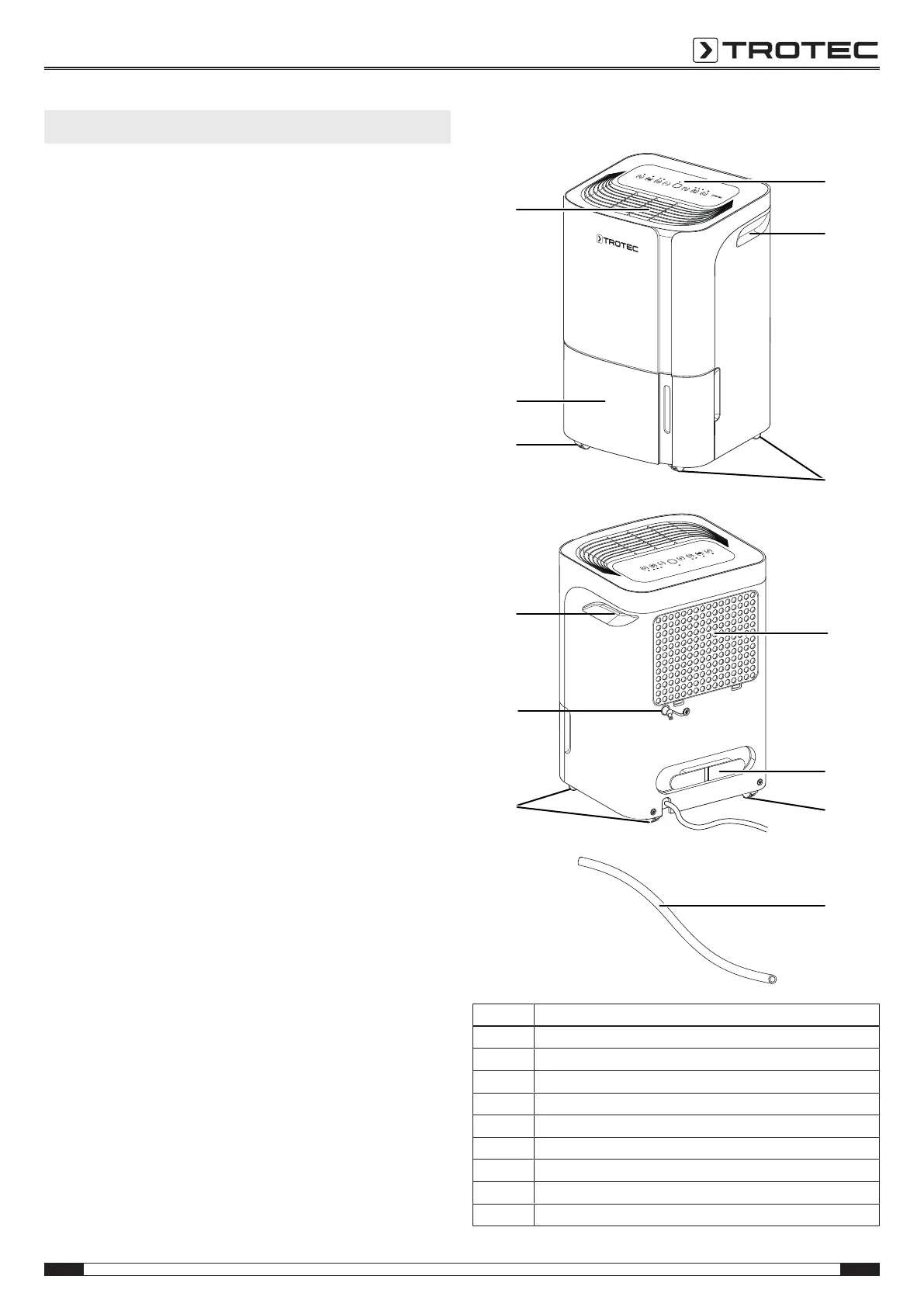

Device depiction
7
8
3
MODE ON/OFFTIMERTURBO
ION
On
O
Full
Dryer
SMDCont.
1
2
2
3
4
9
8
3
5
6
3
No. Designation
1 Control panel
2 Transport handle
3 Wheels
4 Air inlet with air filter
5 Power cable holder
6 Condensation drain hose
7 Condensation drain hose connection
8 Condensation tank with filling level indicator
9 Air outlet
