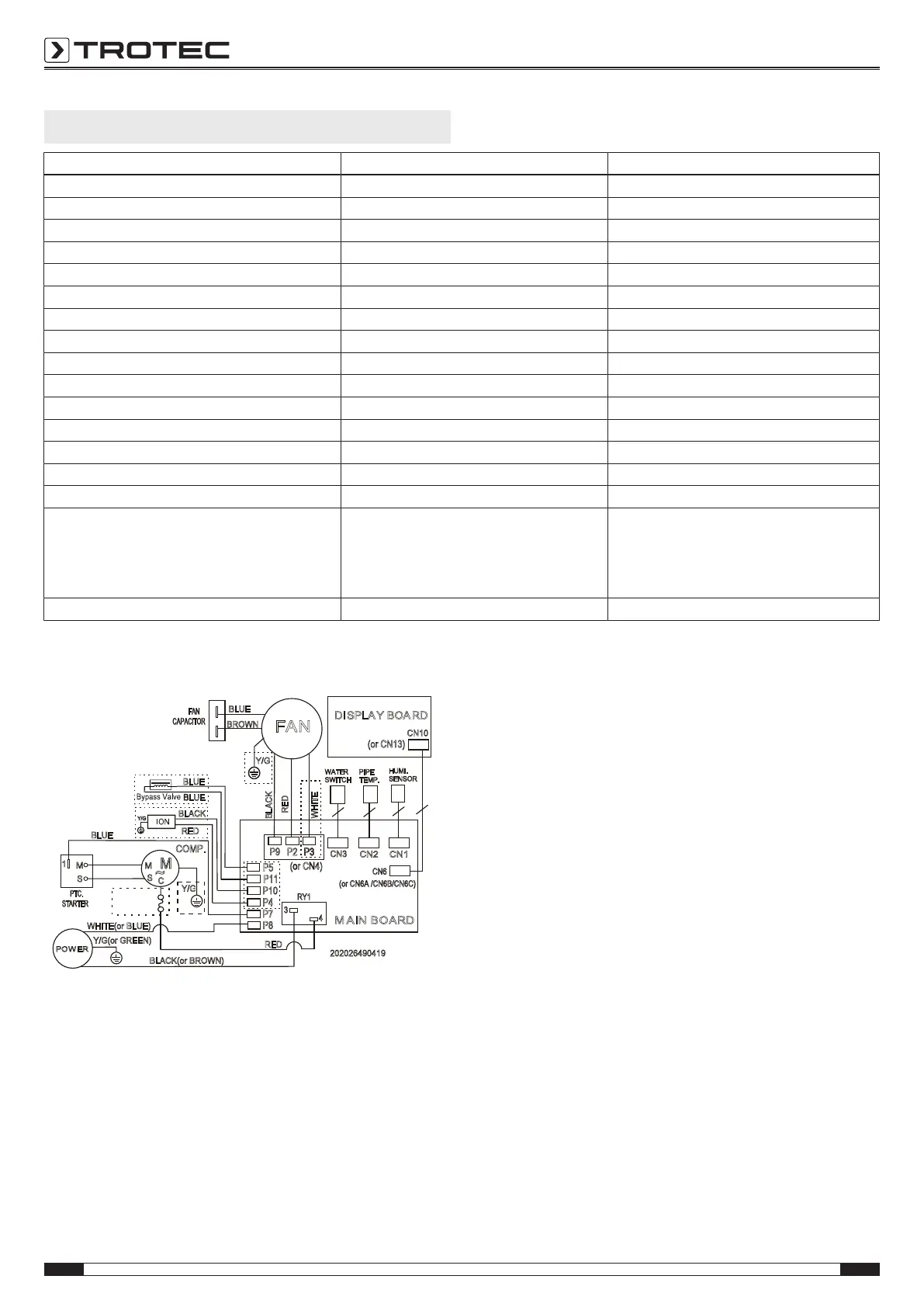

Operating manual – dehumidifier TTK 54 E / TTK 66 E
Technical annex
Technical data
Model TTK54E TTK66E
Max. dehumidification performance 16 l / 24 h 24 l / 24 h
Dehumidification performance @ 30°C and 80%RH 14 l / 24 h 20 l / 24 h
Air flow rate 170 m
3
/h 170 m
3
/h
Ambient temperature 5°C to 35°C 5°C to 35°C
Operating range 35 % to 85 % RH 35 % to 85 % RH
Power supply 1/N/PE ~ 230 V/ 50 Hz 1/N/PE ~ 230 V/ 50 Hz
Power consumption 0.35 kW 0.44 kW
Nominal current 2 A 2.1 A
Refrigerant R134a R134a
Amount of refrigerant 105 g 120 g
GWP factor 1430 1430
CO
2
equivalent 0.15t 0.17t
Condensation tank capacity 3 l 3 l
Sound pressure level (1m distance) 48 dB(A) 48 dB(A)
Dimensions (length x width x height) 245 x 350 x 510 mm 245 x 350 x 510 mm
Minimum distance to walls and other objects
A: top:
B: rear:
C: side:
D: front:
40 cm
20 cm
20 cm
20 cm
40 cm
20 cm
20 cm
20 cm
Weight 14 kg 14 kg
Wiring diagram
TTK 54 E / TTK 66 E
DI SPLA Y BOA RD
M AIN BOARD
FAN
POWER
CN10
CN1
CN3
CN6
4
3
P8
(or CN4)
CN2
PTC.
STARTER
WATER
SWITCH
PIPE
TEMP.
HUMI.
SENSOR
BLACK(or BROWN)
RED
WHITE(or BLUE)
WHITE
RED
Y/G
Y/G(or GREEN)
RY1
BLACK
BLUE
BROWN
FAN
CAPACITOR
Y/G
M
C
S
M
~
COMP.
P9
P3
BLUE
OverLoad
Protector
P3P2
P7
P4
RED
BLACK
Y/G
P10
(or CN6A /CN6B/CN6C)
BLUE
BLUE
P11
P5
(or CN13)
202026490419
1
M
S
