dehumidifier TTK 71 E

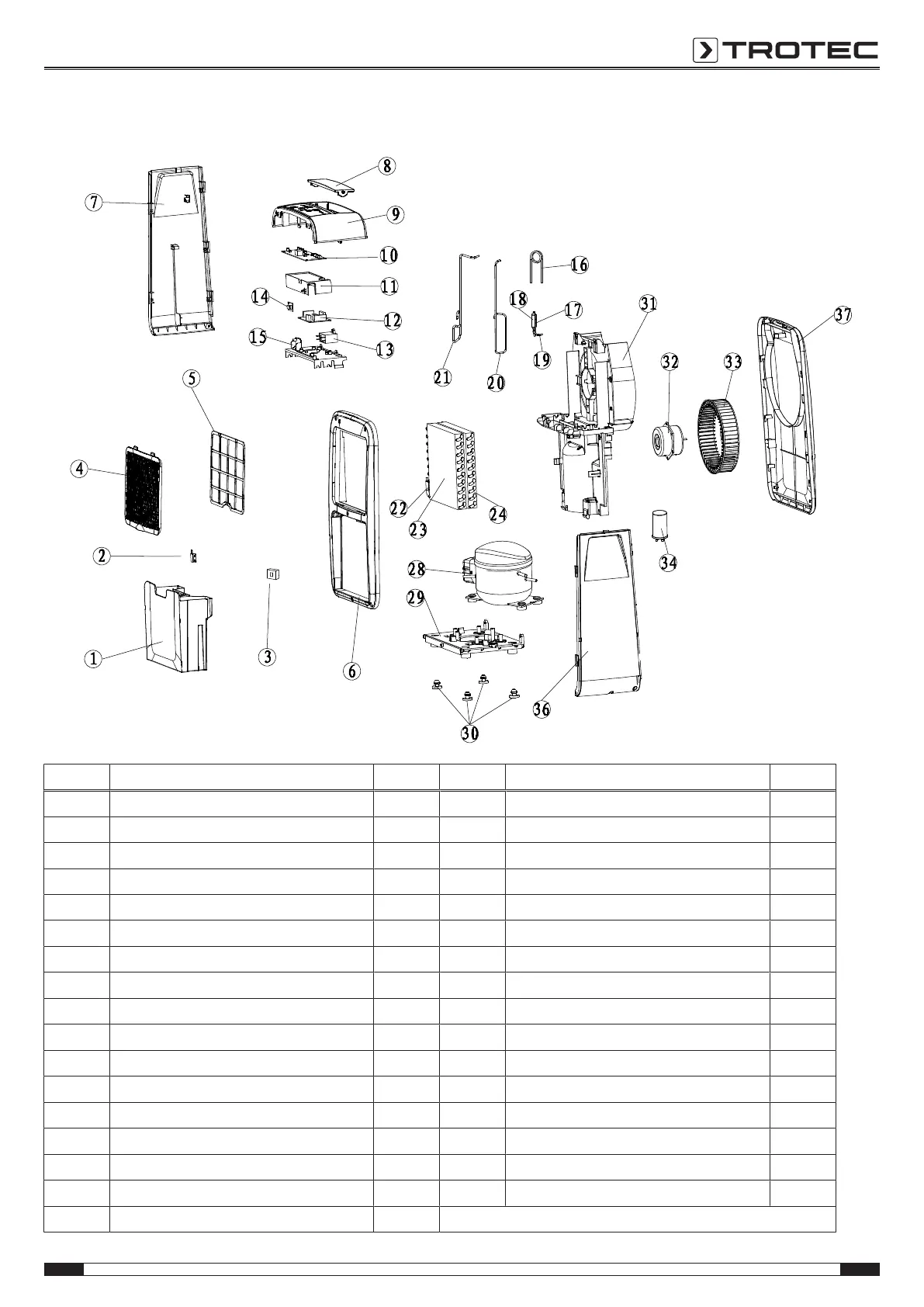

Overview of spare parts Note: The position numbers of the spare parts differ from those
describing the positions of other parts mentioned in this
operating manual.
Spare parts list
NO. SPARE PART QTY. NO. SPARE PART QTY.
1 Water Tank 1 18 Strainer 1
2 Reed Pipe 1 19 Condenser Outlet Tube 4
3 Floater 1 20 Suction Tube 1
4 Back Cover Defence Net 1 21 Discharge Tube 1
5 Outlet-Grids 1 22 Evaporator Inlet Tube 4
6 Back Cover 1 23 Condensor 1
7 Cover-Right 1 24 Evaporator 1
8 Out-Evaporator 1 28 Compressor 1
9 Cover-Top 1 29 Chassis 1
10 Button Board 1 30 Chassis Foot 1
11 Cover Of Electric Box 1 31 Main Body 1
12 Main Board 1 32 Motor 1
13 Motor Capacitor 1 33 Fan Blower 1
14 Humidity Sensor 1 34 Compressor Capacitor 1
15 Electric Box 1 36 Cover-Left 1
16 Capillary 1 37 Front Cover 1
17 Working Tube 1
To Next Page
