6 Commissioning and operation
6.1 Setting of the control component

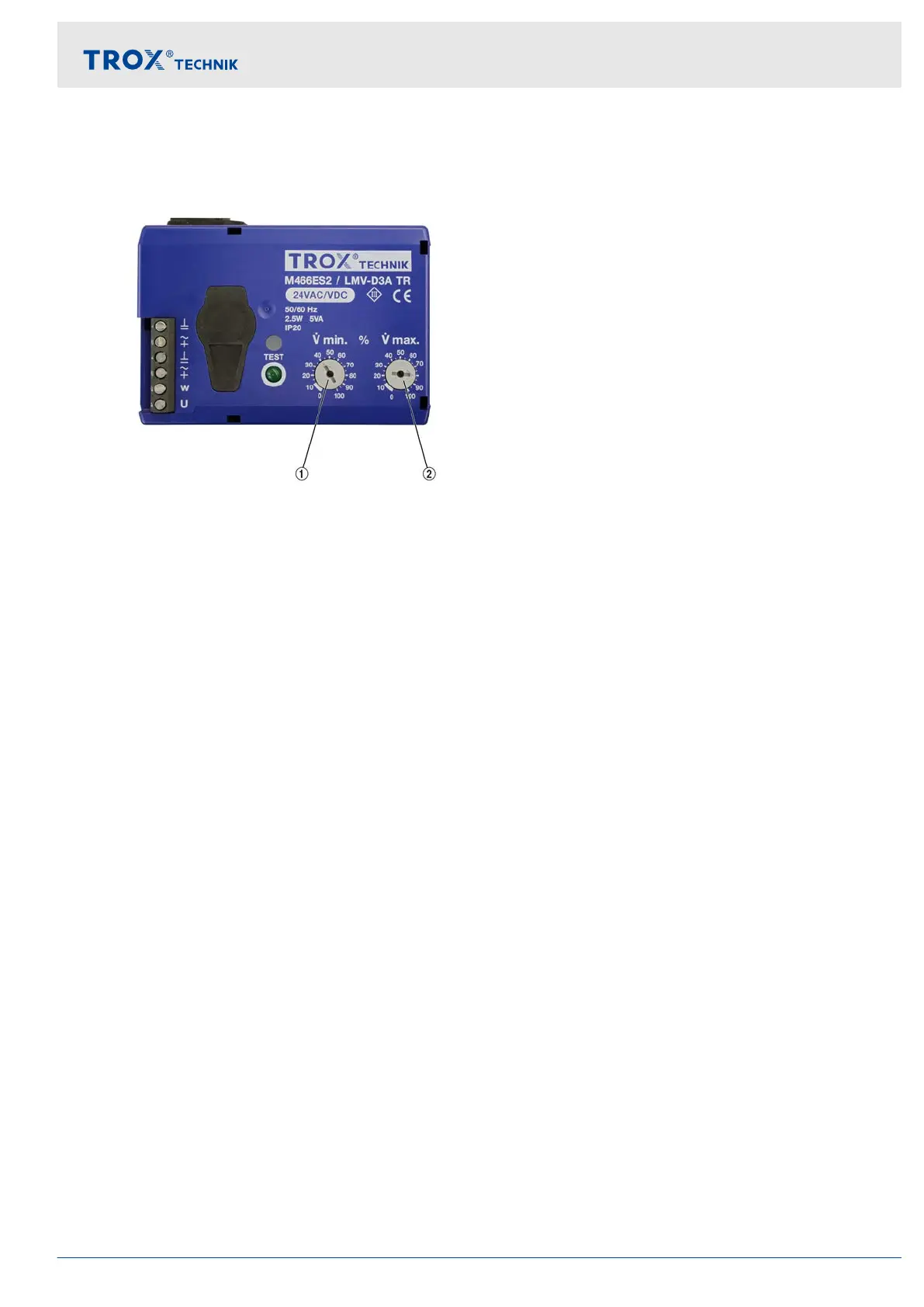

Fig. 20: Setting the volume flow rate setpoint values, for
example LMV
-D3A
1 q
vmin
potentiometer
2 q
vmax
potentiometer
The minimum or maximum volume flow rate is set via
the potentiometer on the Easy controller
. With these,
depending on the control request, a constant volume
flow rate corresponding to q
vmin
or the working range for
the variable volume flow control can be set between
q
vmin
and q
vmax
.
Further explanations and examples can be found on the
following pages.
