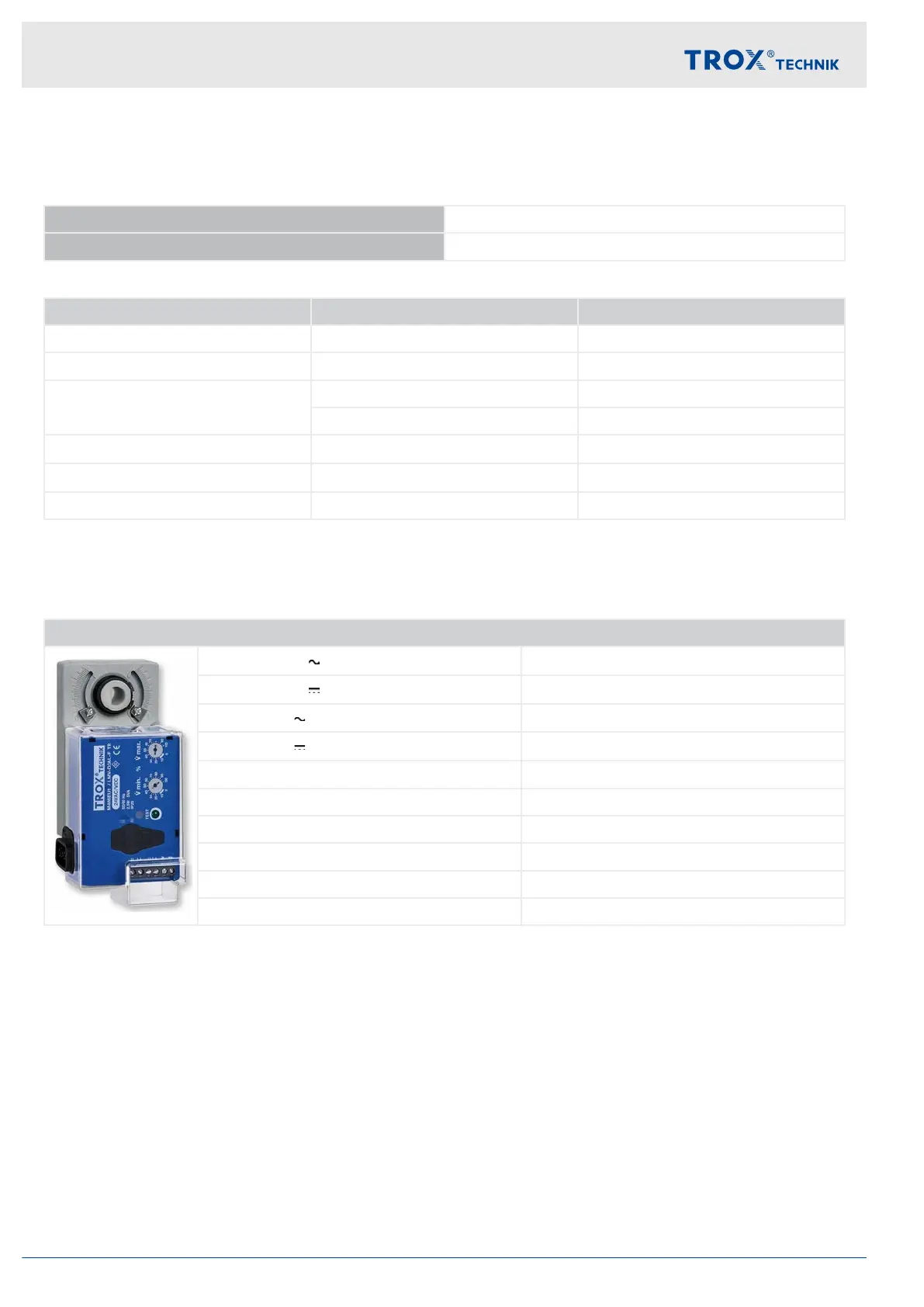

9 Technical data
General operating conditions of the control components
Ambient temperature 10–50 °C
Ambient humidity 5-90% rF
VAV terminal units Type Part number
LVC LMV-D3AL-F M466EU1
TVE TROVE-024T-05I-DD15 A00000069228
TVR LMV-D3A-F M466ES1
227V-024T-05-002 M466DC3
TVJ, TVT
1)
227V-024T-15-002 A00000053055
TVT
2)
SMV-D3A M466ES3
TZ-Silenzio, TA-Silenzio, TVZ, TVA LMV-D3A M466ES2
1) Type TVJ all dimensions of type TVT up to and including dimension 1000x500
2) Type TVT all dimensions specified from H>500
Easy controller LMV-D3AL-F
Supply voltage
24 V AC ± 20%, 50/60 Hz
Supply voltage
24 V DC −10/+20%
Power rating
3.5 VA max.
Power rating
2 W max.
Run time for 90° 120 – 150 s
Setpoint value signal input 0 – 10 V DC, Ra > 100 kΩ
Actual value signal output 0 – 10 V DC, max. 0.5 mA
IEC protection class III (protective extra-low voltage)
Protection level IP 20
EC conformity EMC to 2014/30/EU
Technical data
Easy control component for VAV terminal units32
