Features and Controls
2

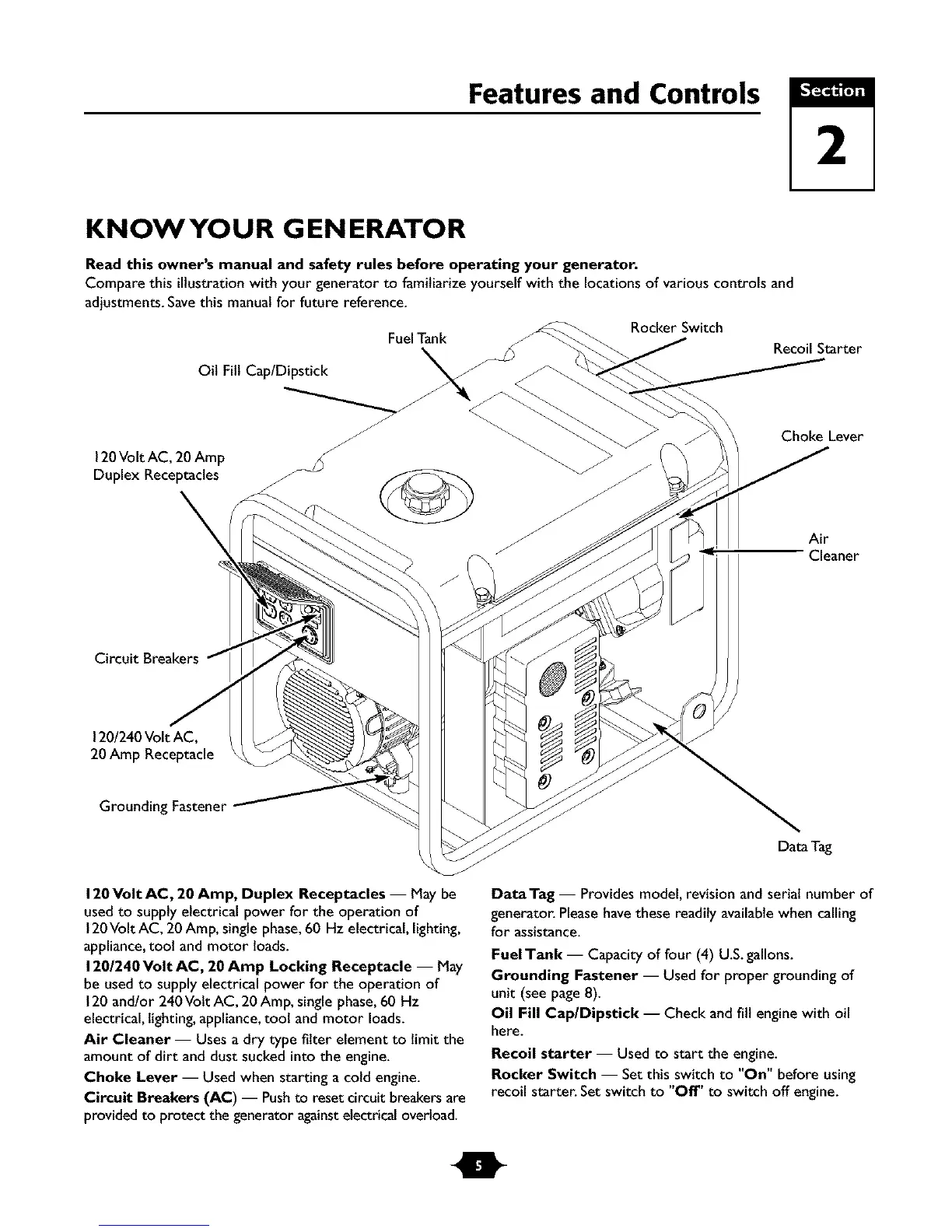

KNOWYOUR GENERATOR
Read this owner's manual and safety rules before operating your generator.
Compare this illustration with your generator to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
FuelTank
Rocker Switch
120Volt AC, 20 Amp
Duplex Receptacles
Oil FillCap/Dipstick
Recoil Starter
Choke Lever
Air
Cleaner
Circuit Breakers
120/240Volt AC,
20 Amp Receptacle
Grounding Fastener
DataTag
120Volt AC, 20 Amp, Duplex Receptacles -- May be
used to supply electrical power for the operation of
120Volt AC, 20 Amp, singlephase,60 Hz electrical, lighting,
appliance,toot and motor loads.
1201240Volt AC, 20 Amp Locking Receptacle -- May
be used to supply electrical power for the operation of
120and/or 240Volt AC, 20 Amp, singlephase,60 Hz
electrical, lighting,appliance,tool and motor loads.
Air Cleaner -- Uses a dry type filter element to limit the
amount of dirt and dust suckedinto the engine.
Choke Lever -- Used when starting a cold engine.
Circuit Breakers (AC) -- Pushto reset circuit breakersare
provided to protect the generator againstelectricaloverload.
DataTag- Provides model, revision and serial number of
generator. Pleasehavethese readily availablewhen calling
for assistance.
Fuel Tank -- Capacity of four (4) U.S.gallons.
Grounding Fastener -- Used for proper grounding of
unit (seepage8).
Oil Fill Cap/Dipstick -- Check and fill engine with oil
here.
Recoil starter -- Used to start the engine.
Rocker Switch -- Set this switch to "On" before using
recoil starter. Set switch to "Off" to switch off engine.
