Troy-Bilt 809 - Lift Assembly

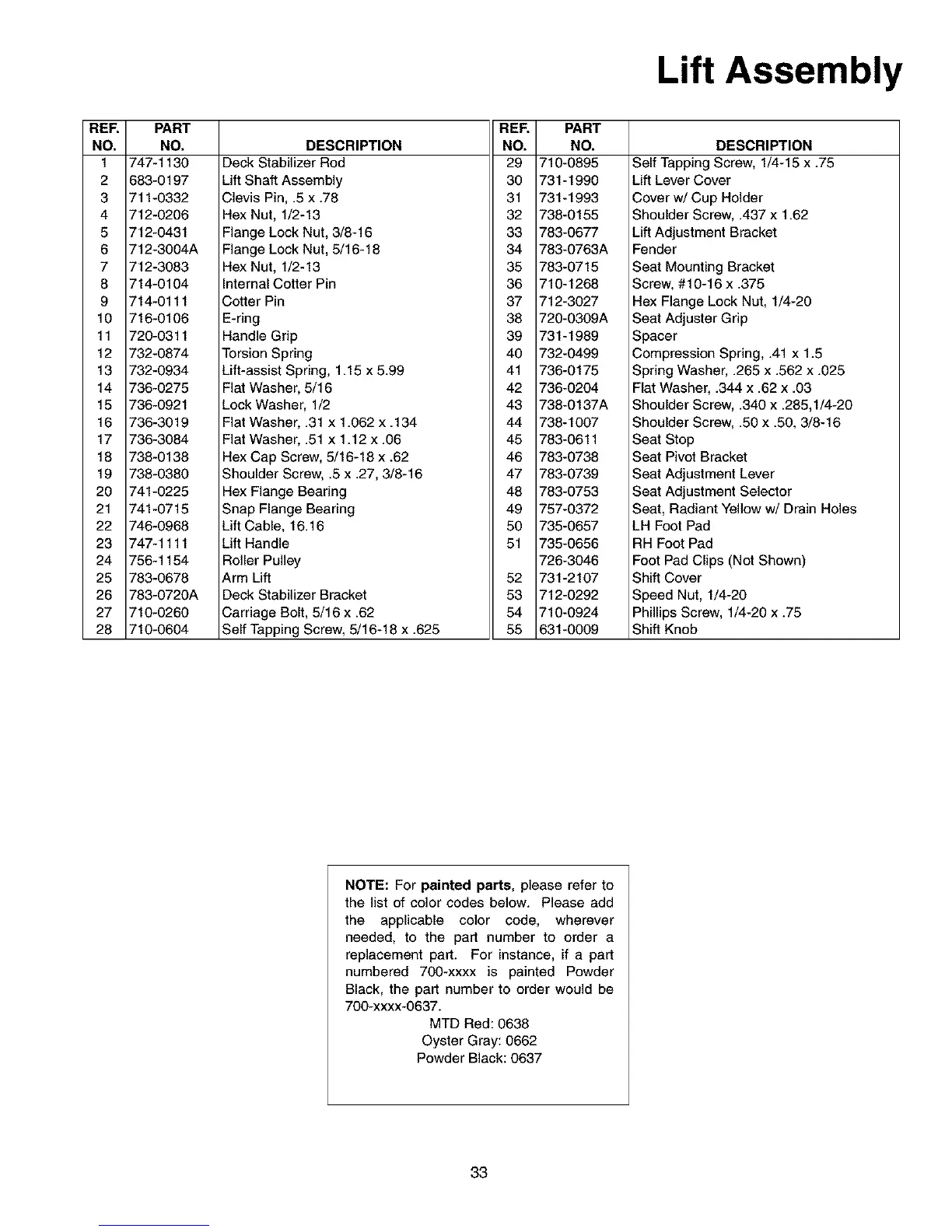

Lift Assembly
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
PART
NO.
747-1130
683-0197
711-0332
712-0206
712-0431
712-3004A
712-3083
714-0104
714-0111
716-0106
720-0311
732-0874
732-0934
736-0275
736-0921
736-3019
736-3084
738-0138
738-0380
741-0225
741-0715
746-0968
747-1111
756-1154
783-0678
783-0720A
710-0260
710-0604
DESCRIPTION
Deck Stabilizer Rod
Lift Shaft Assembly
Clevis Pin, .5 x .78
Hex Nut, 1/2-13
Flange Lock Nut, 3/8-16
Flange Lock Nut, 5/16-18
Hex Nut, 1/2-13
Internal Cotter Pin
Cotter Pin
E-ring
Handle Grip
Torsion Spring
Lift-assist Spring, 1.15 x 5.99
Flat Washer, 5/16
Lock Washer, 1/2
Flat Washer, .31 x 1.062 x. 134
Flat Washer, .51 x 1.12 x .06
Hex Cap Screw, 5/16-18 x .62
Shoulder Screw, .5 x .27, 3/8-16
Hex Flange Bearing
Snap Flange Bearing
Lift Cable, 16.16
Lift Handle
Roller Pulley
Arm Lift
Deck Stabilizer Bracket
Carriage Bolt, 5/16 x .62
Self Tapping Screw, 5/16-18 x .625
REP. PART
NO. NO.
29 710-0895
30 731-1990
31 731-1993
32 738-0155
33 783-0677
34 783-0763A
35 783-0715
36 710-1268
37 712-3027
38 720-0309A
39 731-1989
40 732-0499
41 736-0175
42 736-0204
43 738-0137A
44 738-1007
45 783-0611
46 783-0738
47 783-0739
48 783-0753
49 757-0372
50 735-0657
51 735-0656
726-3046
52 731-2107
53 712-0292
54 710-0924
55 631-0009
DESCRIPTION
Self Tapping Screw, 1/4-15 x .75
Lift Lever Cover
Cover w/Cup Holder
Shoulder Screw, .437 x 1.62
Lift Adjustment Bracket
Fender
Seat Mounting Bracket
Screw, #10-16 x .375
Hex Flange Lock Nut, 1/4-20
Seat Adjuster Grip
Spacer
Compression Spring, .41 x 1.5
Spring Washer, .265 x .562 x .025
Flat Washer, .344 x .62 x .03
Shoulder Screw, .340 x .285,1/4-20
Shoulder Screw, .50 x .50, 3/8-16
Seat Stop
Seat Pivot Bracket
Seat Adjustment Lever
Seat Adjustment Selector
Seat, Radiant Yellow w/Drain Holes
LH Foot Pad
RH Foot Pad
Foot Pad Clips (Not Shown)
Shift Cover
Speed Nut, 1/4-20
Phillips Screw, 1/4-20 x .75
Shift Knob
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Powder
Black, the part number to order would be
700-xxxx-0637.
MTD Red: 0638
Oyster Gray: 0662
Powder Black: 0637
33
