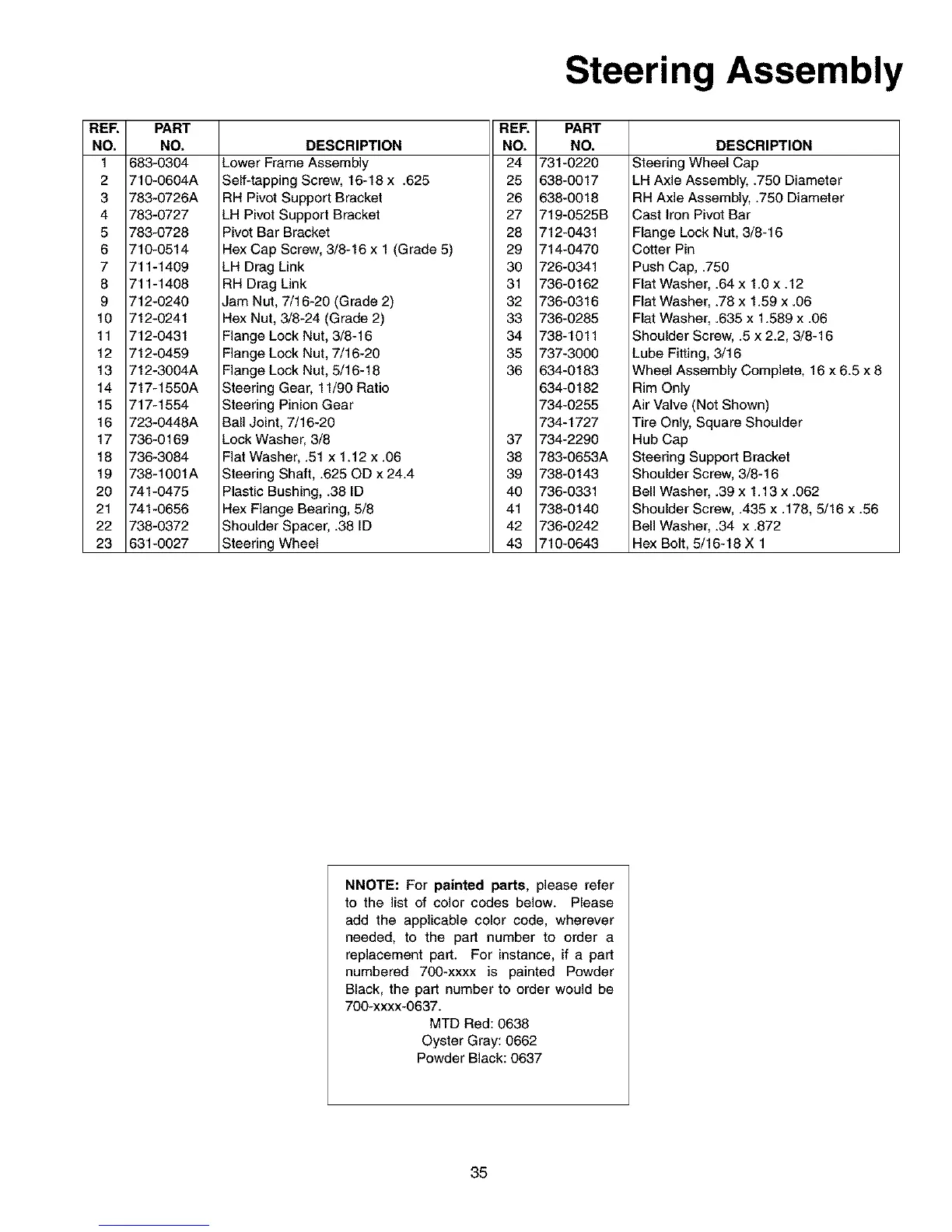

Troy-Bilt 809 - Steering Assembly

Steering Assembly
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
PART
NO.
683-0304
710-0604A
783-0726A
783-0727
783-0728
710-0514
711-1409
711-1408
712-0240
712-0241
712-0431
712-0459
712-3004A
717-1560A
717-1564
723-0448A
736-0169
736-3084
738-1001A
741-0475
741-0656
738-0372
631-0027
DESCRIPTION
Lower Frame Assembly
Self-tapping Screw, 16-18 x .625
RH Pivot Support Bracket
LH Pivot Support Bracket
Pivot Bar Bracket
Hex Cap Screw, 3/8-16 x 1 (Grade 6)
LH Drag Link
RH Drag Link
Jam Nut, 7/16-20 (Grade 2)
Hex Nut, 3/8-24 (Grade 2)
Flange Lock Nut, 3/8-16
Flange Lock Nut, 7/16-20
Flange Lock Nut, 5/16-18
Steering Gear, 11/90 Ratio
Steering Pinion Gear
Ball Joint, 7/16-20
Lock Washer, 3/8
Flat Washer, .51 x 1.12 x .06
Steering Shaft, .625 OD x 24.4
Plastic Bushing, .38 ID
Hex Flange Bearing, 5/8
Shoulder Spacer, .38 ID
Steering Wheel
REF. PART
NO. NO.
24 731-0220
25 638-0017
26 638-0018
27 719-0625B
28 712-0431
29 714-0470
30 726-0341
31 736-0162
32 736-0316
33 736-0285
34 738-1011
35 737-3000
36 634-0183
634-0182
734-0255
734-1727
37 734-2290
38 783-0653A
39 738-0143
40 736-0331
41 738-0140
42 736-0242
43 710-0643
DESCRIPTION
Steering Wheel Cap
LH Axle Assembly, .750 Diameter
RH Axle Assembly, .750 Diameter
Cast Iron Pivot Bar
Flange Lock Nut, 3/8-16
Cotter Pin
Push Cap, .750
Flat Washer, .64 x 1.0 x .12
Flat Washer, .78 x 1.59 x .06
Flat Washer, .635 x 1.589 x .06
Shoulder Screw, .5 x 2.2, 3/8-16
Lube Fitting, 3/16
Wheel Assembly Complete, 16 x 6.5 x 8
Rim Only
Air Valve (Not Shown)
Tire Only, Square Shoulder
Hub Cap
Steering Support Bracket
Shoulder Screw, 3/8-16
Bell Washer, .39 x 1.13 x .062
Shoulder Screw, .435 x .178, 5/16 x .56
Bell Washer, .34 x .872
Hex Bolt, 5/16-18 X 1
NNOTE: For painted parts, please refer
to the list of color codes below. Please
add the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Powder
Black, the part number to order would be
700-xxxx-0637.
MTD Red: 0638
Oyster Gray: 0662
Powder Black: 0637
35
