11se c t i O n 3 — as s e M b l y & se t -up
Side Discharge Chute
Your mower is shipped as a mulcher. To convert to side discharge,
make sure grass catcher is off of the unit and rear discharge door
is closed.
Slide two hooks of side discharge chute under hinge pin on 2.
mulching plug assembly. Lower the mulching plug. Do not
remove side mulching plug at any time, even when you are
not mulching.

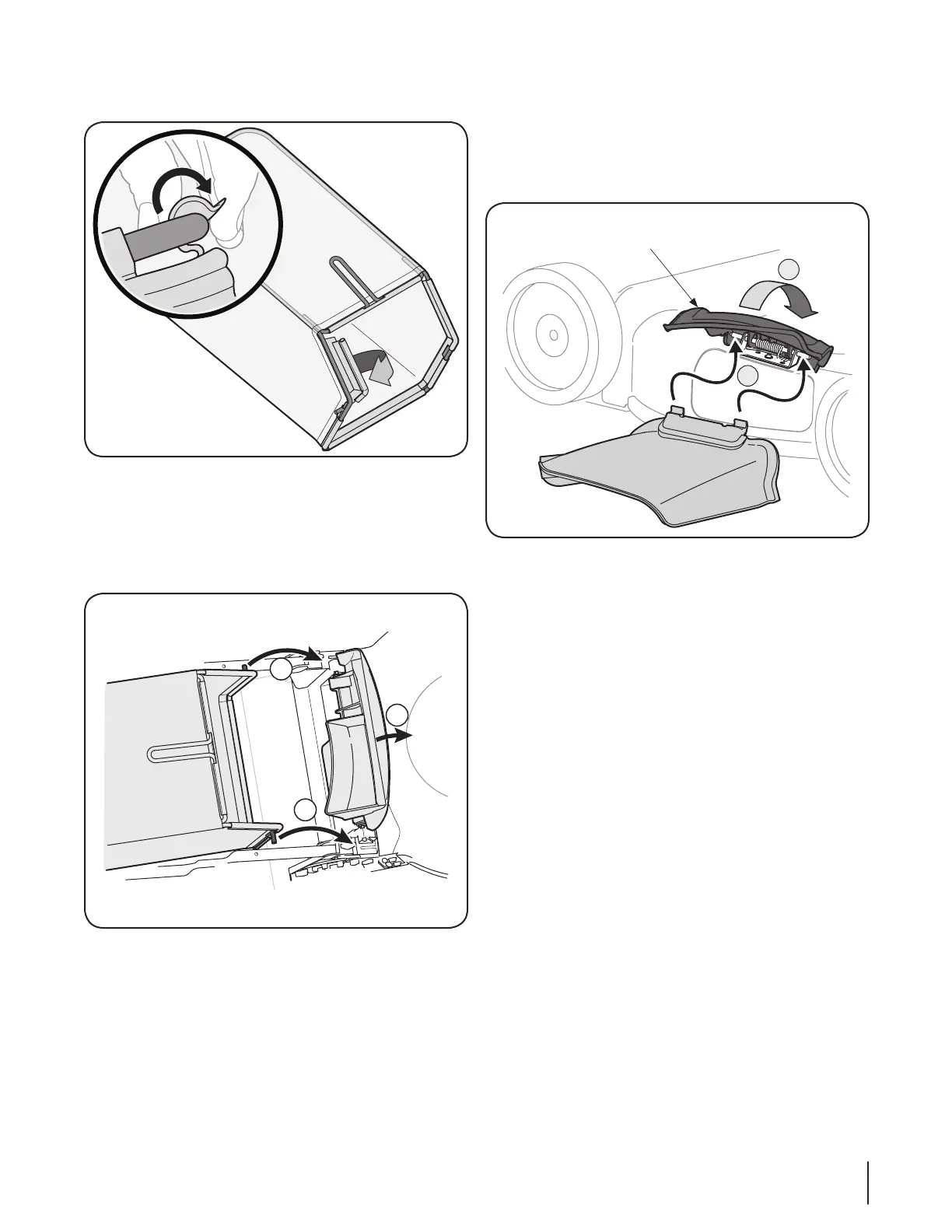

Slip plastic channel of grass bag over hooks on the b.
frame. See Fig. 3-7.
Follow steps below to attach grass catcher:2.
Lift rear discharge door.a.
b.
brackets as shown in Fig. 3-8. Let go of discharge
door so that it rests on the grass catcher.
To remove grass catcher, lift rear discharge door on the mower.
Lift grass catcher up and of the slots in the handle brackets.
Release rear discharge door to allow it to close rear opening of
mower.
