Troy-Bilt TB320BV - Parts List

E24
PARTS LIST

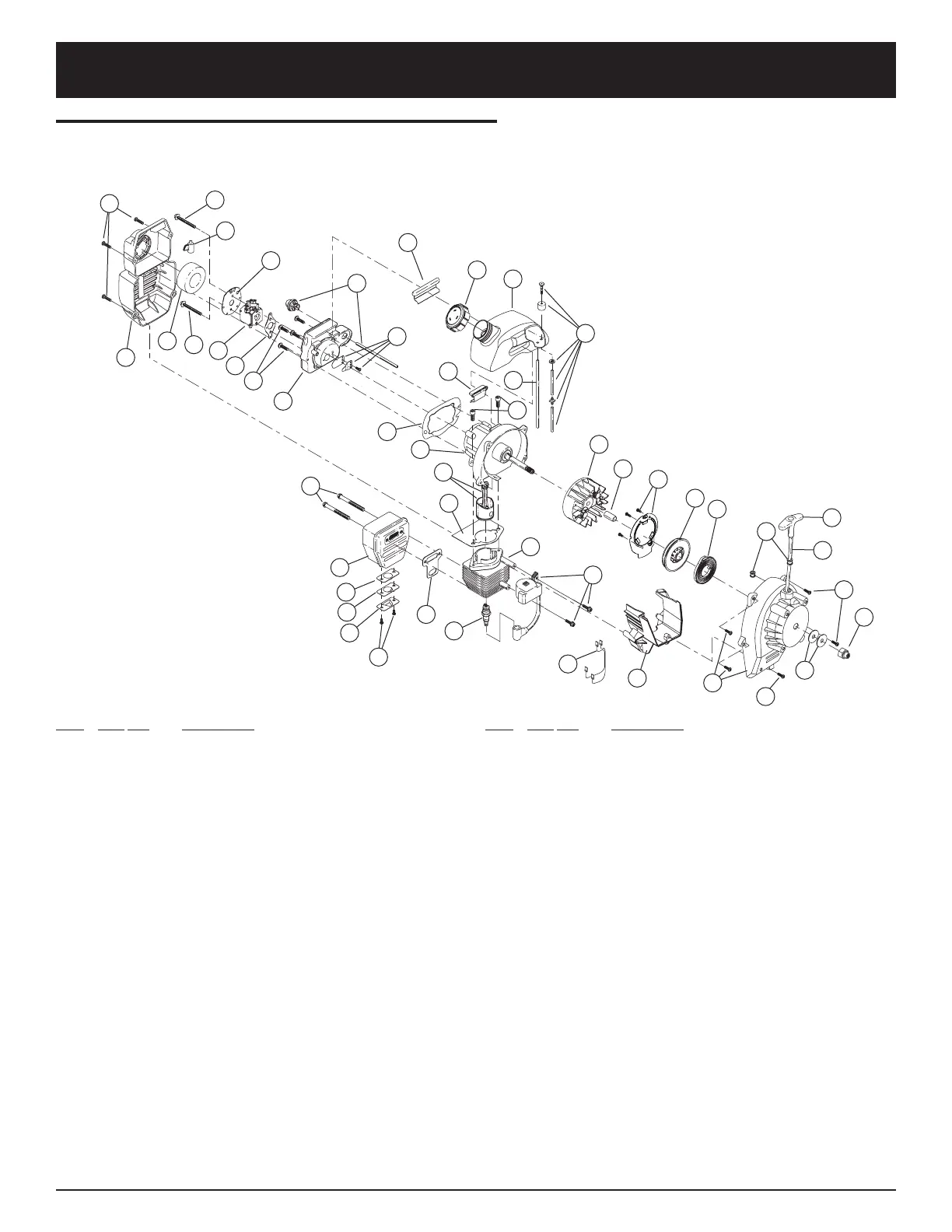

HOUSING PARTS - MODEL TB320BV
2-CYCLE GAS MULCHING BLOWER VACUUM
30
1
2
3
6
8
10
3
4
5
9
11
12
13
43
44
17
45
19
14
16
15
18
21
22
24
25
26
27
28
29
46
30
31
20
32
33
42
34
36
38
23
7
Item Part No. Description
1 753-04810 Muffler Cover Assembly (includes 2 & 30)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw
4 753-04227 Choke Knob
5 753-1194 Choke Plate
6 753-04331 Carburetor Assembly (includes 7 & 18)
7 791-610675 Carburetor Gasket
8 791-181860 Carb Mount Screw
9 791-683974B Primer & Hose Assembly
10 753-1196 Carb Mount Assembly (includes 8, 11 & 12)
11 791-684451 Reed Assembly
12 753-1208 Carburetor Mount Gasket
13 753-04747 Crankcase Service Assembly (includes 8)
14 791-612134 Rear Mounting Pad
15 753-04310 Fuel Tank Assembly (includes 16-18)
16 753-04084 Fuel Cap
17 791-181086 Fuel Return Line
18 753-04886 Fuel Line Assembly
19 791-145308 Front Mounting Pad
20 753-04409 Shroud Extension (includes 30)
21 791-182736 Flywheel Assembly
22 753-04748 Spacer
23 753-04705 Pulley Retainer
24 753-04459 Recoil Pulley Assembly (includes 25 & 28)
25 753-04286 Recoil Spring
26 791-611061 Rope Guide
Item Part No. Description
27 791-181079 Pull Handle
28 791-613103 Rope
29 791-181862 Housing Screw
30 791-181345 Cover Screw
31 753-04749 Starter Housing Assembly (includes 23-30)
32 791-182402 Wire Lead
33 753-04336 Module Assembly
34 791-610311B Spark Plug
35 753-04618 Muffler Assembly (includes 36-41)
36 753-04619 Exhaust Gasket
37 753-04689 Spark Arrestor Screen
38 753-04690 Plate
39 753-04691 Hood
40 753-04315 Screw
41 753-04620 Muffler Mounting Bolts
42 753-04323 Cylinder Assembly (includes 44 & 45)
43 753-04367 Piston and Rod Assembly
44 753-04182 Cylinder Gasket
45 791-182723 Cylinder Bolt
46 791-181524 Crankshaft Extension
47 791-182396 Washer
* 753-1209 Piston Ring
* 753-04750 Short Block Assembly
(includes 8, 13, 34, 42-45)
* Items Not Shown
