Troy-Bilt TB430 User Manual

Fuel Cap
Starter
Rope Grip
Throttle
Control
Spark Plug
Muffler
On/Off Switch
Primer Bulb
Choke Lever
Air Filter
Cover
Handle
Cruise Control
Special Use
Tube
General Use
Tube
Upper Blower
Tube
6

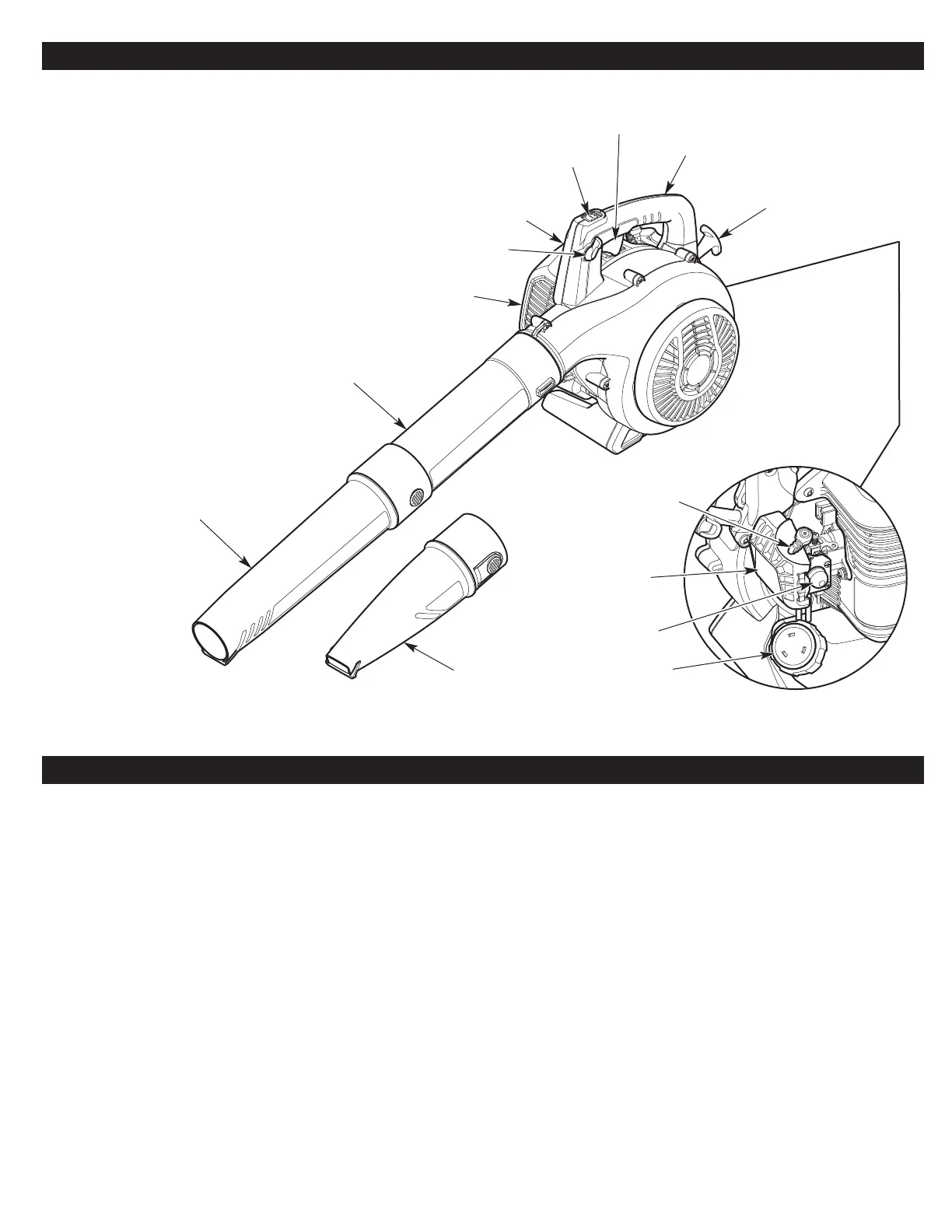

KNOW YOUR UNIT
APPLICATIONS
• Cleaning yards, garages, driveways, porches, patios, around
walls, fences and more
SPECIFICATIONS*
* All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any
time without notice.
NO ASSEMBLY TOOLS REQUIRED
** Measured per ANSI B175.2.
Engine Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-Cooled, 2-Cycle
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 cc (1.52 cu. in.)
Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.025 in. (0.635 mm)
Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Champion® RDJ7J or equivalent plug
Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel/Oil Mixture
Fuel/Oil Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40:1
Fuel Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 oz. (414 ml)
Approximate Unit Weight (No fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 10 lbs. (4.1 - 4.5 kg)
Air Volume** (measured at: upper tube / general tube / special tube) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430 / 320 / 75 cfm (12 / 9 / 2 m
3
/min)
Air Speed (Peak)** (measured at: upper tube / general tube / special tube). . . . . . . . . . . . . . . . . . . . . 90 / 145 / 200 mph (145 / 230 / 320 km/h)
Air Speed (Average)** (measured at: upper tube / general tube / special tube) . . . . . . . . . . . . . . . . . . 75 / 120 / 160 mph (120 / 190 / 255 km/h)

Troy-Bilt TB430 Specifications

General

Power Source	Gasoline
Engine Type	2-cycle
Engine Displacement	25 cc
CFM	430 CFM
Type	Handheld Blower
