Troy-Bilt TB430 User Manual

ASSEMBLY
7
WARNING:
To avoid serious personal injury and
damage to the unit, shut the unit off before removing or
installing blower tubes or nozzles.

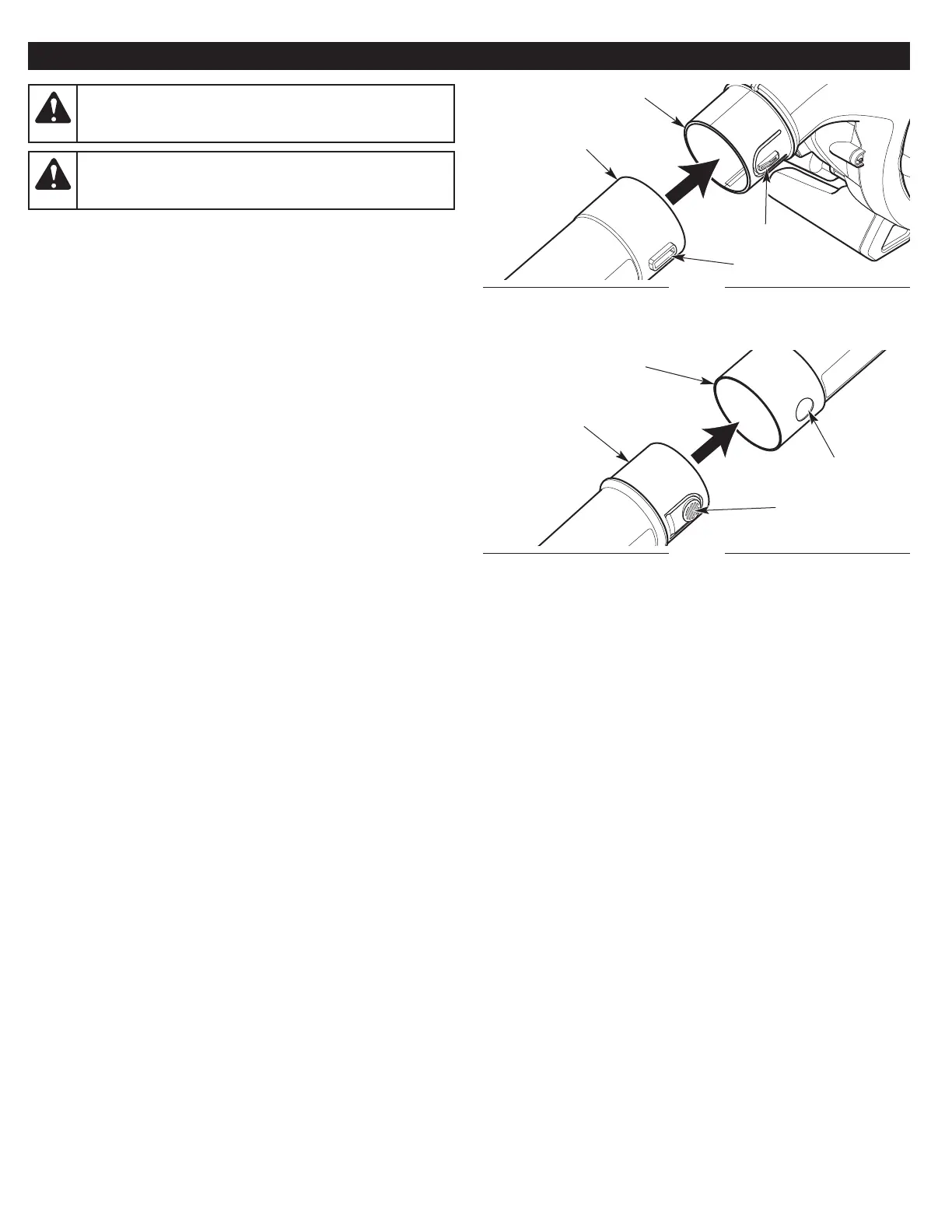

Fig. 1
Blower Outlet
Upper
Blower Tube
Tab
Slot
WARNING:
To prevent serious personal injury, never
operate the unit without the upper blower tube firmly
installed.
ASSEMBLING THE UNIT
• Always install the upper blower tube.
• The general use tube and special use tube are optional.
• Use the general use tube for most operations.
• Only use the special use tube to concentrate and intensify the
air flow when needed. DO NOT use the special use tube for
general work or for long periods.
Installing the Upper Blower Tube
1. Set the unit on a flat, level surface.
2. Align the slot on the upper blower tube with the tab on the
blower outlet (Fig. 1).
3. Push the upper blower tube onto the blower outlet until the tab
locks securely into the slot (Fig. 1).
Installing the General Use Tube or Special Use Tube
1. Set the unit on a flat, level surface.
2. Align the tab on the general use tube or special use tube with
the hole on the upper blower tube (Fig. 2).
3. Push the general use tube or special use tube into the upper
blower tube until the tab locks securely into the hole (Fig. 2).
Removing the General Use Tube or Special Use Tube
1. Set the unit on a flat, level surface.
2. Firmly press the tab on the general use tube or special use tube
inward and pull the general use tube or special use tube out of
the upper blower tube (Fig. 2).
Fig. 2
Upper Blower Tube
General Use Tube or
Special Use Tube
Hole
Tab

Troy-Bilt TB430 Specifications

General

Power Source	Gasoline
Engine Type	2-cycle
Engine Displacement	25 cc
CFM	430 CFM
Type	Handheld Blower
