Tru-Test XRP2 User Manual

2
Overview
This user manual contains installation and user instructions for the Tru-Test XRP2 EID
1
Panel Reader System which identifies and reads electronic tags
on individual animals, allowing for accurate traceability and management of stock.
The Tru-Test XRP2 EID Panel Reader System consists of an XRP2 EID Panel Reader with a Large or Small antenna.
The Tru-Test XRP2 EID Panel Reader (the panel reader) is a dual mode FDX-B / HDX EID reader optimized for high performance with ISO animal tags,
operating at 134.2 KHz with read distances of up to 1 m, depending on the tag and environmental conditions. It includes a fast auto-tuning
technique and Digital Signal Processing capability to increase read range and to reduce unwanted interference effects.
A Tru-Test Large or Small antenna is connected to the panel reader; the panel reader may be connected to a Tru-Test weigh scale indicator or to a PC.

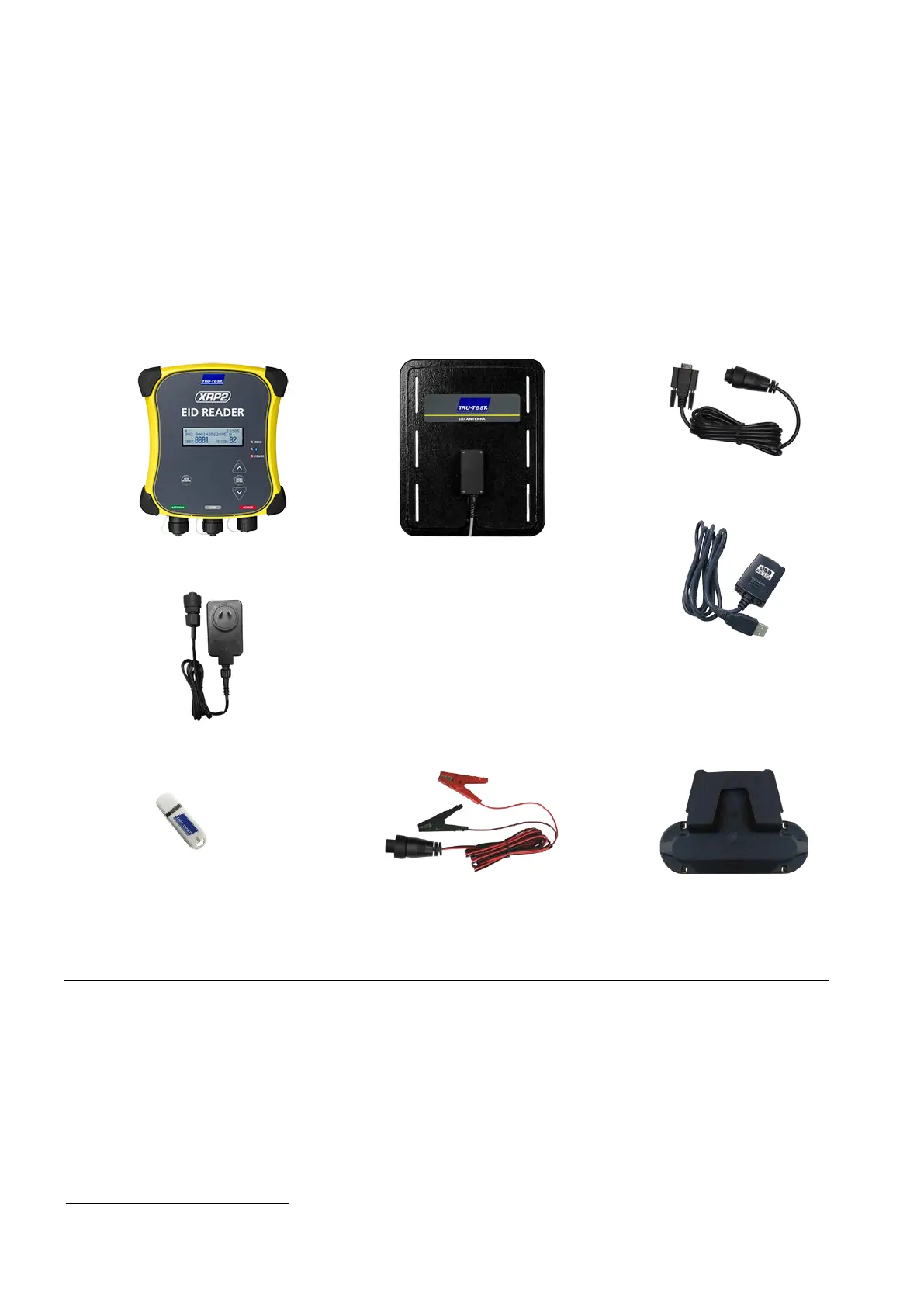

What’s in the box?
Check that you have all of the following items. If anything is missing, contact your supplier.
XRP2 panel reader
(the panel reader)
Large or Small antenna
(may be supplied separately)
The 5 m extension lead supplied may
be used to connect the antenna to
the reader (optional).
Panel Reader-Serial cable
Connects the panel reader to a
weigh scale indicator (an indicator)
Serial-USB adaptor cable
Together with Panel Reader-Serial
cable, provides connection to a PC
Mains power adaptor
(differs depending on region)
USB flash drive
Contains Data Link for PC software
and reference information
Battery leads
Mounting bracket
Optional accessories
These optional accessories may be ordered separately from your local Tru-Test representative. They are not required for a typical setup.
• Dual antenna adaptor - used to connect two antennas to a single panel reader. See Using two antennas on page 5.
• Synchronisation cable - used to connect two panel readers together. See Synchronising two panel readers on page 6.
1
EID = Electronic Identification. This term is equivalent to RFID = Radio Frequency Identification, in respect of this and similar products.
