5

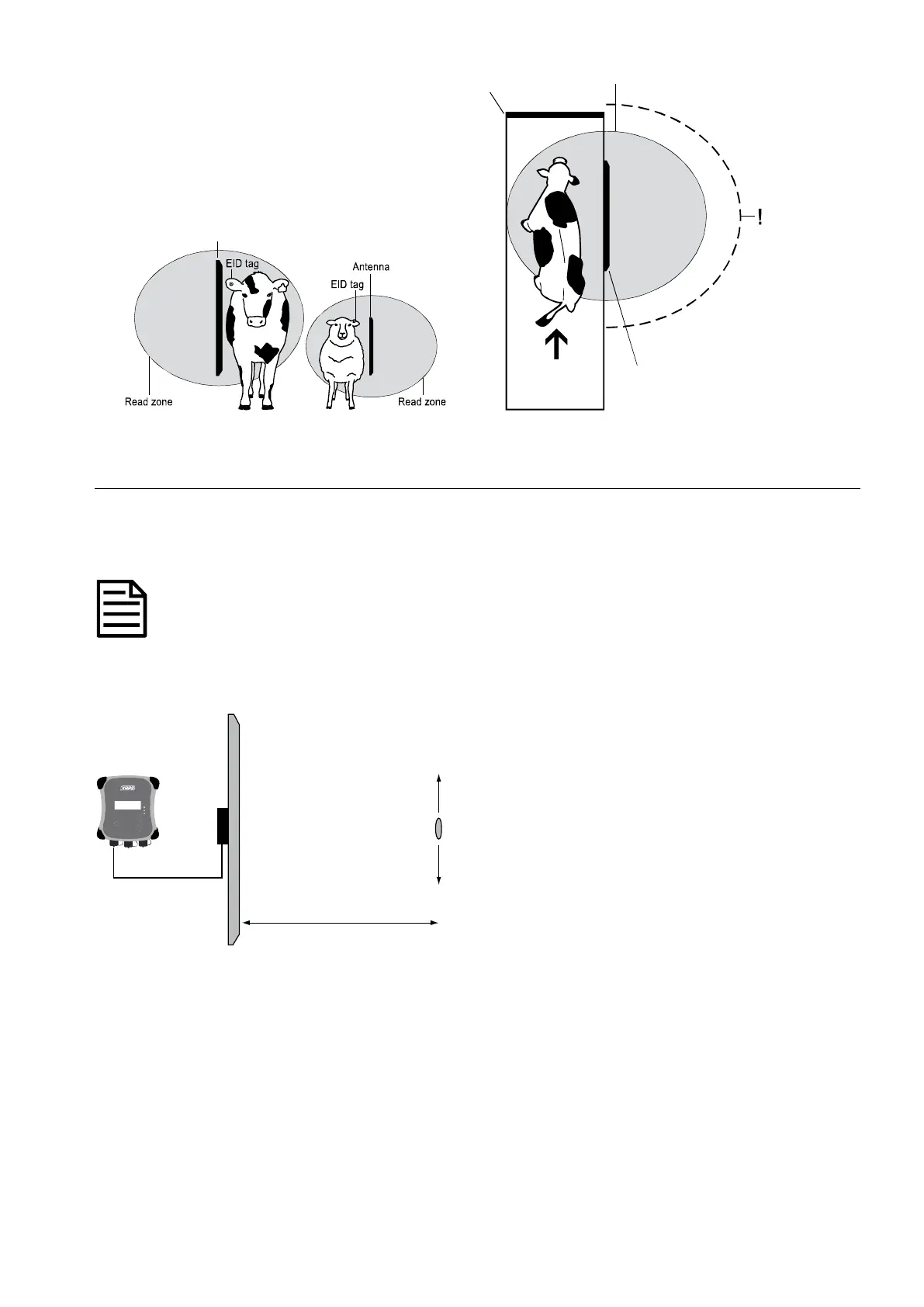

Front of crush/chute,
weigh crate or drafter
Read zone
Animal flow inside
crush/chute, weigh
crate or drafter
Keep animals
out of this area.
Animals inside
this area could
adversely affect
read performance
and may damage
the antenna
Antenna
After you have installed the antenna and reader, connect the antenna to the panel reader. An extension lead may be required (supplied with the
antenna).
Alternative installation options
Using two antennas
If an increased operating area is required, two antennas may be connected to a single panel reader using a Dual Antenna Adaptor.
A dual antenna adaptor can be ordered by contacting your local Tru-Test representative.
A dual antenna adaptor must not be used with only one antenna.
A single antenna may read a tag as far as 1 m away, dependant on the installation:
Tag
Tag travel
Antenna
Panel
Reader
~1 m
