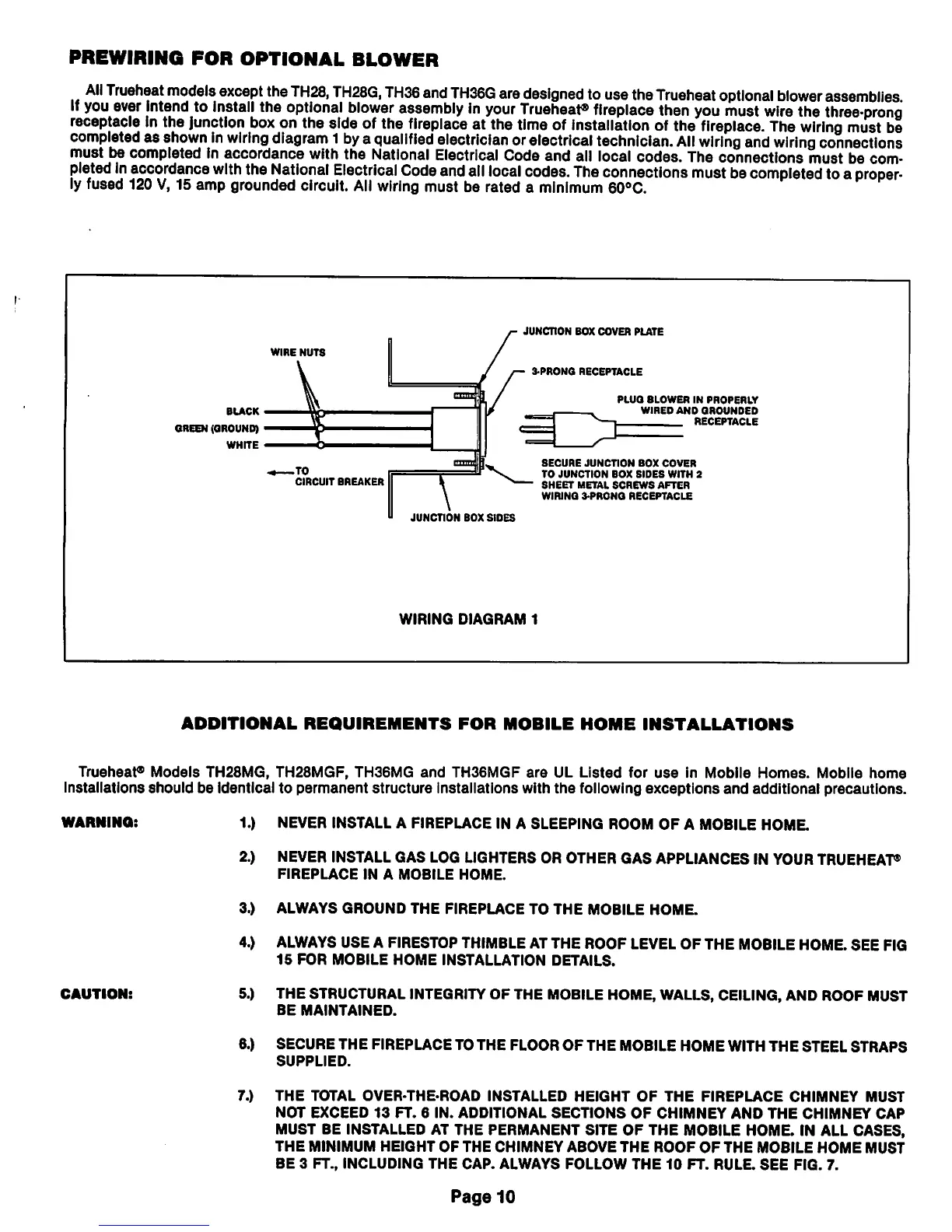

PREWIRING
FOR
OPTIONAL
BLOWER
All
Trueheat
models
except
the
TH28,
TH28G,
TH36
and
TH36G
are
designed
tousethe
Trueheat
optional
blower
assemblies
If
you
ever
Intend
to
install
the
optional
blower
assembly
in
your
Trueheat®
fireplace
then
you
must
wire
the
three-prong
receptacle
in
the
Junction
box
onthesideofthe
fireplace
at the
time
of
installation
ofthe
fireplace.
The
wiring
must
be
completed
as
shown
in
wiring
diagram
1
by
a
qualified
electrician
or
electrical
technician.
All
wiring
and
wiring
connections
must be completed inaccordance
with
the
National
Electrical
Code
and all
local
codes. Theconnections must be com
pleted
in
accordance
with
the
National
Electrical
Code
and
all
local
codes.
The
connections
must
be
completed
toa
proper
ly fused 120
V,
15 amp grounded circuit.
All
wiring must be rated a minimum 60°C.
WIRE
NUTS
BLACK
•
GREEN (GROUND) '
WHITE
-TO
CIRCUIT
BREAKER
JUNCTION
BOX
SIDES
JUNCTION
BOX
COVER
PLATE
3-PRONG
RECEPTACLE
PLUO
BLOWER
IN
PROPERLY
WIRED
AND
GROUNDED
RECEPTACLE
SECURE
JUNCTION
BOX
COVER
TO
JUNCTION
BOX
SIDES
WITH
2
SHEET
METAL
SCREWS
AFTER
WIRING
3-PRONG
RECEPTACLE
WIRING
DIAGRAM
1
ADDITIONAL
REQUIREMENTS
FOR
MOBILE
HOME
INSTALLATIONS
Trueheat®
Models
TH28MG,
TH28MGF,
TH36MG
and
TH36MGF
are
UL
Listed
for
use
in
Mobile
Homes.
Mobile
home
Installations
should
be
identical to
permanent
structure
installations with
the
following
exceptions
and
additional precautions.
WARNINQ:
CAUTION:
1.)
NEVER
INSTALL
A
FIREPLACE
IN A
SLEEPING
ROOM
OF
A
MOBILE
HOME
2.) NEVER INSTALL
GAS
LOG LIGHTERS OR
OTHER
GAS
APPLIANCES
IN YOUR TRUEHEAT®
FIREPLACE
IN A
MOBILE
HOME.
3.)
ALWAYS
GROUND
THE
FIREPLACE
TO
THE
MOBILE
HOME.
4.)
ALWAYS
USE A FIRESTOP THIMBLE AT
THE
ROOF
LEVEL OF
THE
MOBILE HOME.
SEE
FIG
15
FOR
MOBILE
HOME
INSTALLATION
DETAILS.
5.) THE STRUCTURAL INTEGRITY OF THE MOBILE HOME, WALLS, CEILING, AND ROOF MUST
BE
MAINTAINED.
6.) SECURE THE FIREPLACE TO THE FLOOR OF THE MOBILE HOME WITH THE STEEL
STRAPS
SUPPLIED.
7.)
THE
TOTAL
OVER-THEROAD
INSTALLED
HEIGHT
OF
THE
FIREPLACE
CHIMNEY
MUST
NOT
EXCEED
13
FT.
6
IN.
ADDITIONAL
SECTIONS
OF
CHIMNEY
AND
THE
CHIMNEY
CAP
MUST BE INSTALLED AT THE
PERMANENT
SITE
OF
THE
MOBILE HOME. IN
ALL
CASES,
THE
MINIMUM
HEIGHT
OF
THE
CHIMNEY
ABOVE
THE
ROOF
OF
THE
MOBILE
HOME
MUST
BE
3 FT.,
INCLUDING
THE
CAP.
ALWAYS
FOLLOW
THE
10
FT.
RULE.
SEE
FIG. 7.
Page
10
