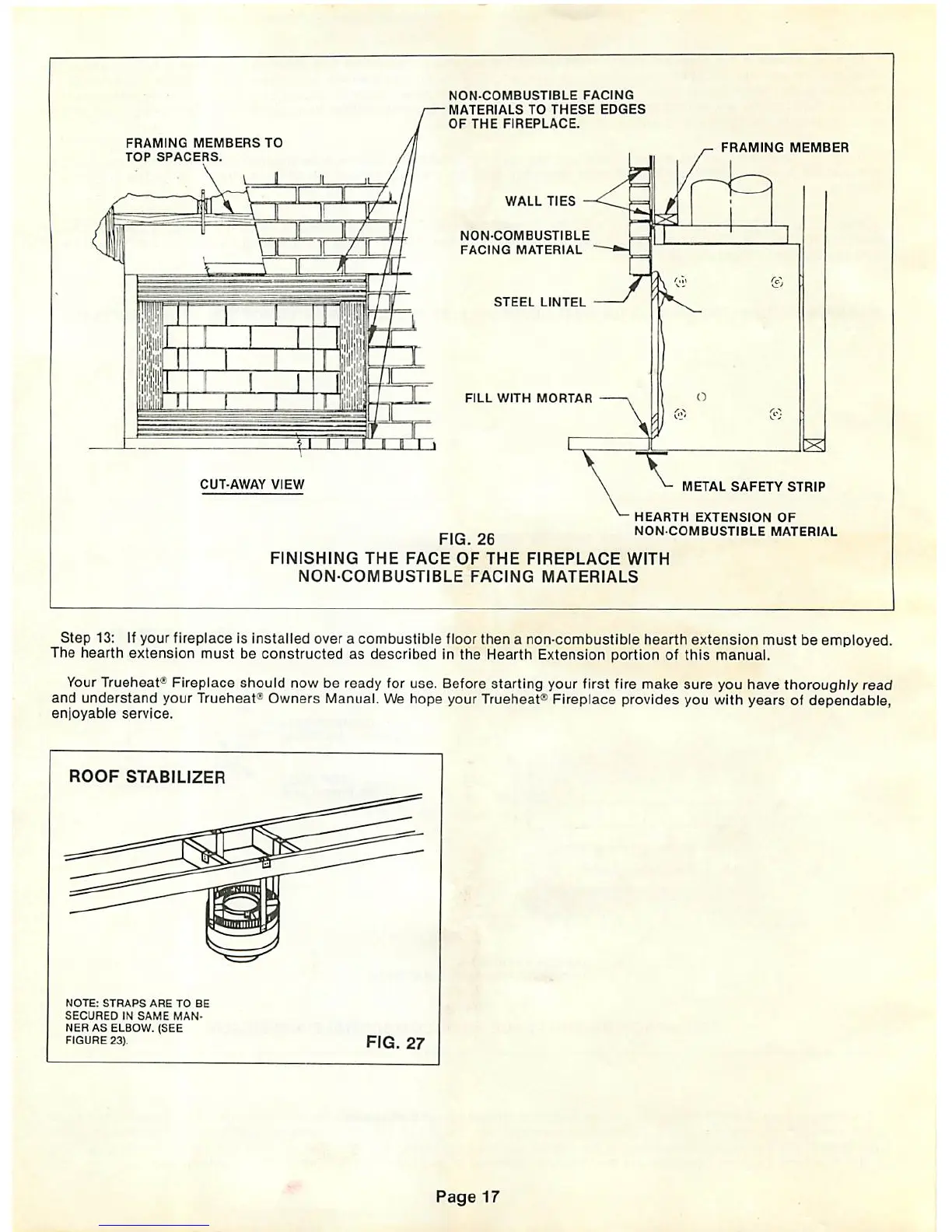

Trueheat TH36 - Roof Stabilizer; Finishing the Face of Fireplace with Non-Combustible Facing Materials

FRAMING MEMBERS TO
TOP SPACERS.
CUT-AWAY VIEW
NON-COMBUSTIBLE FACING
MATERIALS TO THESE EDGES
OF THE FIREPLACE.
WALL TIES
NON-COMBUSTIBLE
FACING MATERIAL
STEEL LINTEL
FILL WITH MORTAR
FIG. 26
FINISHING THE FACE OF THE FIREPLACE WITH
NON-COMBUSTIBLE FACING MATERIALS
FRAMING MEMBER
O
s
METAL SAFETY STRIP
HEARTH EXTENSION OF
NON-COMBUSTIBLE MATERIAL
Step 13: Ifyour fireplace is installed over a combustible floor then a non-combustible hearth extension must be employed.
The hearth extension must be constructed as described in the Hearth Extension portion of this manual.
Your Trueheat* Fireplace should now be ready for use. Before starting your first fire make sure you have thoroughly read
and understand your Trueheat1 Owners Manual. We hope your Trueheat® Fireplace provides you with years of dependable,
enjoyable service.
ROOF STABILIZER
NOTE: STRAPS ARE TO BE
SECURED IN SAME MAN
NER AS ELBOW. (SEE
FIGURE 23).
FIG. 27
Page 17
