7A.) THE FINAL INSTALLED CHIMNEY HEIGHT IS 13 FT.
8.) ALL MOBILE HOME INSTALLATIONS REQUIRE THAT THE FIREPLACE BE INSTALLED WITH
OUTSIDE AIR AND GLASS DOORS. THE OUTSIDE AIR MUST BE THE TRUEHEAT1 OA-6
MOBILE HOME OUTSIDE AIR KIT.
9.) THE TRUEHEAT" MODELS TH28MG, TH28MGF, TH36MG and TH36MGF MEET ALL HUD RE
QUIREMENTS AND ARE UL LISTED FOR MOBILE HOME INSTALLATIONS.
10.) IF THE MOBILE HOME ROOF/CEILING JOIST IS LARGER THAN 6 IN., THE THIMBLE EXTEN
SION MUST BE USED. THE THIMBLE EXTENSION SHOULD BE INSTALLED INSIDE THE
FIRESTOP THIMBLE TUBE AND CUT TO THE DESIRED LENGTH SO THAT IT EXTENDS
THROUGH THE ENTIRE CEILING JOIST, ATTIC AND ROOF JOIST AREA.
10A.)THE MOBILE HOME CHIMNEY TERMINATION KIT MUST BE SECURED WITH 3 SHEET
METAL SCREWS BECAUSE THEY DO NOT HAVE THE BUTTON LOCK. THIS SECTION OF
CHIMNEY AND THE CHIMNEY CAP MUST BE REMOVED SO THAT THE TOTAL TRUCKABLE
HEIGHT OF THE CHIMNEY DOES NOT EXCEED 13 FT. 6 IN. WHEN THE MOBILE HOME IS
BEING TRANSPORTED.
11.) IF THE FIREPLACE IS INSTALLED IN A MOBILE HOME WITH A CATHEDRAL CEILING, THE
THIMBLE EXTENSION MUST BE EMPLOYED. FIG 16 ILLUSTRATES THE PROPER FIRESTOP
THIMBLE INSTALLATION FOR CATHEDRAL CEILINGS. BE SURE TO USE THE THIMBLE
SHIELD EXTENSION AS WELL AS THE THIMBLE TUBE EXTENSION.
12.) ALWAYS COVER THE TOP OF THE CHIMNEY WITH PLASTIC BEFORE INSTALLATION OF
THE CHIMNEY CAP AND FINAL PERMANENT INSTALLATION TO PREVENT RAIN AND
DEBRIS FROM BLOWING IN THE CHIMNEY PRIOR TO THE INSTALLATION OF THE FINAL
CHIMNEY SECTIONS AND CAP. THE PLASTIC MUST BE ATTACHED SECURELY TO PRE
VENT IT FROM BLOWING OFF DURING TRANSIT.

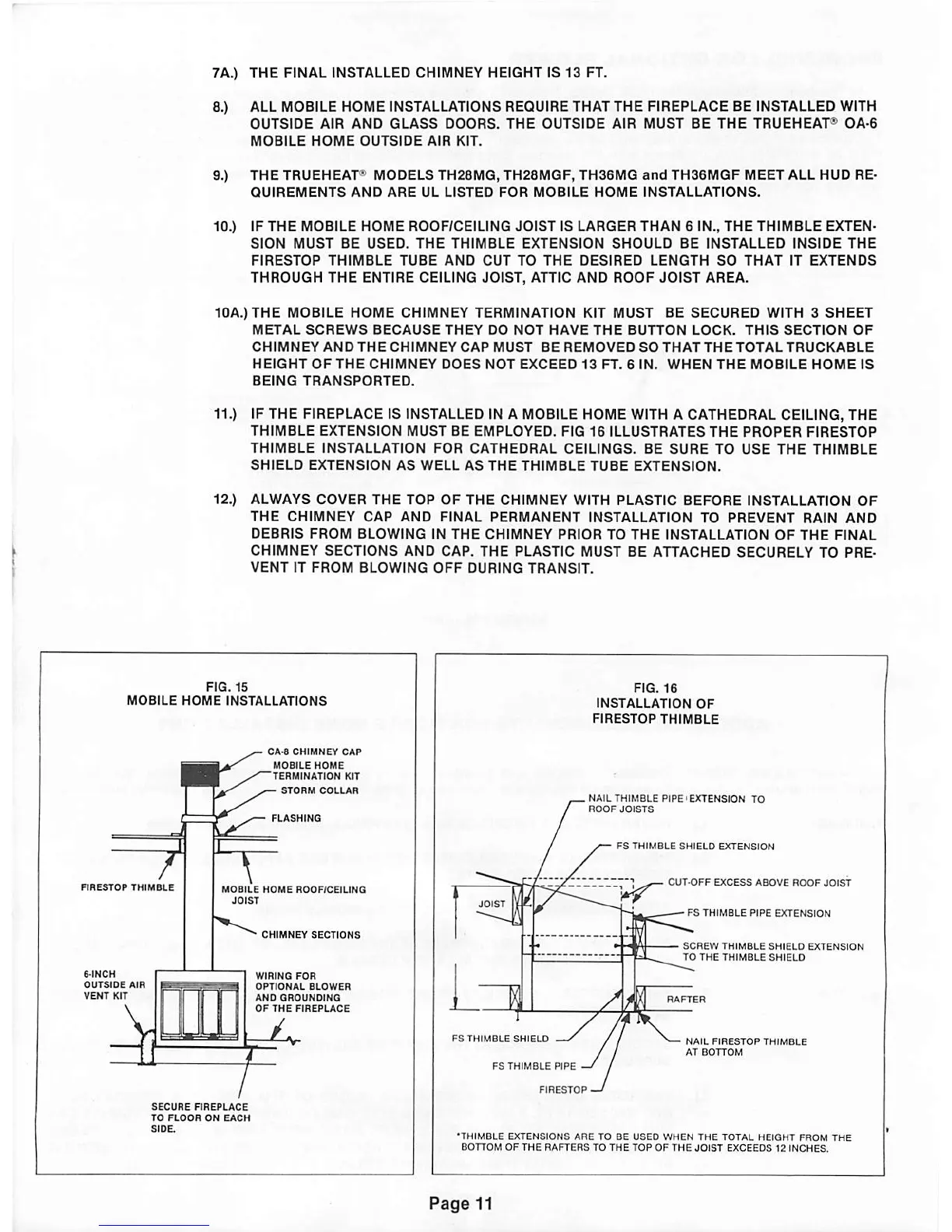

FIG. 15
MOBILE HOME INSTALLATIONS
FIG. 16
INSTALLATION OF
FIRESTOP THIMBLE
FIRESTOP THIMBLE
6-INCH
OUTSIDE AIR
VENT KIT
CA-8 CHIMNEY CAP
MOBILE HOME
TERMINATION KIT
STORM COLLAR
FLASHING
MOBILE HOME ROOF/CEILING
JOIST
CHIMNEY SECTIONS
WIRING FOR
OPTIONAL BLOWER
AND GROUNDING
OF THE FIREPLACE
SECURE FIREPLACE
TO FLOOR ON EACH
SIDE.
FS THIMBLE SHIELD
FS THIMBLE PIPE
FIRESTOP
NAIL THIMBLE PIPE'EXTENSION TO
ROOF JOISTS
FS THIMBLE SHIELD EXTENSION
CUTOFF EXCESS ABOVE ROOF JOIST
• FS THIMBLE PIPE EXTENSION
SCREW THIMBLE SHIELD EXTENSION
TO THE THIMBLE SHIELD
RAFTER
NAIL FIRESTOP THIMBLE
AT BOTTOM
•THIMBLE EXTENSIONS ARE TO BE USED WHEN THE TOTAL HEIGHT FROM THE
BOTTOM OF THE RAFTERS TO THE TOP OF THE JOIST EXCEEDS 12 INCHES.
Page 11
