Trueheat TH36 - Calculating Offsets

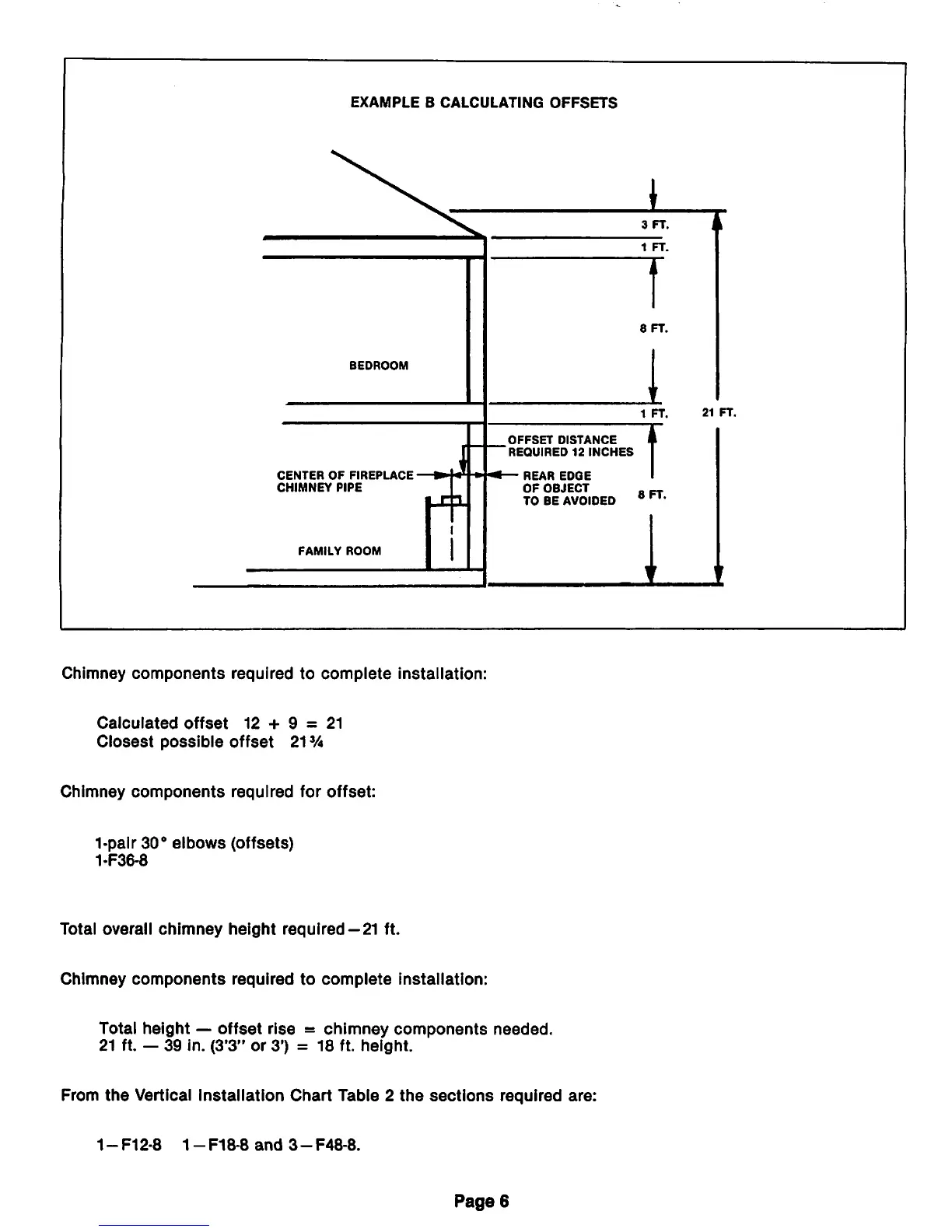

EXAMPLE B CALCULATING OFFSETS
BEDROOM
CENTER OF FIREPLACE -
CHIMNEY PIPE
FAMILY ROOM
Chimney components required to complete installation:
Calculated offset 12 + 9 = 21
Closest possible offset 21%
Chimney components required for offset:
1-palr 30° elbows (offsets)
1-F36-8
Total overall chimney height required —21 ft.
Chimney components required to complete installation:
3 FT.
1 FT.
8 FT.
1 FT. 21 FT.
OFFSET DISTANCE
'REQUIRED 12 INCHES
REAR EDGE
OF OBJECT
TO BE AVOIDED
T
8 FT.
Total height — offset rise = chimney components needed.
21 ft. — 39 in. (3*3" or 3') = 18 ft. height.
From the Vertical Installation Chart Table 2 the sections required are:
1 - F12-8 1 - F18-8 and 3 - F48-8.
Page 6
