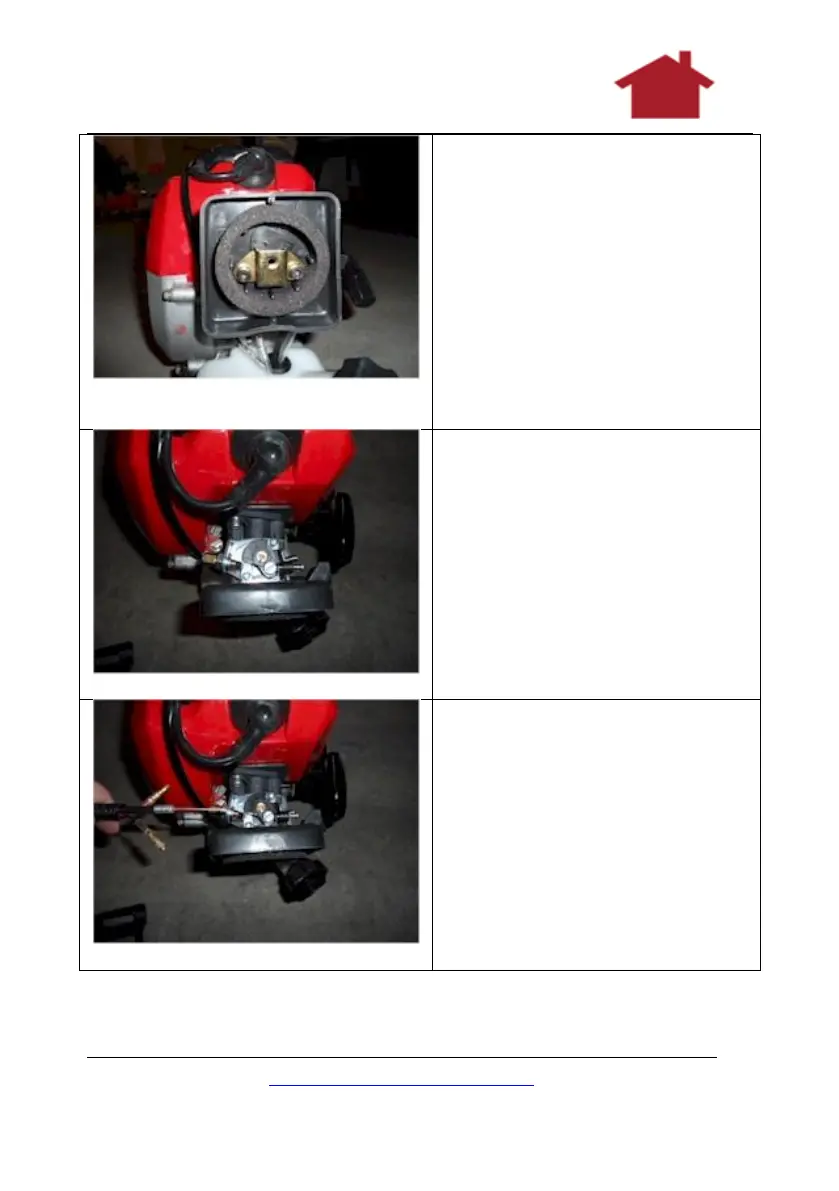

Figure 12 The Main Engine Unit with
Cover Removed
Push the throttle cable
through the brass coloured
nut on the side of the engine
which is now visible
Figure 13 Where The Cables Attach
The round silver piece which
resembles a screw is the
throttle cable receiver. This is
where you put the lug on the
end of the cable. The cable
only slots into one side of this
properly as There is a larger
hole bored out on one side to
receive this lug.
Figure 14 Attaching The Cable
The piece is free moving and
needs to be swung round to
accept the cable. Push the
throttle cable through ready
to attach to the throttle
screw, which is the round
silver screw. Use a tiny
screwdriver to assist you in
doing this.
