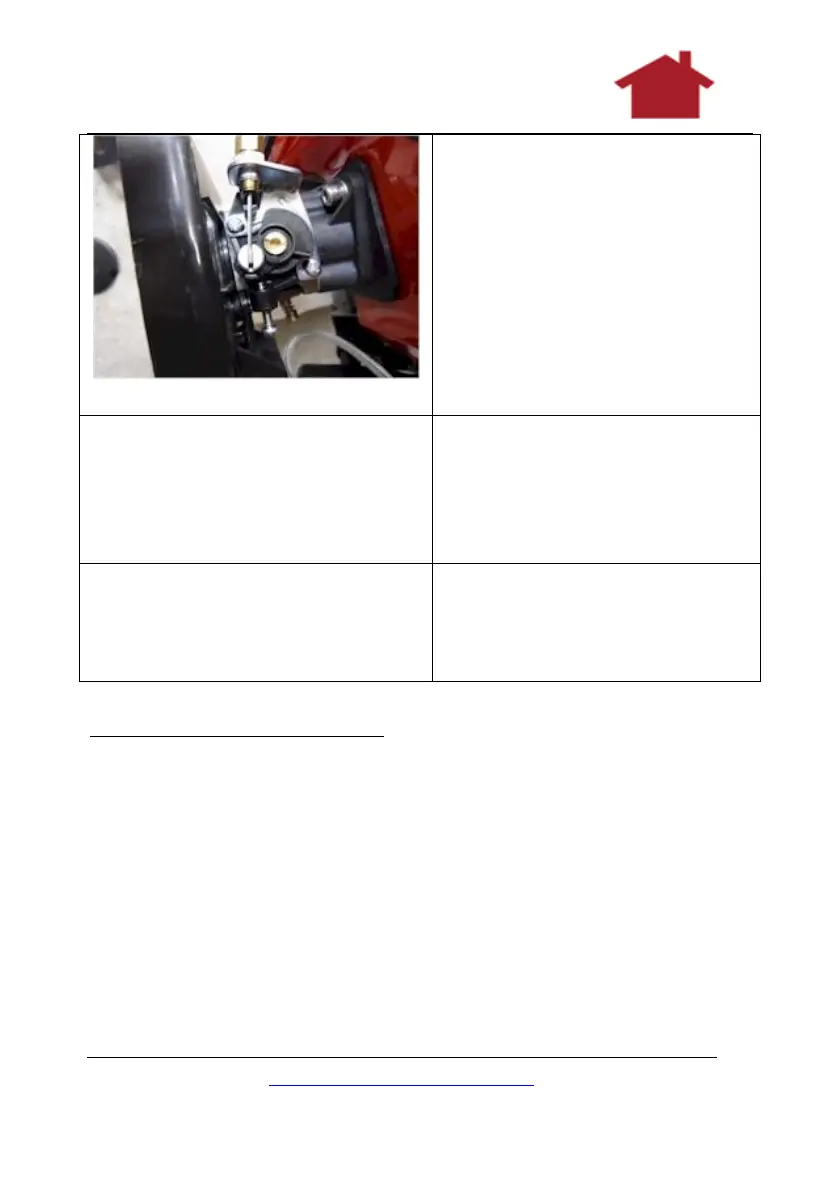

Figure 18 The Cable Attached
There are now 2 red and 2
black cables, these should be
attached to their counterpart
via push fittings. Black to
black, red to red. This diagram
shows the cable fitted
correctly with the lug sitting
inside the screw.
You should now have the 1
throttle cable and the 2
electrical wires fitted.
Reattach the filter housing.
Attach the throttle cables
securely along the shaft using
the cable ties from the tool
kit.
Attaching the Carrying Strap
1. Hook the carrying strap into the suspension eye.
2. Adjust the length of the carrying strap for convenient
working with the machine. If required, the suspension eye
can be moved by loosening the fixing screw.
