2 x Phillips screws
1 x small Philips screwdriver

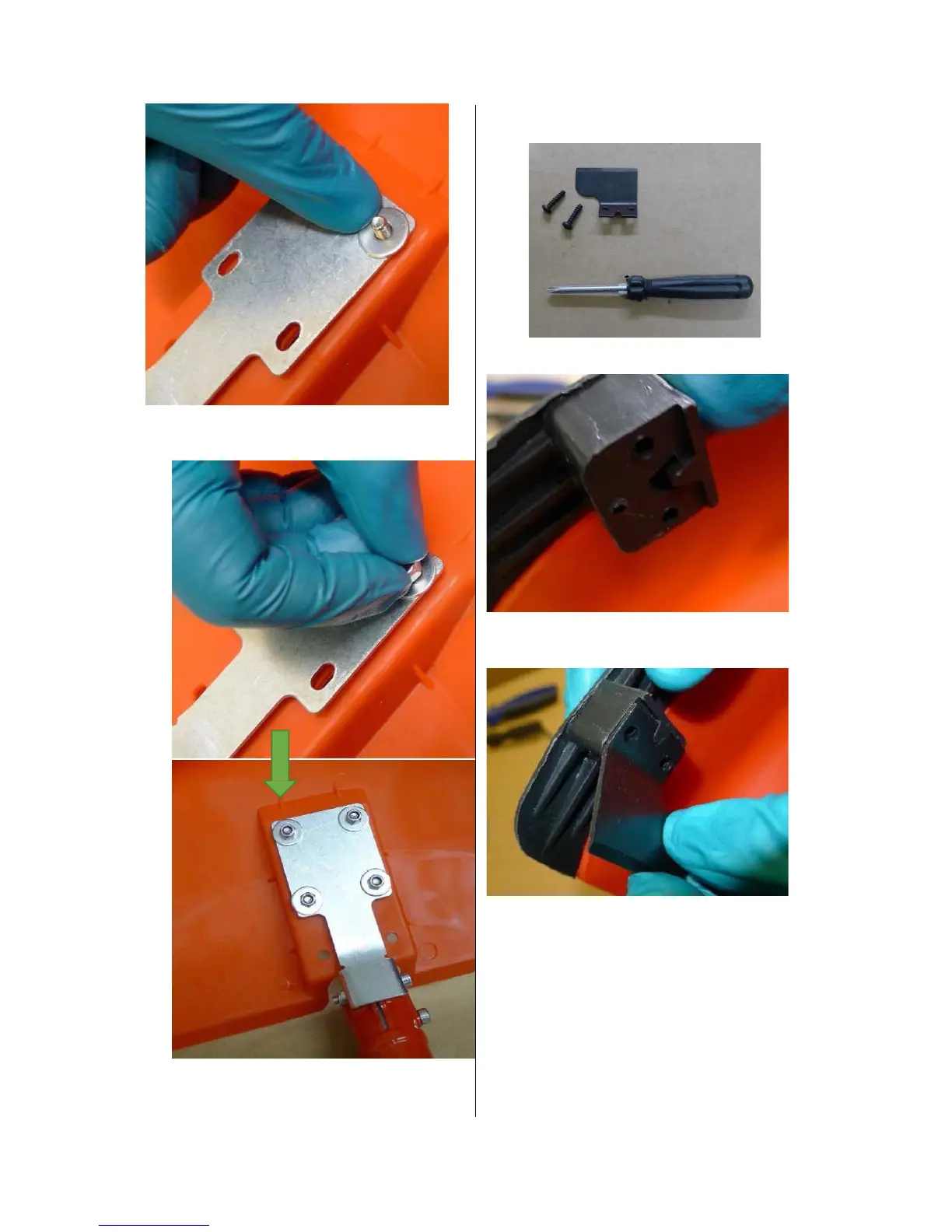

• Locate the mounting block on the guard.
• Place the line cutting blade up to the
mounting block as shown.
• Fix the blade to the mounting block using
the two Philips screws.
• Fasten them both together using the Allen
key, locking nuts and washers.
Now that the guard is attached, we will now fix
the
line cutter in place. To do this you will need –
1 x Line cutter
9
