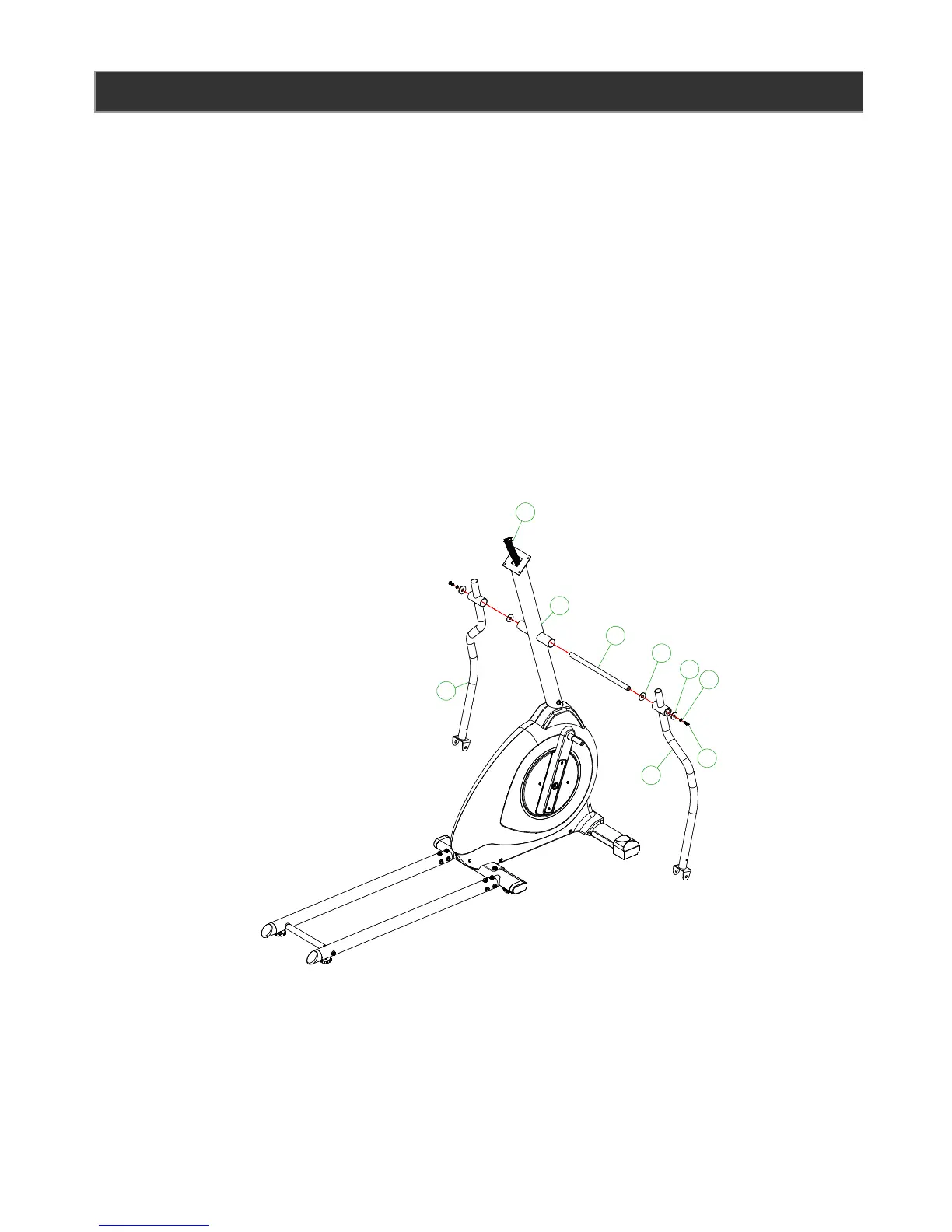

Step 3:
A. Insert the rotation rod (14) into the handlebar post (49).
B. Slide 1 x Ф19.5*38*0.5mm (15) on to each side of the rotation rod (14) prior to attaching
the lower handlebars (44L & 44R)
C. Attach the lower handlebars (44L) and (44R) onto the rotation rod (14) Note: Be certain
the correct handlebars are attached to the correct side of the post before
securing.
D. Secure the lower handlebars, using 2x M8*20 Locking Allen bolt (9), 2 x Ф8 spring
washers (20), and 2 x Ф8.5*36*3tmm flat washer (19).
E. Tighten all bolts now
