TruPace E 200 - Step 4: Pedal Arm Installation

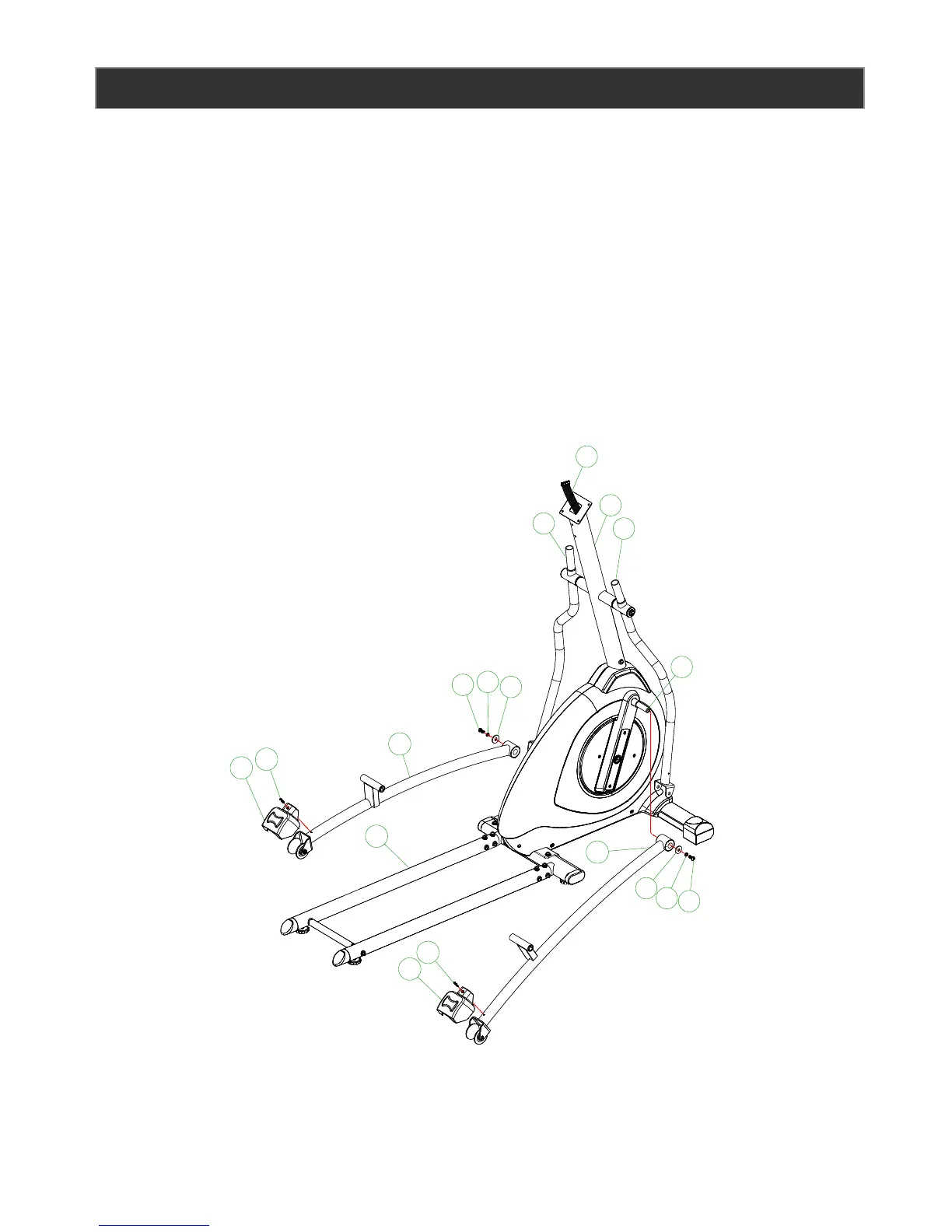

Step 4:
A. Attach the left pedal arm (71L) the left side crank (60)
B. Secure the left pedal arm to the crank by using 1 x M8*20 Locking Allen bolt (9), 1 x Ф8
spring washers (20), and 1 x Ф8.5*36*3tmm flat washer (19).
C. Attach the decorative cover (92) on to the left pedal arm by using 1 x M5*15 round head
screw (36)
D. Place the left pedal arm (71L) on to the slider tube (104).
E. Repeat the process above for the right side.
F. Tighten all bolts now.
