12 1705391 Aluminum Clamp Assembly
13 ___*___ Side Rail, Passenger’s Side
14 ___*___ Side Rail, Driver’s Side
15 1705851 SIDE RAIL END PLUG ASSY_RH
16 1705852 SIDE RAIL END PLUG ASSY_LH
17 1705415 Cap Screw 10-24 X 1/2
18 1703762 Hex Nut 10-24
19 * Latch System
20 1705629 Self Drill Screw 6-20 X 3/8
21 1118225 Cable Cover 3.75”
* Please specify length or make and model of vehicle.
22 ___*___ Cable Cover
23 1115822 Cable Guard
24 1705826 Rear Header End Plug (Passenger)
25 1705825 Rear Header End Plug (Driver)
26 1704689 Machine Screw 1/4-20 X 9/16
27 ___*___ Passenger Security Latch Assy
28 ___*___ Driver Security Latch Assy
29 1705929 Latch Cover
30 1118243 Side Rail End Plug_RH Foam Seal
31 1118244 Side Rail End Plug_LH Foam Seal
2
3

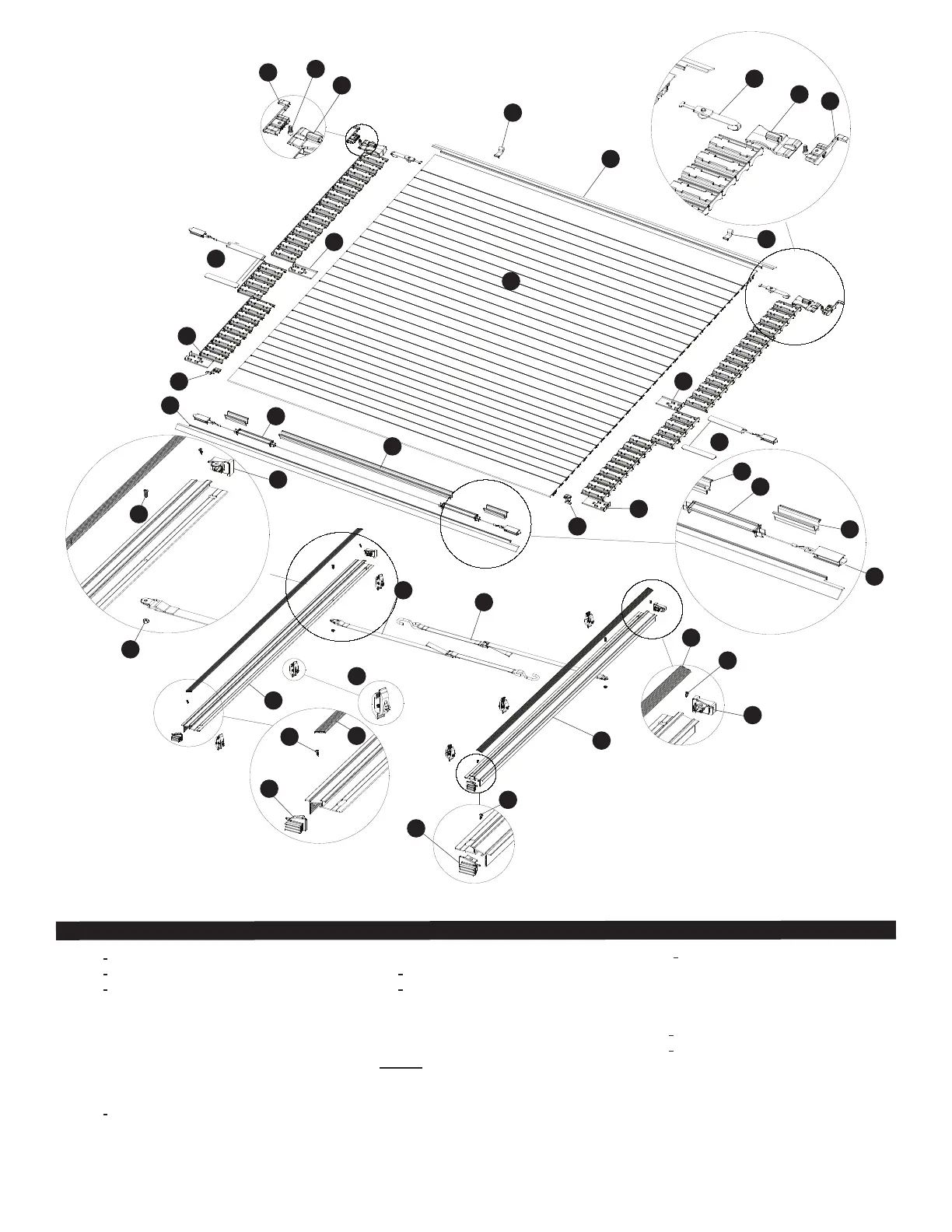

HARD ROLL-UP TONNEAU COVER
REPLACEMENT PARTS
4
5
6
6
1 ___*___ Sentry/Sentry CT Replacement Cover
2 ___*___ Header Seal, Front
3 ___*___ Header Seal, Rear
4 1705828 Front Header End Plug (Passenger)
5 1705829 Front Header End Plug (Driver)
6 1704707 Header Guide
7 1117892 Retainer Hook Strap (Passenger)
8 1117893 Retainer Hook Strap (Driver)
9 1117594 Header Guide Retainer
10 1705806 Extruded Retainer Loop
11 ___*___ Hook and Loop Fasteners
8
7
9
10
10
11
12
13
14
15
16
31
30
17
18
19
29
21
22
23
20
24
25
26
11
20
28
23
20
29
29
29
27
22
1
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2022
Part# 1118240 Rev. D 8.18.22
