TSI Instruments Flowmaster 250 User Manual

Version 1.7 (June 2017)
TSI Flowmeters Ltd.
GENERAL2.1
Weight 12.0 kg including battery pack
& instantaneous adaptors
Dimensions 390 (L) x 240 (W)
x 210 (H) mm
Power Internal Battery Pack. DC
12V @ 250 mA
Case Material Corrosion resistant LM25
aluminium
Operating Temp. -10°C ~ +50°C
Adaptors 2.5” BSPM or BS
Instantaneous (4.0” BSPM for
Flowmaster 400)
2.5” NST for USA and other
adaptors available on request
Colour Firemen Red & anodised
aluminium
Sensor Type Electromagnetic
Range 30 - 3,000 lpm carriage return
By changing the sensor
control pcb, range can be
extended to 5,000 lpm
Resolution 50 ~ 750 l/min ± 15 l/min
750 l/min ~ ±2%
Standard Functions Flow reading
Totaliser reading
Casing Material Corrosion resistant ADC6-12
(JIS) aluminium (anodised)
Pressure rating 49 bar
Digital LCD display gauge
• 4 digits
• 17.6mm high digits
• Analog bar graph
• Internal backlighting
Type Bourdon Tube
Range 0 ~ 10 bar, ±1%. (0-7, 0-15,
0-20, 0-25 bar also supplied)
Dial Analog type, 60 mm dial
Battery Type Nickel-metal hydride, NiMH
Rated Capacity 2.2 Ah (10 hours continuous
operation)
Recharging Mains operated recharger is
supplied
In-car charger Available as separate item
SPECIFICATION
2
6
FLOWMETER2.2
PRESSURE GAUGE2.3
BATTERY PACK2.4
FLOWMASTER 4002.5
Weight 15.0 kg including battery pack
and 100mm ttings
Dimensions 510 (L) x 240 (W)
x 210 (H) mm
Streamlined Pressure loss is minimal
thanks to the use of tapered
adaptors from 65mm bore to
100mm adaptors
Adaptors 100mm French adaptors
tted onto 100mm BSPM
Other adaptors available on
request
Other specications as per Flowmaster 250

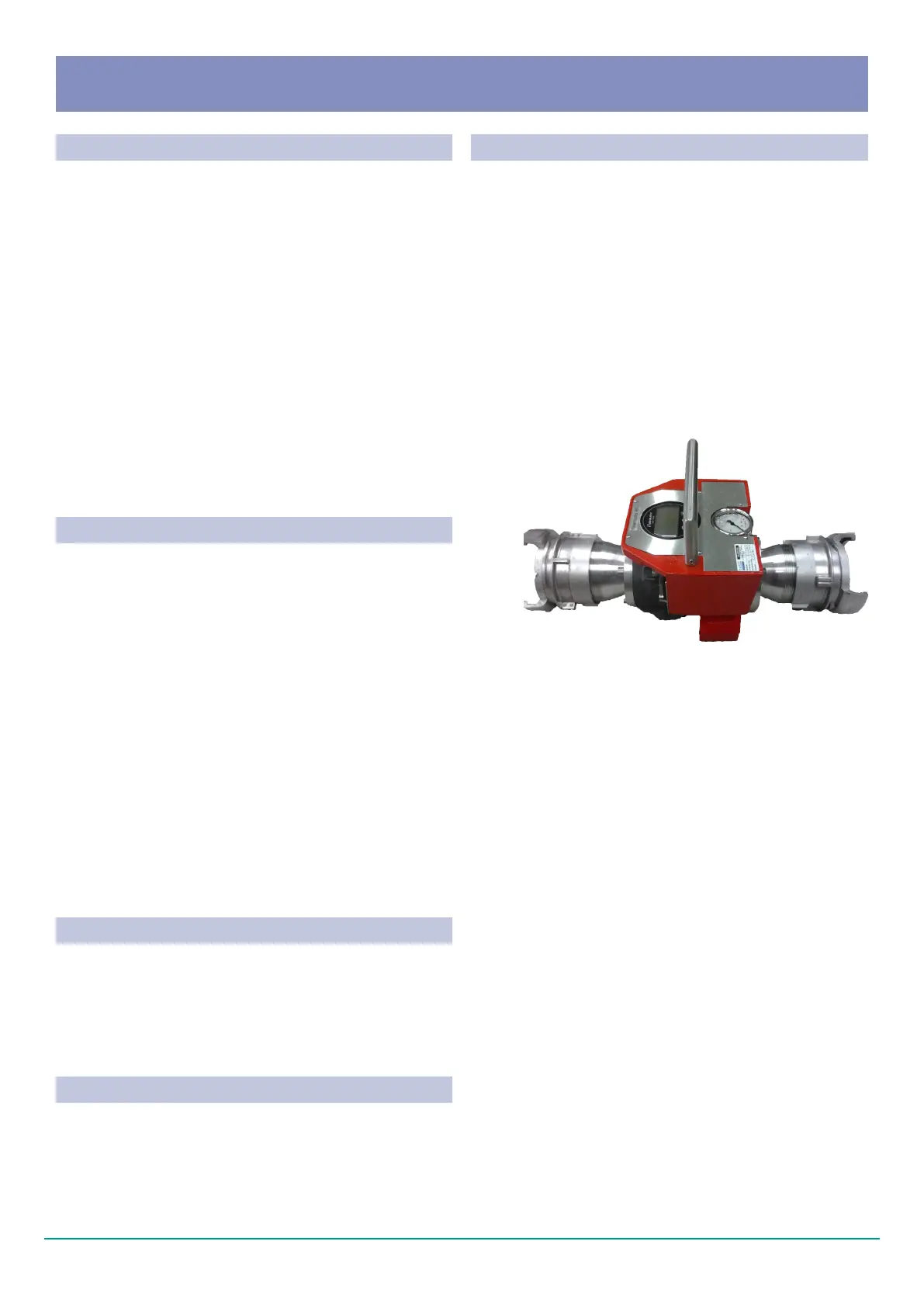

Fig. 2.1 Flowmaster 400

TSI Instruments Flowmaster 250 Specifications

General

Brand	TSI Instruments
Model	Flowmaster 250
Category	Measuring Instruments
Language	English
