NOTE: A 500Ω resistor should be installed across the input at the Model RPM20-CC.

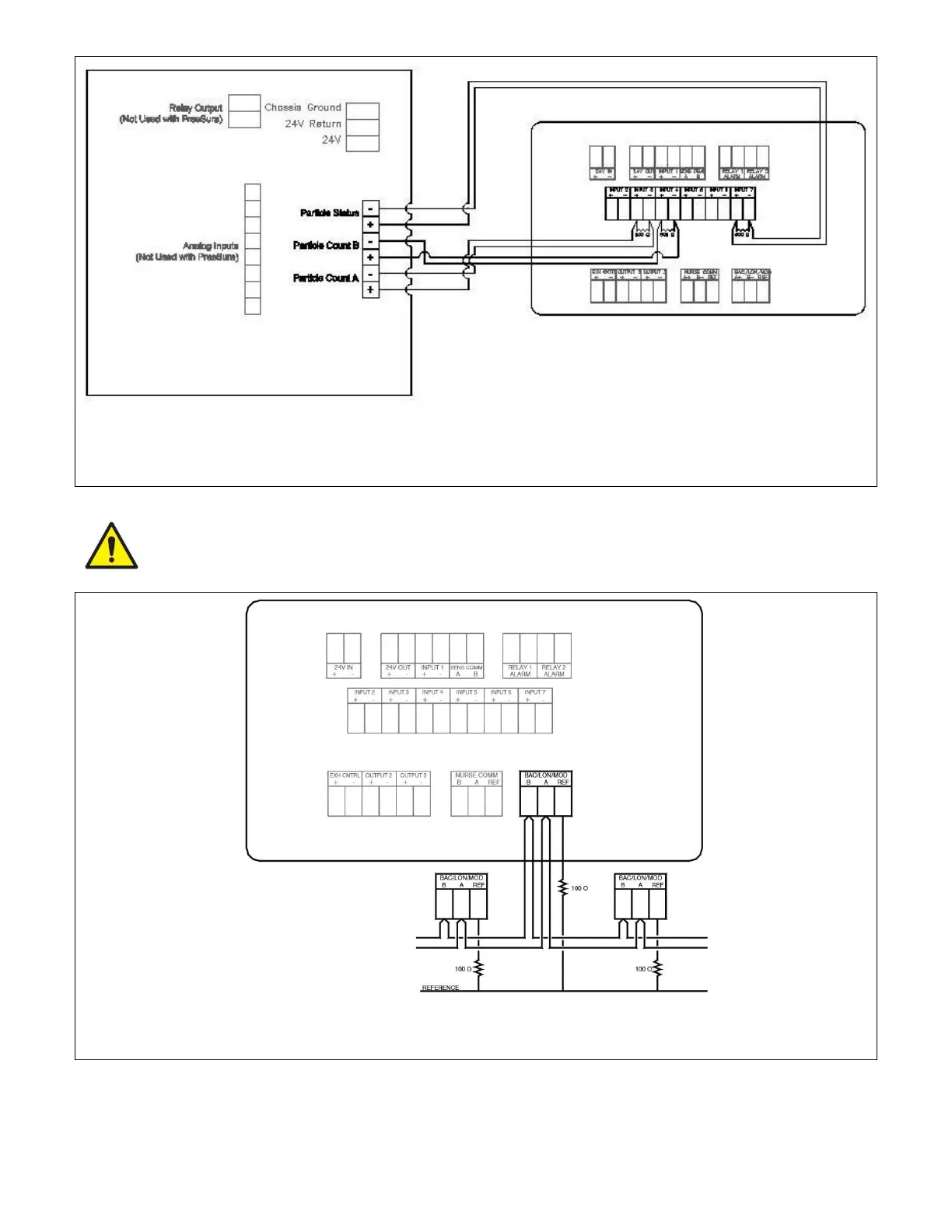

Figure 21. Remote with Pump Particle Counter wiring to Model RPM20-CC.

NOTE: Model RPM10 and Model RPM20 do not support Remote with Pump Particle Counter.

NOTE: A 120Ω resistor should be installed on both ends of the RS-485 daisy-chain.

Figure 22. Optional Modbus and BACnet MS/TP Communications Wiring to Model RPM10 / RPM20
