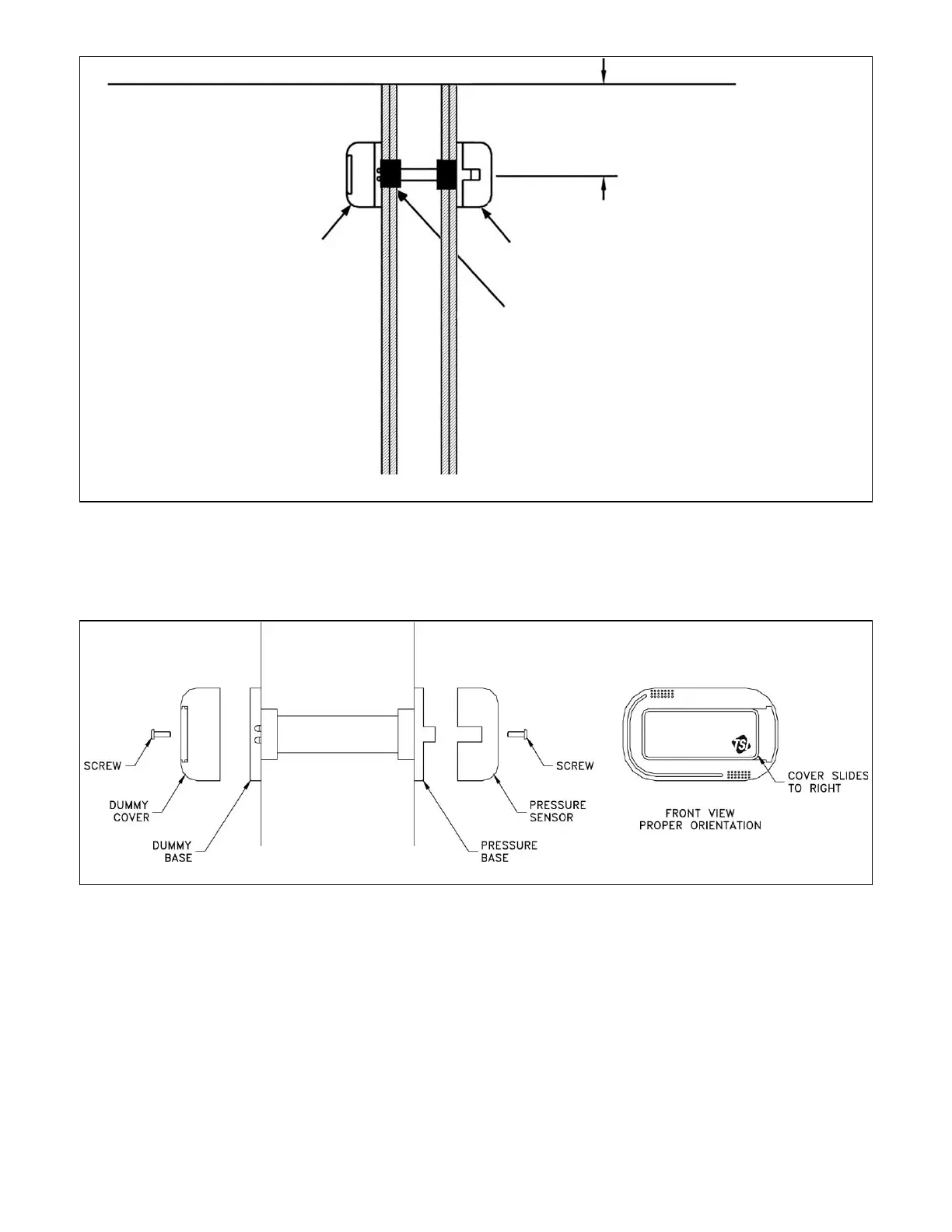

Figure 3: Cutaway View of Mounted Pressure Sensor

Figure 4: Pressure Sensor Mounting

CEILING

DUMMY

COVER

CONTROLLED SPACE

REFERENCE SPACE

(TYPICALLY A HALLWAY)

BLACK FIRE SEALANT RING

MUST INSERT INTO

2 ¼” HOLE

PRESSURE

SENSOR

½ THE DISTANCE

BETWEEN CEILING

& DOOR JAMB

WALL
