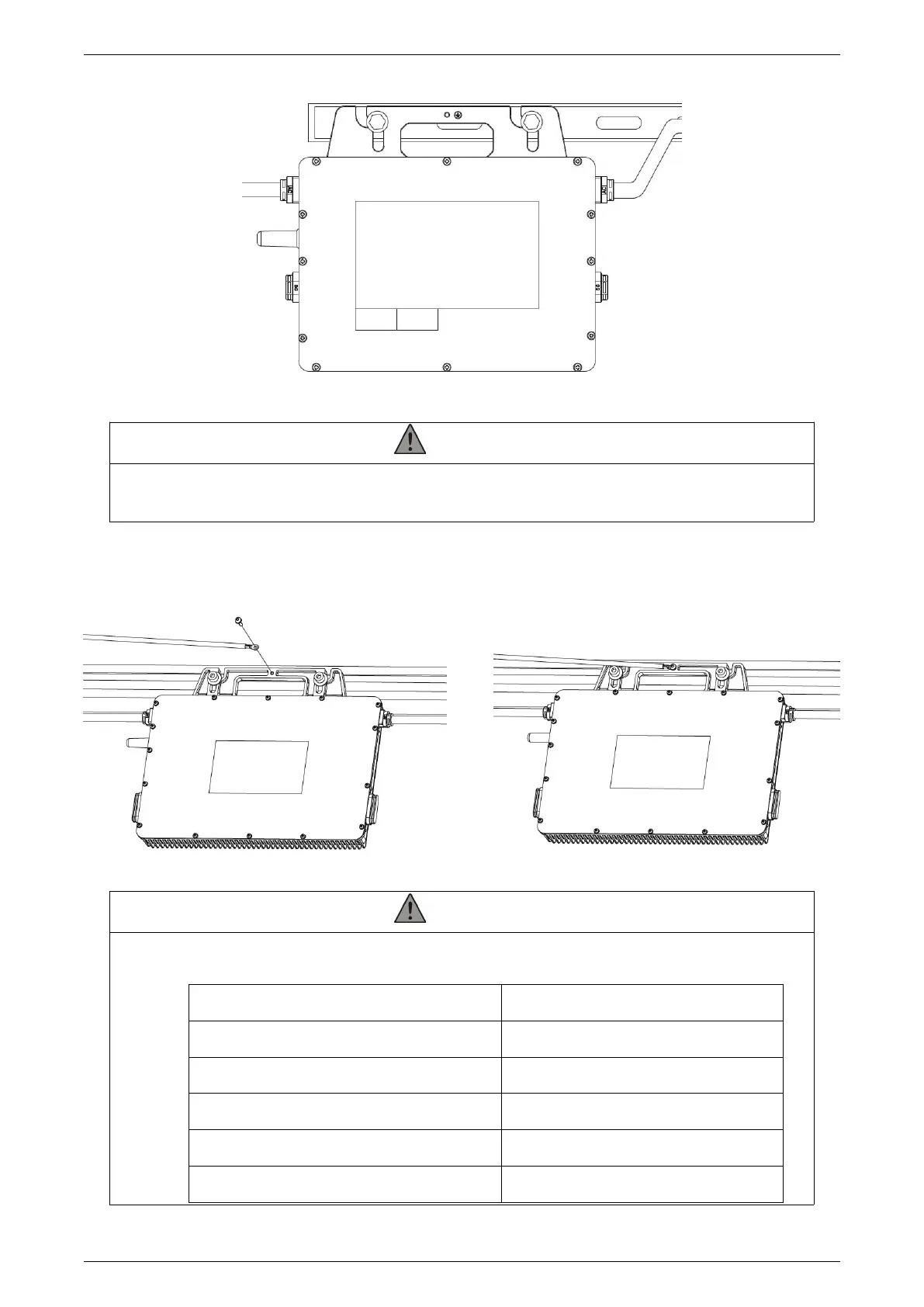

Step 2. Connect the ground cable
WARNING
·Ensure that all the microinverters are well grounded.
·Use ɸ6 screw for the ground port.
Connect the ground cable to the enclosure of the microinverter.
Step 3. Connect the AC cable of two microinverters
WARNING
·According to the max current of the AC cables, there is a max installation quantity for the
micro-inverter in each cable section.
Model
Quantities for each cable section
TSOL-MS1800/MS2000
2
TSOL-MS1600/MS2000(1500)
3
TSOL-MS800/800-D
5
TSOL-MS700/700-D
6
TSOL-MS600/MS600-D
7
