V1.0

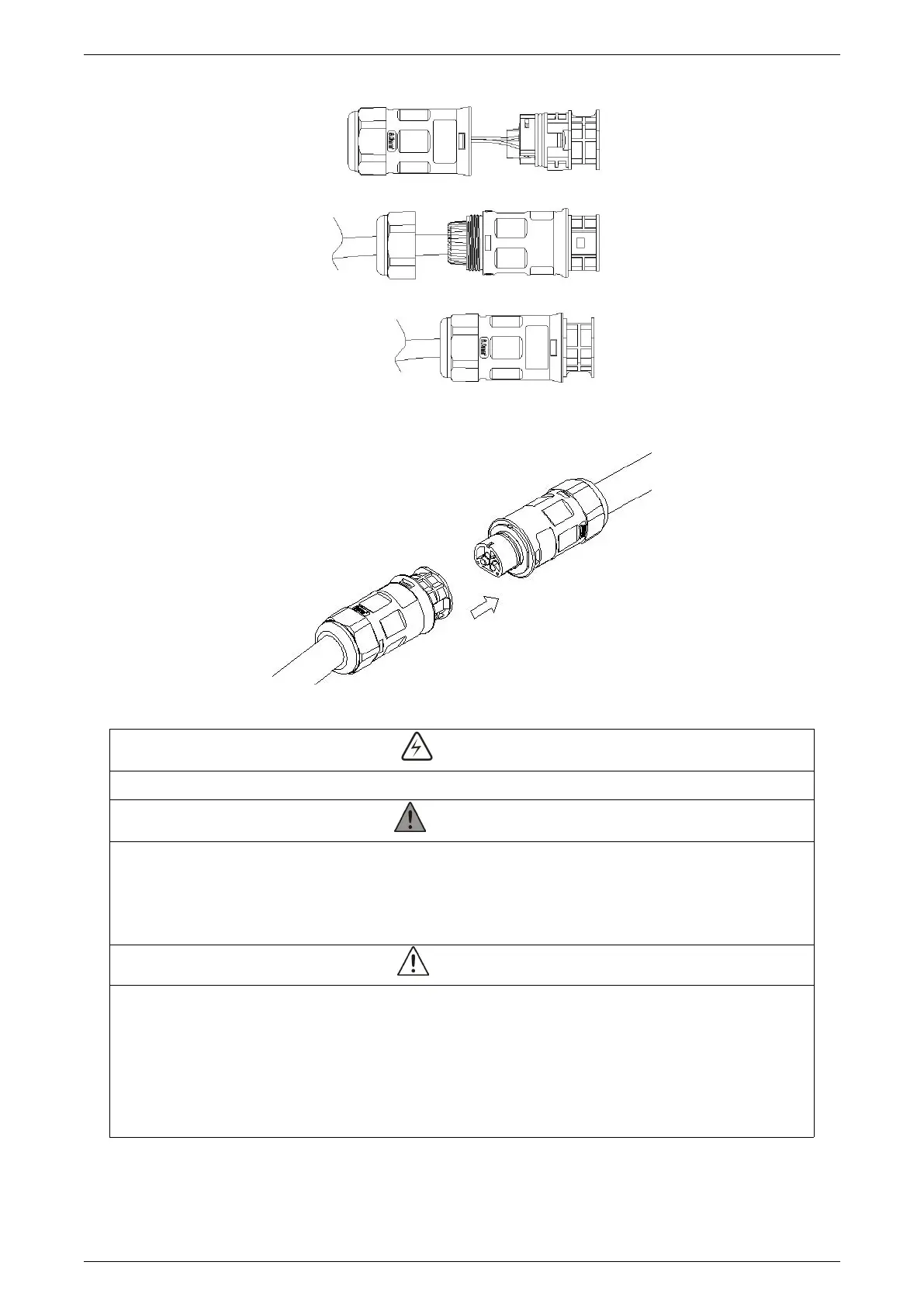

Plug the AC connector into the microinverter and connect the AC cable to the AC distribution box.
Step 5. Connect the DC cable
·When the photovoltaic array is exposed to light, it provides a DC voltage to the inverter.
·Ensure that all DC cables are correctly wired and that none of the wires are pinched or
damaged.
·The maximum open circuit voltage of the PV module must not exceed the specified
maximum input DC voltage of the TSOL microinverter.
·If the DC cable is too short for installation, use a DC Extension Cable to connect PV
modules to the microinverter.
·Use MC4 compatible DC connectors in the inverter side of the DC extension cable, or get
the DC connectors from TSUN.
·Contact PV module manufacturers for the requirements of the DC connectors in the module
side of DC extension cable.
Install the PV modules and connect the DC cable to the microinverter.
